2023 Kawasaki Vulcan® S CafÉ Rear Brake Diagram

← All diagrams

Find the part on the Rear Brake diagram for your 2023 Kawasaki Vulcan® S CafÉ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

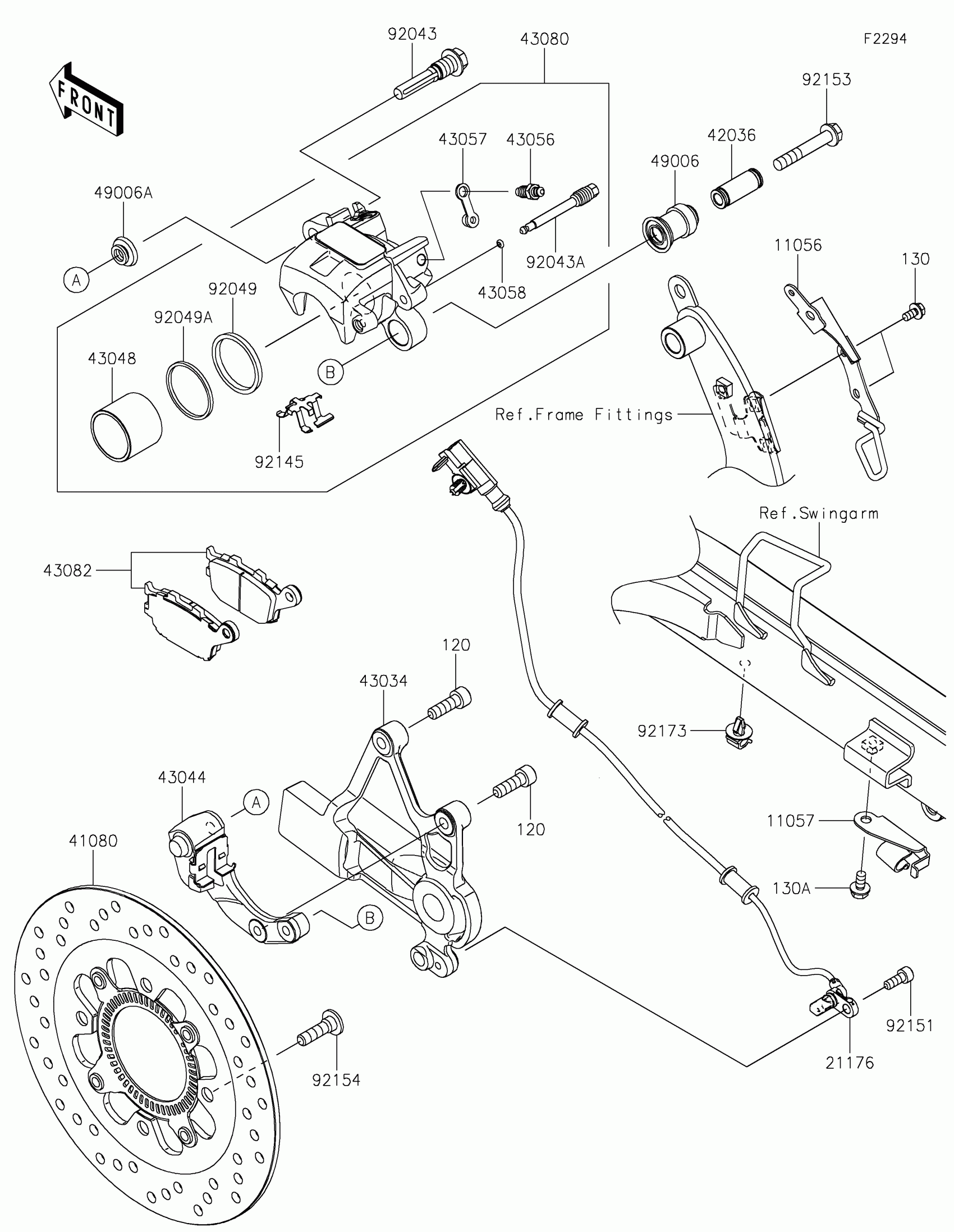

2023 Kawasaki Vulcan® S CafÉ Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,SENSOR

11056-4199

1
Out of stock

11056A

BRACKET,SWINGARM,LWR

11056-4200

1
Out of stock

21176

SENSOR,RR WHEEL SPEED

21176-0781

1
Out of stock

41080

DISC,RR,W/R,BLACK

41080-0628-11H

1
Out of stock

42036

SLEEVE

42036-0050

1
Out of stock

43034

HOLDER-BRAKE,RR

43034-0137

1
Out of stock

43044

HOLDER-COMP-CALIPER

43044-0080

1
Out of stock

43048

PISTON-CALIPER

43048-0008

1
Out of stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43058

RING,STOPPER

43058-1100

1
Out of stock

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0156-DJ

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0155

1
Out of stock

49006

BOOT

49006-0058

1
Out of stock

49006A

BOOT,CALIPER

49006-1242

1
Out of stock

92043

PIN

92043-0137

1
Out of stock

92043A

PIN,HANGER

92043-0820

1
Out of stock

92049

SEAL-OIL

92049-1449

1
Out of stock

92049A

SEAL-OIL

92049-1450

1
Out of stock

92145

SPRING,PAD

92145-0493

1
Out of stock

92153

BOLT,SOCKET,8X16

92153-0327

1
Out of stock

92153A

BOLT,FLANGED

92153-1826

1
Out of stock

92154

BOLT,SOCKET,8X30

92154-0844

1
Out of stock

92173

CLAMP,CABLE CLIP

92173-1022

1
Out of stock

120

BOLT-SOCKET,8X25

120CB0825

1
Out of stock

130

BOLT-FLANGED,5X10

130BA0510

1
Out of stock

130A

BOLT-FLANGED,6X12

130BA0612

1
Out of stock
