2023 Kawasaki Vulcan® S CafÉ Front Master Cylinder Diagram

← All diagrams

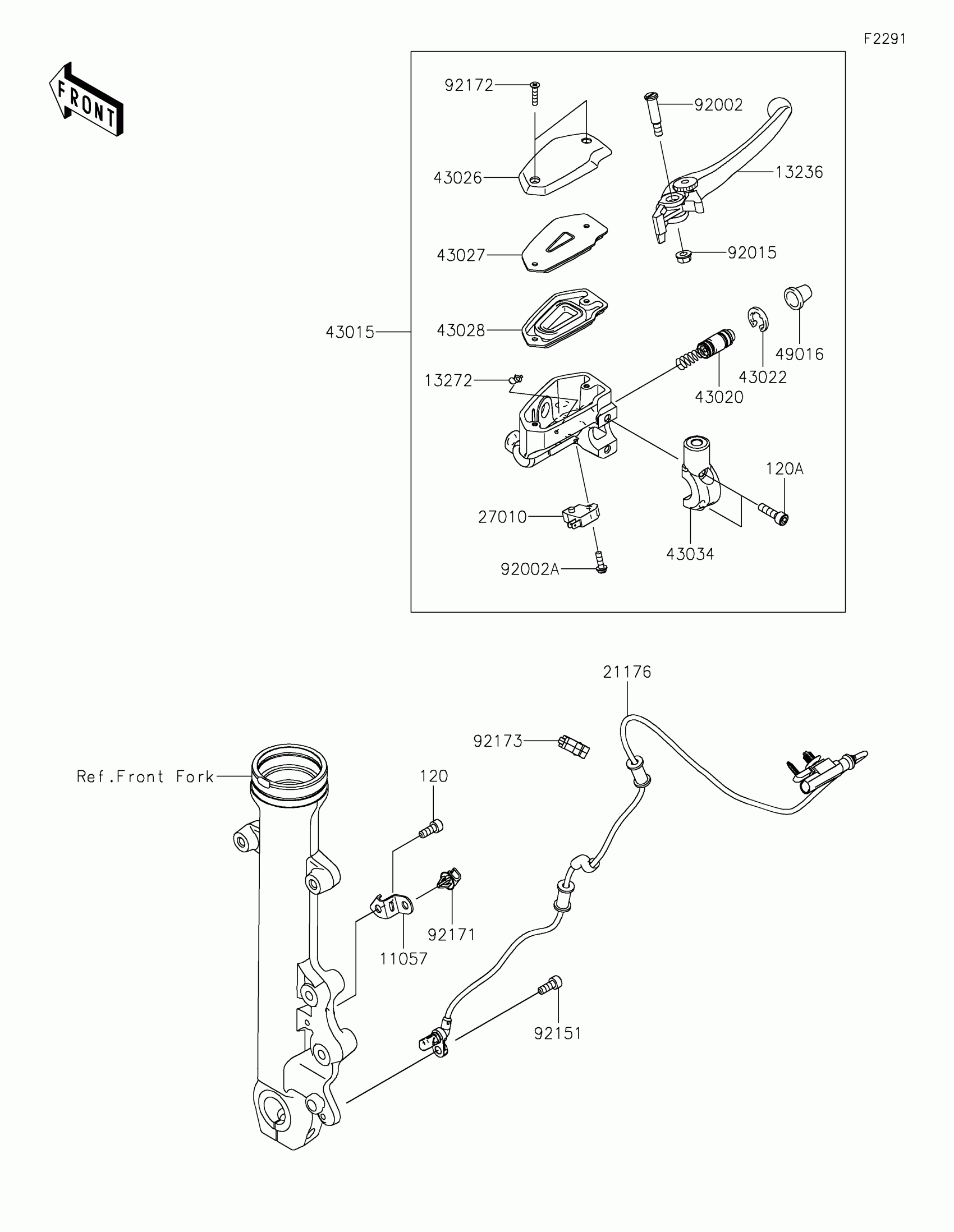

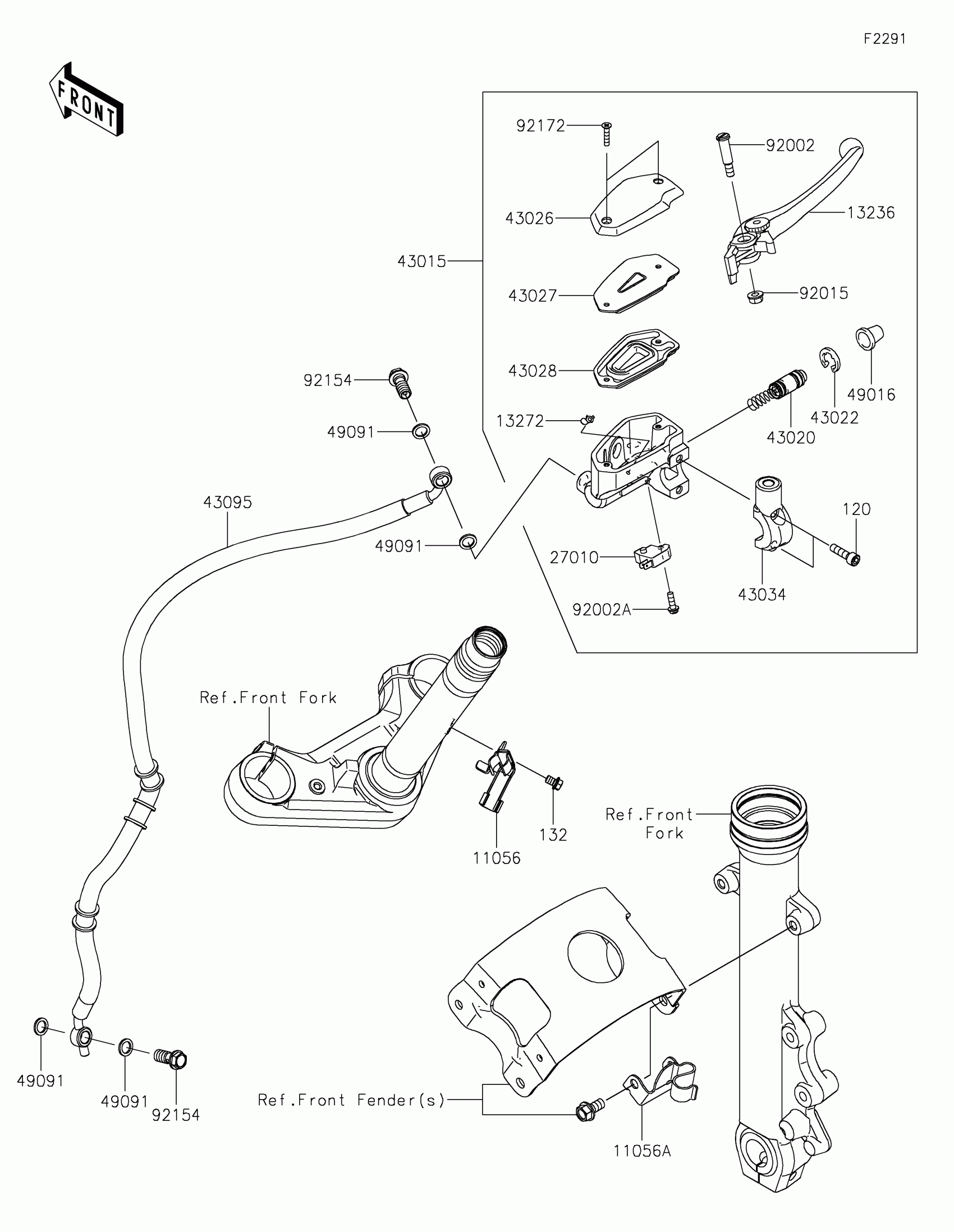

Find the part on the Front Master Cylinder diagram for your 2023 Kawasaki Vulcan® S CafÉ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki Vulcan® S CafÉ Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,FORK UNDER HOLDER

11056-4106

1
Out of stock

11056A

BRACKET,FR FENDER

11056-7694

1
Out of stock

13236

LEVER-COMP,FRONT BRAKE

13236-0140

1
Out of stock

13272

PLATE

13272-0573

1
Out of stock

27010

SWITCH,BRAKE

27010-0762

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0606

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1095

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-0019

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-0008

1
Out of stock

43028

DIAPHRAGM

43028-0015

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-0049

1
Out of stock

43095

HOSE-BRAKE,FR,974MM

43095-0833

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92002

BOLT,LEVER SET,BLACK

92002-1322

1
Out of stock

92002A

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1
Out of stock

92154

BOLT,FLANGED,10X23

92154-0732

1
Out of stock

92172

SCREW,4X20

92172-0320

1
Out of stock

120

BOLT-SOCKET,6X22

120CB0622

1
Out of stock

132

BOLT-FLANGED-SMALL,6X8

132BB0608

1
Out of stock
