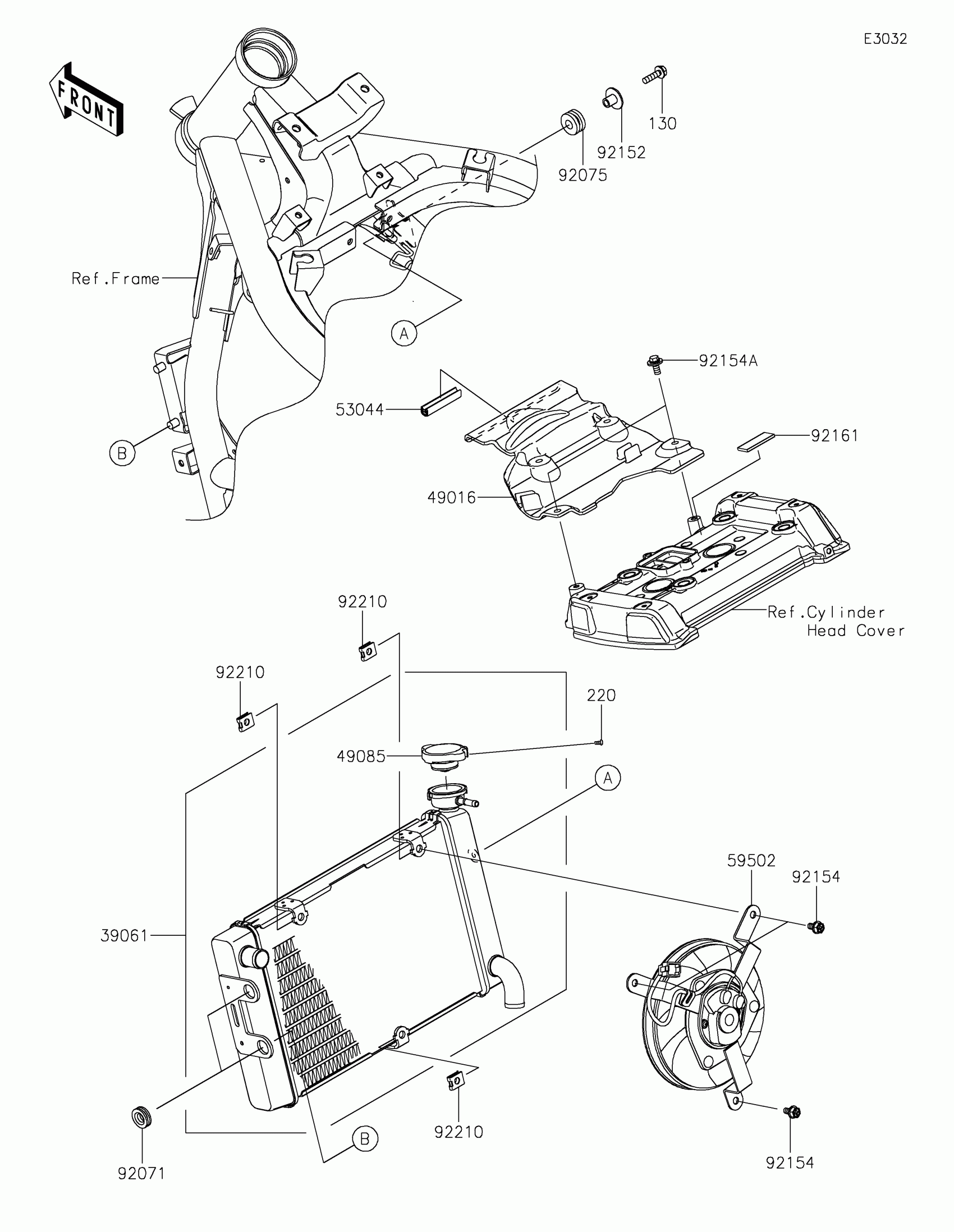

Kawasaki Vulcan® S CAFÉ Radiator Diagram

Description

Price

39061

RADIATOR-ASSY

39061-0796

$856.34

49016

COVER-SEAL

49016-0622

$22.39

49085

CAP-ASSY-PRESSURE

49085-0016

$51.50

53044

TRIM,L=50

53044-1185

$4.66

59502

FAN-ASSY

59502-0613

$360.00

92071

GROMMET

92071-1115

$4.14

92075

DAMPER,10X24X12

92075-1690

$3.81

92152

COLLAR,6.5X10X13.1

92152-0910

$1.44

92154

BOLT

92154-1429

$3.75

92154A

BOLT,FLANGED-WP,6X14

92154-1576

$1.47

92161

DAMPER

92161-0301

$1.81

92210

NUT

92210-1323

$3.19

130

BOLT-FLANGED,6X22

130BA0622

$1.00

220

SCREW-PAN-CROS,3X6

220AB0306

$2.29
