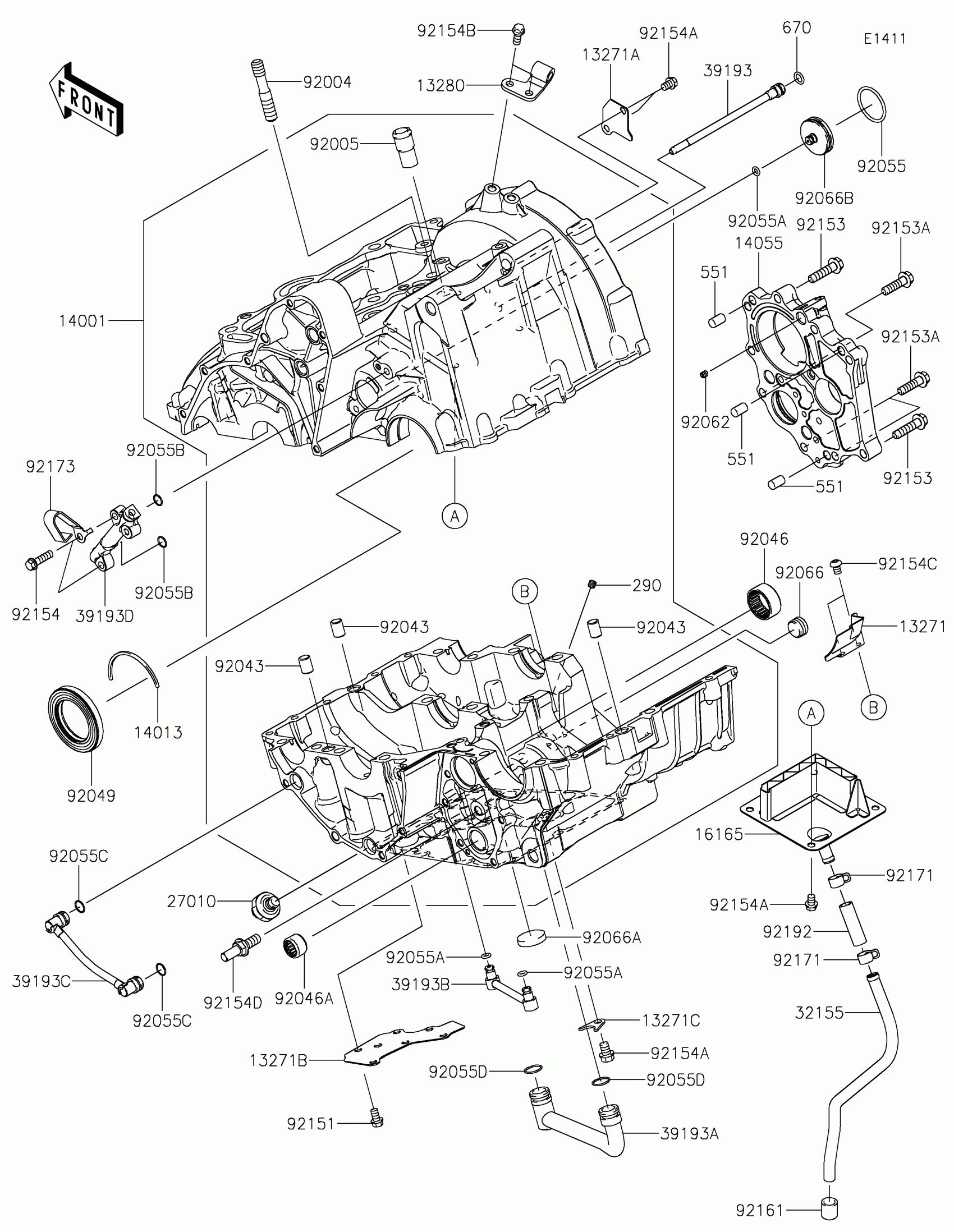

Find the part on the Crankcase diagram for your 2023 Kawasaki Vulcan® S CafÉ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki Vulcan® S CafÉ Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13271

PLATE,OIL SHIELDING

13271-0575

1
Out of stock

13271A

PLATE

13271-0577

1
Out of stock

13271B

PLATE

13271-0584

1
Out of stock

13271C

PLATE,OIL PIPE

13271-1187

1
Out of stock

13280

HOLDER,CLUTCH CABLE

13280-0224

1

$8.39

In stock

14001

SET-CRANKCASE

14001-0715

1

$973.74

In stock

14013

RING-POSITION,T=1.98

14013-1004

1
Out of stock

14055

1

$107.94

In stock

16165

SEPARATOR,BREATHER

16165-0056

1

$62.56

In stock

27010

SWITCH,OIL PRESSURE

27010-1313

1

$36.57

In stock

32155

PIPE,BREATHER

32155-0891

1

$13.47

In stock

39193

PIPE-OIL

39193-0564

1

$29.86

In stock

39193A

PIPE-OIL

39193-0565

1

$50.60

In stock

39193B

PIPE-OIL

39193-0566

1

$25.85

In stock

39193C

PIPE-OIL

39193-0567

1

$50.60

In stock

39193D

PIPE-OIL

39193-0569

1

$68.39

In stock

92004

STUD,10X34.5

92004-0024

1
Out of stock

92005

FITTING,BREATHER

92005-0713

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1

$0.76

In stock

92046

1

$13.32

In stock

92046A

BEARING-NEEDLE,HK1312

92046-1148

1
Out of stock

92049

SEAL-OIL,HTC40628

92049-1501

1
Out of stock

92055

RING-O,29.7X2.4

92055-0006

1
Out of stock

92055A

RING-O,4.8MM

92055-0845

1
Out of stock

92055B

RING-O,8.8MM

92055-0846

1
Out of stock

92055C

RING-O,9.8MM

92055-0847

1
Out of stock

92055D

RING-O,13.8MM

92055-0848

1
Out of stock

92062

NOZZLE,5X6,SILVER

92062-1086

1

$3.69

In stock

92066

PLUG,PT3/8X10

92066-0003

1

$2.66

In stock

92066A

PLUG,25X5

92066-0061

1

$4.92

In stock

92066B

PLUG,INPUT SHAFT

92066-0715

1

$19.19

In stock

92151

1

$1.95

In stock

92153

BOLT,FLANGED,6X30

92153-0962

1
Out of stock

92153A

BOLT,FLANGED,7X26

92153-0963

1
Out of stock

92154

BOLT,FLANGED,6X22

92154-0504

1

$1.66

In stock

92154A

BOLT,FLANGED,6X8

92154-0726

1

$1.66

In stock

92154B

BOLT,FLANGED,6X14

92154-0813

1

$1.93

In stock

92154C

BOLT,SOCKET,6X8

92154-1506

1

$1.47

In stock

92154D

BOLT,8X20

92154-4341

1

$5.39

In stock

92161

DAMPER

92161-0267

1

$3.11

In stock

92171

CLAMP

92171-1053

1

$1.02

In stock

92173

CLAMP

92173-0059

1

$7.47

In stock

92192

TUBE,9X12X38

92192-0225

1
Out of stock

290

1

$5.54

In stock

551

PIN-DOWEL,8X14

551A0814

1

$1.08

In stock

670

O RING,8MM

670D1508

1

$3.43

In stock
