2025 Kawasaki Vulcan S CafÉ Oil Pan Diagram

← All diagrams

Find the part on the Oil Pan diagram for your 2025 Kawasaki Vulcan S CafÉ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

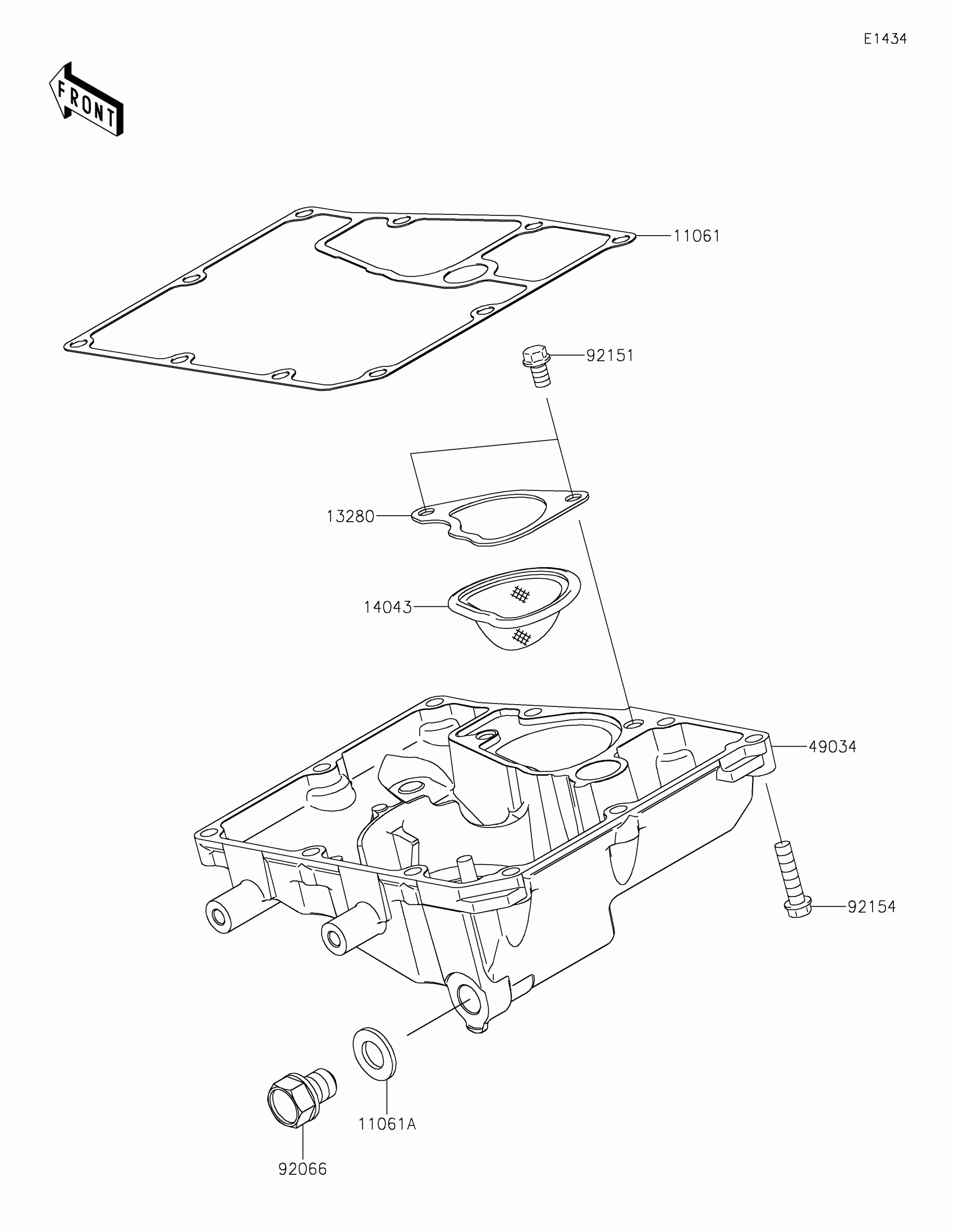

2025 Kawasaki Vulcan S CafÉ Oil Pan Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,OIL PAN

11061-0167

1
Out of stock

11061A

GASKET,12X22X2

11061-0417

1
Out of stock

13280

HOLDER,OIL FILTER

13280-0134

1

$3.66

In stock

14043

1

$10.46

In stock

49034

PAN-OIL

49034-0561

1
Out of stock

92066

PLUG,OIL DRAIN,12X15

92066-0767

1
Out of stock

92151

BOLT,FLANGED-SMALL,6X10

92151-1389

1
Out of stock

92154

BOLT,FLANGED,6X25

92154-0819

1
Out of stock
