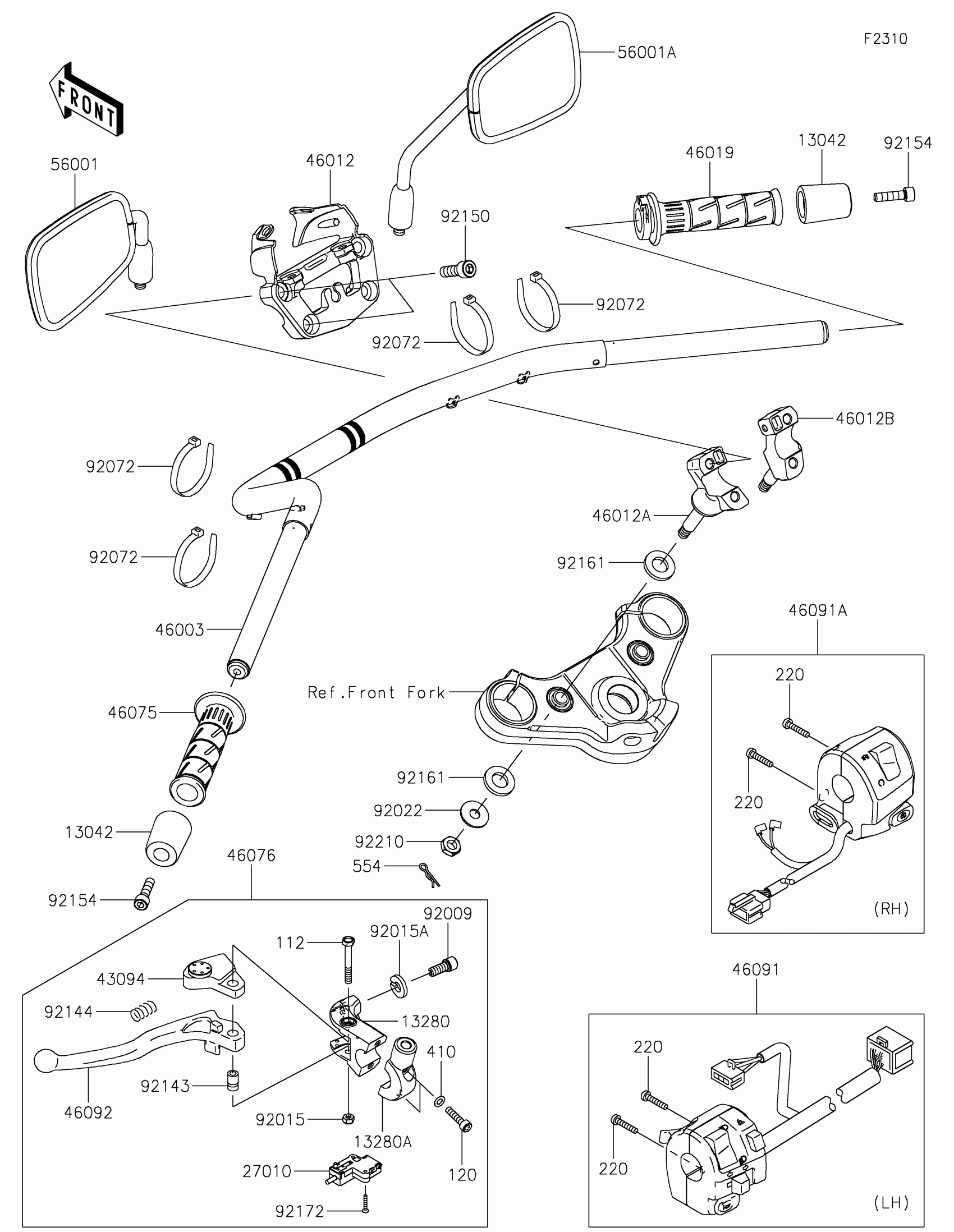

Kawasaki Vulcan S CAFÉ Handlebar Diagram

#

Description
Price

13042

WEIGHT,HANDLE

13042-5002

$51.69

13280

HOLDER,CLUTCH LEVER

13280-0306

$53.68

13280A

HOLDER,CLUTCH LEVER

13280-0307

$36.45

27010

SWITCH,CLUTCH

27010-0729

$32.97

43094

ADJUSTER,CLUTCH LEVER

43094-0556

$39.77

46003

HANDLE,F.S.BLACK

46003-0626-18R

$107.29

46012

HOLDER-HANDLE,UPP,F.S.BLACK

46012-0350-18R

$190.77

46012A

HOLDER-HANDLE,LWR,LH,F.S.BLACK

46012-0351-18R

$95.07

46012B

HOLDER-HANDLE,LWR,RH,F.S.BLACK

46012-0352-18R

$95.07

46019

GRIP-ASSY,THROTTLE

46019-0060

$32.34

46075

GRIP,HANDLE,LH

46075-0564

$20.01

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0137

$110.23

46091

HOUSING-ASSY-CONTROL,LH

46091-0410

$153.00

46091A

HOUSING-ASSY-CONTROL,RH

46091-0551

$181.32

46092

LEVER-GRIP,CLUTCH

46092-0031

$25.63

56001

MIRROR-ASSY,LH

56001-0310

$108.19

56001A

MIRROR-ASSY,RH

56001-0311

$108.19

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$15.16

92015

NUT,LOCK,6MM,BLACK

92015-1191

Unavailable

92015A

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$9.91

92022

WASHER,10.2X28X2

92022-1088

$4.69

92072

BAND,L=140

92072-1293

$7.11

92143

COLLAR

92143-1379

$9.51

92144

SPRING

92144-1467

$6.51

92150

BOLT,SOCKET,10X30

92150-1690

$6.22

92154

BOLT,SOCKET,8X30

92154-0440

$3.74

92161

DAMPER,16.2X30X4

92161-1659

$1.19

92172

SCREW,3X16

92172-0183

$2.15

92210

NUT,LOCK,10MM

92210-0784

$5.98

112

BOLT-UPSET,6X45

112BB0645

$3.74

120

BOLT-SOCKET,6X25

120CB0625

$2.62

220

SCREW-PAN-CROS,5X25

220AB0525

$3.52

410

WASHER-PLAIN-SMALL,6MM

410AB0600

$0.77

554

PIN-SNAP

554DB0800

$1.36
