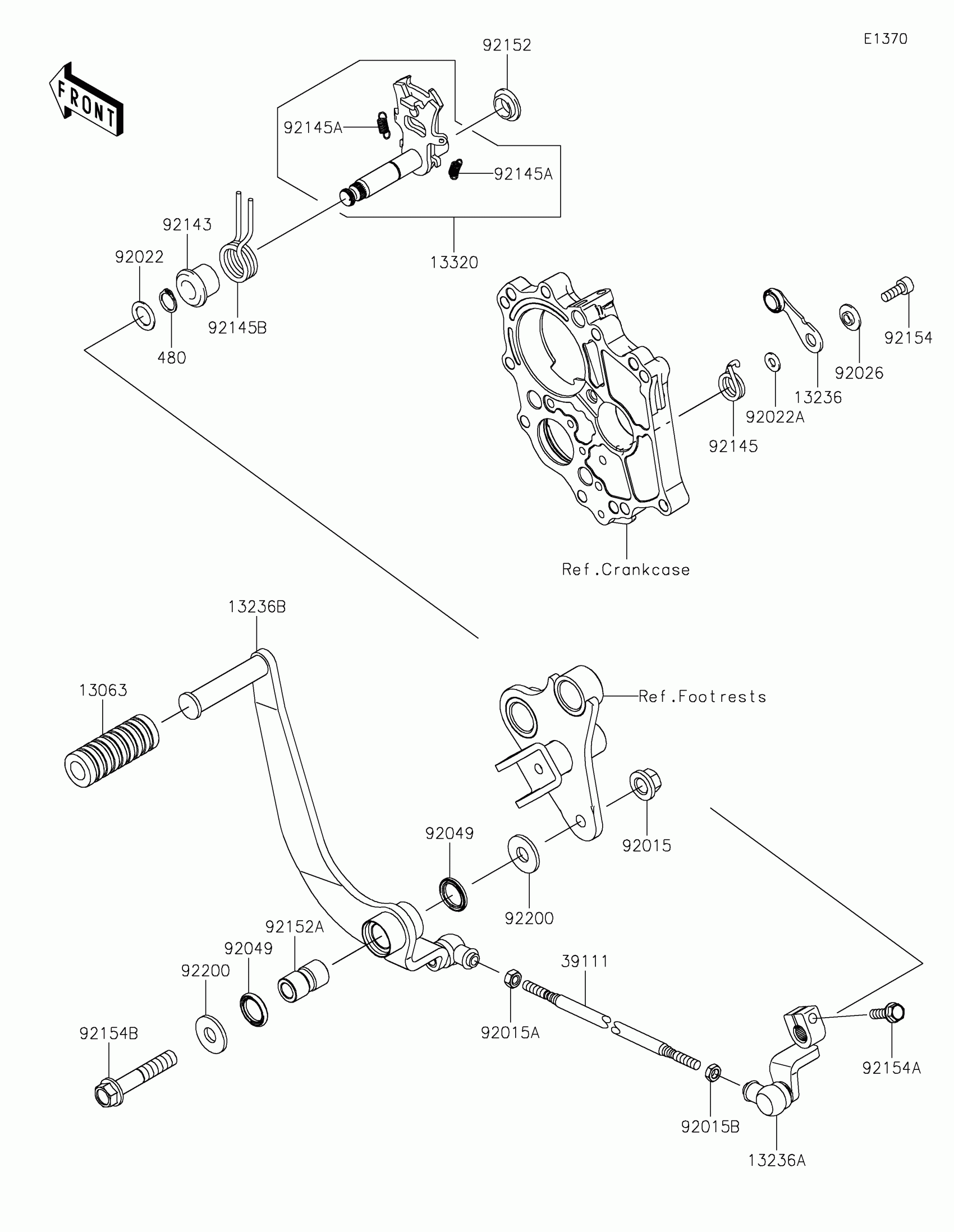

Kawasaki Vulcan® S CAFÉ Gear Change Mechanism Diagram

Description

Price

13063

DAMPER,PEDAL

13063-002

$5.00

13236

LEVER-COMP,POSITION

13236-0170

$9.31

13236A

LEVER-COMP

13236-0756

$105.79

13236B

LEVER-COMP,CHANGE PEDAL

13236-0780

$84.42

13320

LEVER-ASSY,CHANGE SHAFT

13320-0032

$64.50

39111

ROD-TIE,L=205MM

39111-0332

$10.39

92015

NUT,FLANGED,10MM

92015-077

$4.69

92015A

NUT,6MM

92015-1443

$3.92

92015B

NUT,LEFT HANDED,6MM

92015-1444

$4.69

92022

WASHER,13.3X20X1

92022-1496

$3.92

92022A

WASHER,6X12.8X1.2

92022-1827

$4.69

92026

SPACER

92026-1217

$5.52

92049

SEAL-OIL

92049-0093

$5.65

92143

COLLAR,RETURN SPRING

92143-1498

$10.65

92145

SPRING,POSITION

92145-0304

$3.87

92145A

SPRING,5.5X0.7X18

92145-0703

$3.67

92145B

SPRING,CHANGE SHAFT RETURN

92145-1744

$9.43

92152

COLLAR

92152-1075

$4.18

92152A

COLLAR

92152-1883

$16.97

92154

BOLT,SOCKET,6X16

92154-0235

$2.95

92154A

BOLT,FLANGED,6X20

92154-0786

$3.02

92154B

BOLT,FLANGED,10X54

92154-1730

$4.13

92200

WASHER,11X26X2.6

92200-0352

$3.39

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.92
