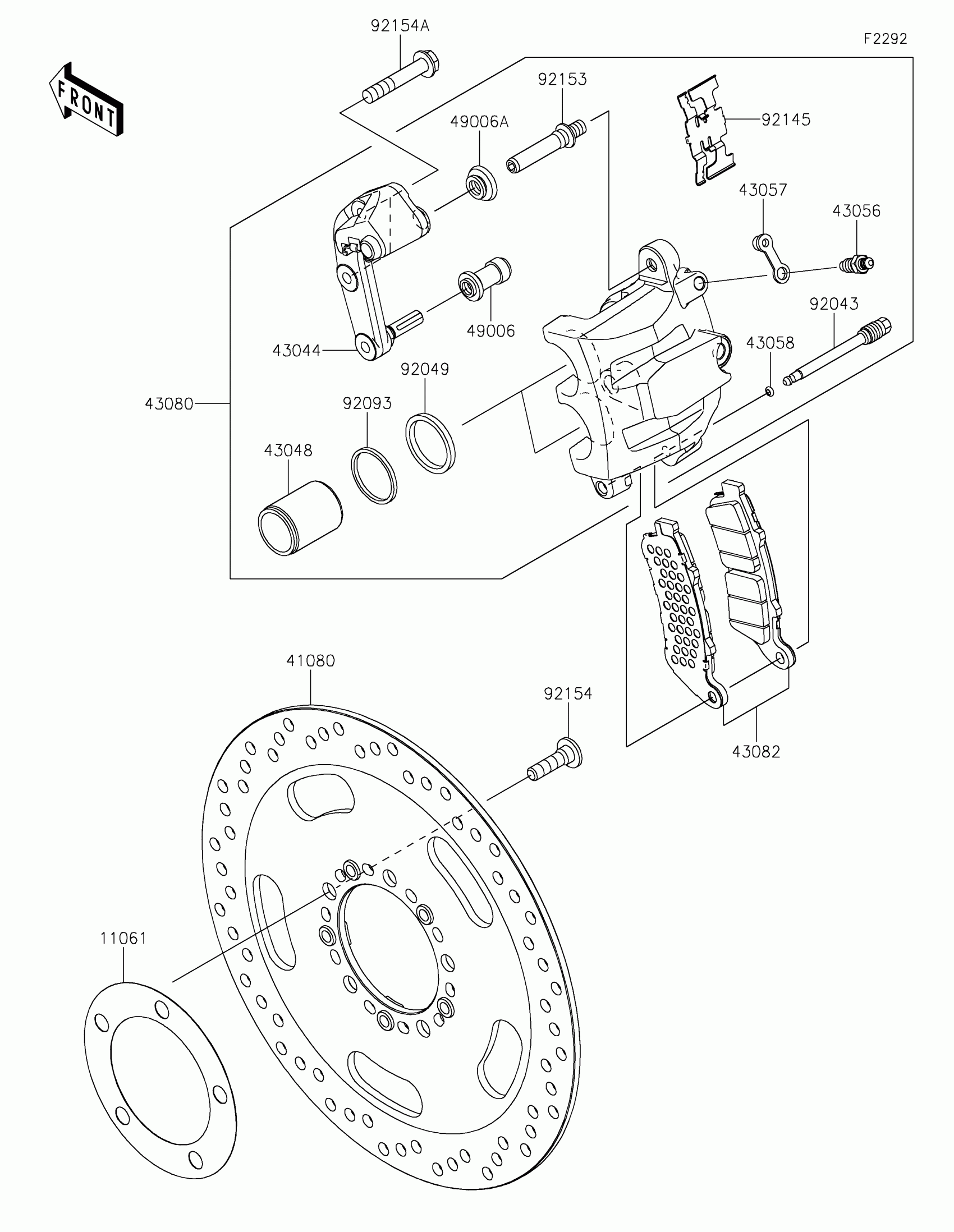

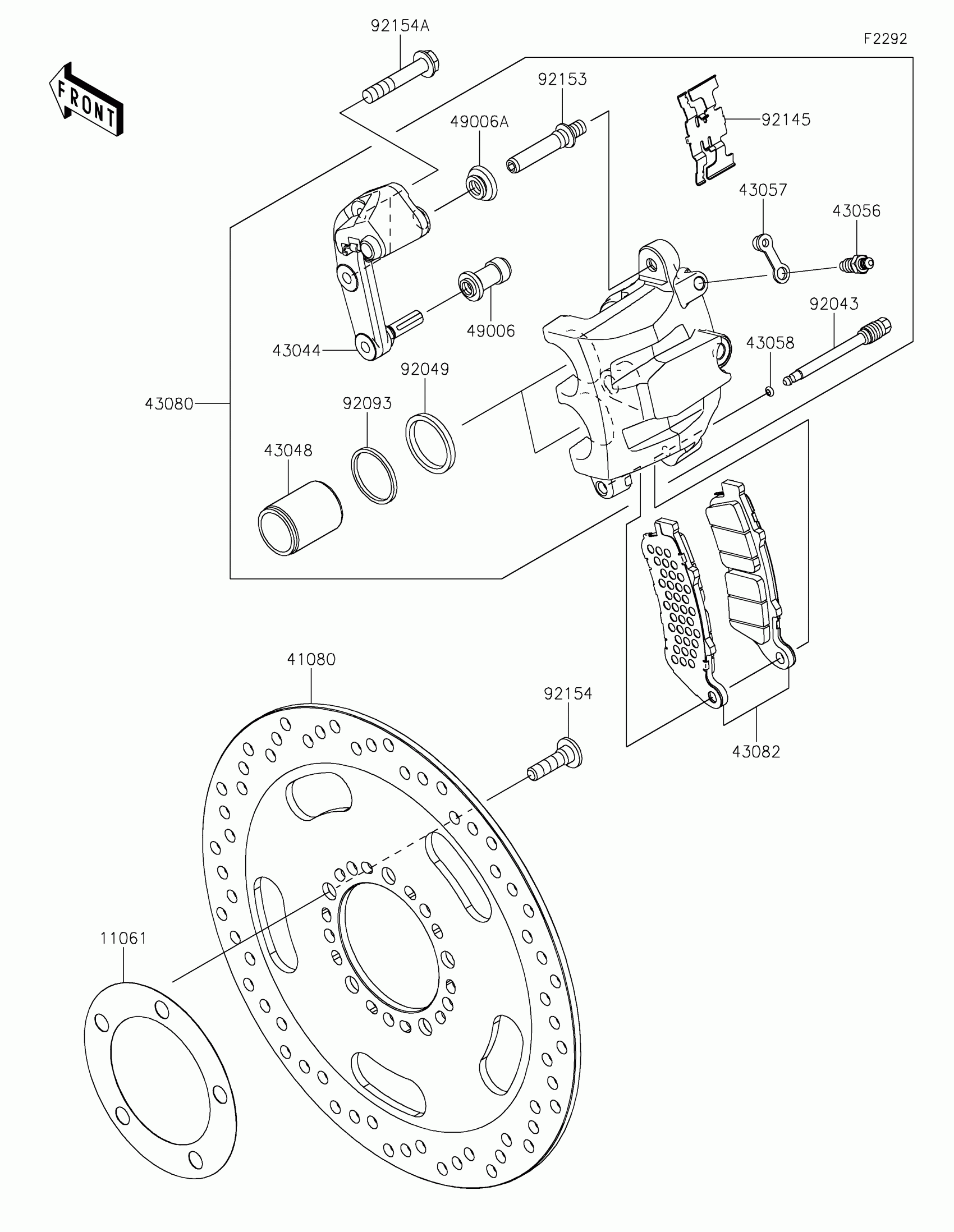

Kawasaki Vulcan S CAFÉ Front Brake Diagram

Description

Price

11061

GASKET,DISC PLATE

11061-0029

$18.20

41080

DISC,FR,W/R,BLACK

41080-0723-11H

$388.47

43044

HOLDER-COMP-CALIPER

43044-0077

$122.86

43048

PISTON-CALIPER

43048-0026

$81.86

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43058

RING,STOPPER

43058-1100

$11.70

43080

CALIPER-SUB-ASSY,FR,BLACK

43080-0153-DJ

$383.75

43082

PAD-ASSY-BRAKE

43082-0169

$83.10

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92043

PIN,HANGER

92043-0824

$7.71

92049

SEAL-OIL,PISTON

92049-1331

$9.28

92093

SEAL,PISTON

92093-1272

$19.45

92145

SPRING,PAD

92145-1632

$11.06

92153

BOLT

92153-1872

$13.60

92154

BOLT,SOCKET,8X30

92154-0844

$4.10

92154A

BOLT,FLANGED,8X45

92154-1706

$3.63
