Description

Price

11056

BRACKET,STEP,FR,RH

11056-7031

$7.32

32085

STOPPER,BANK SENSOR

32085-0770

$25.76

34003

HOLDER-STEP,LH

34003-0141

$154.25

34003A

HOLDER-STEP,RH

34003-0156

$245.62

34027

STEP-ASSY,LH

34027-0012

$81.82

34027A

STEP-ASSY,RH

34027-0013

$81.82

34028

STEP,RUBBER

34028-0338

$14.85

55020

GUARD,STEP HOLDER,RH

55020-1880

$4.65

92033

RING-SNAP,10MM

92033-1166

$3.89

92043

PIN,12X37

92043-1358

$8.10

92092

BUSHING-RUBBER,8.4X20X18

92092-1018-SP

$15.96

92144

SPRING,STEP RETURN

92144-1126

$6.16

92152

COLLAR,8.4X21X19

92152-1952

$5.44

92152A

COLLAR,8.4X21X13

92152-1953

$5.44

92154

BOLT,SOCKET,6X12

92154-0951

$1.63

92161

DAMPER,12.5X21X2

92161-0943

$2.67

92161A

DAMPER,12.5X20X4

92161-0944

$3.02

92161B

DAMPER

92161-1523

$3.72

92161C

DAMPER,21.5X27.5X16

92161-1702

$3.29

92200

WASHER,8.5X19X1

92200-1733

$0.95

120

BOLT-SOCKET,5X12

120CB0512

$1.76

120A

BOLT-SOCKET,6X14

120CB0614

$4.12

130

BOLT-FLANGED,8X40

130BB0840

$4.69

130A

BOLT-FLANGED,8X45

130BB0845

$3.26

132

BOLT-FLANGED-SMALL,8X14

132BB0814

$2.70

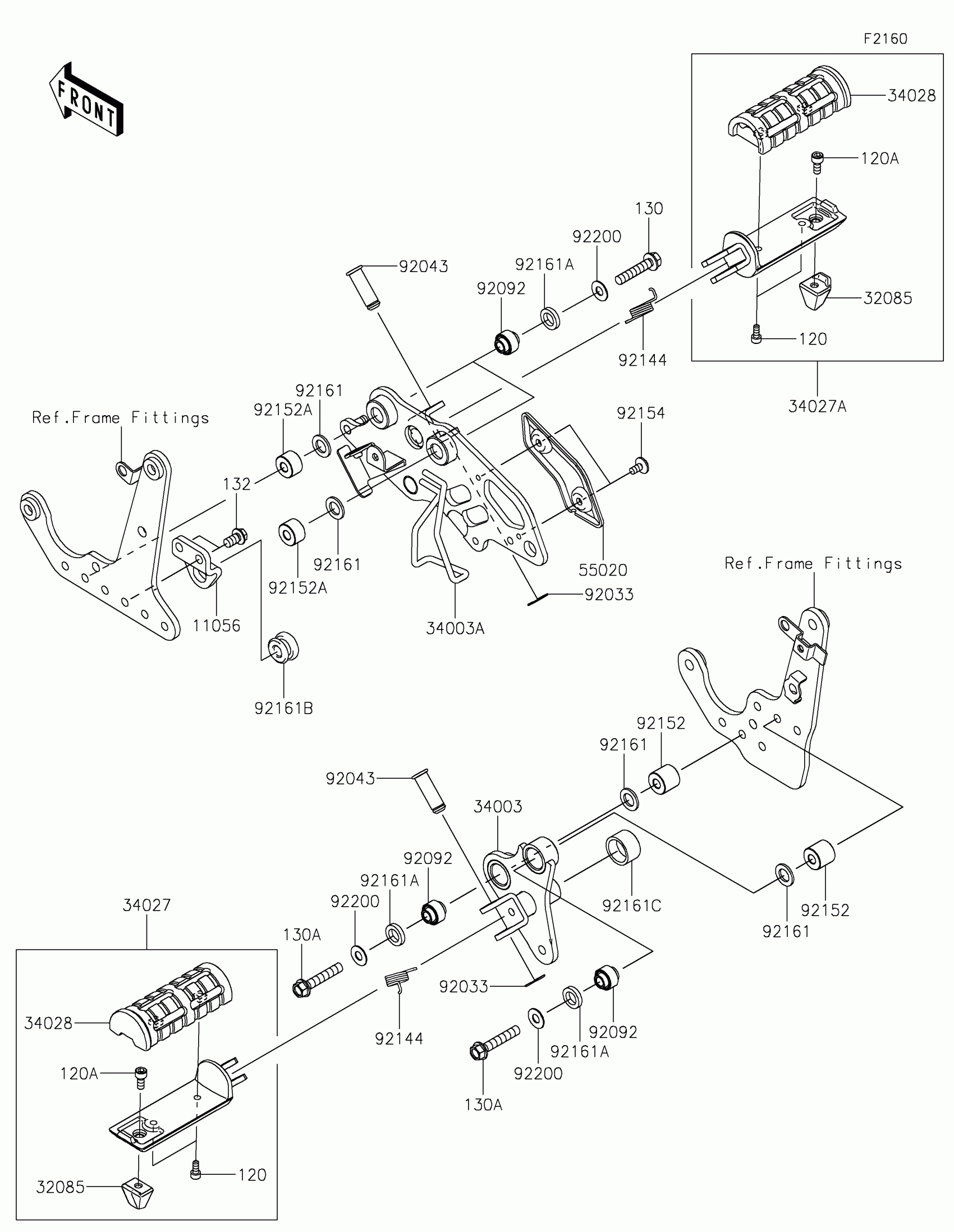

Kawasaki Vulcan S CAFÉ Footrests Diagram
