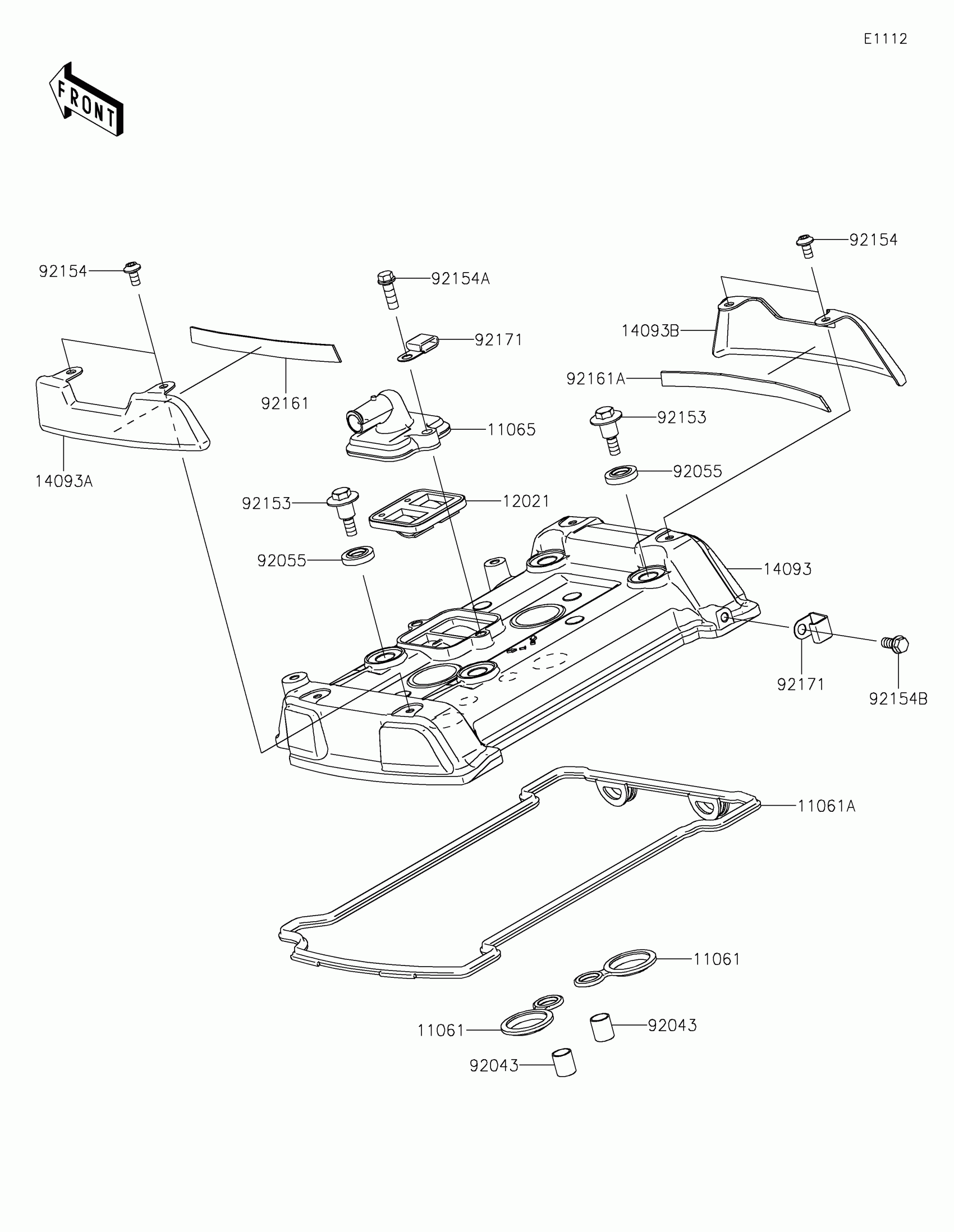

Kawasaki Vulcan S CAFÉ Cylinder Head Cover Diagram

Description

Price

11061

GASKET,SPARK PLUG HOLE

11061-0105

$11.29

11061A

GASKET,HEAD COVER

11061-0926

$33.08

11065

CAP

11065-1320

$36.37

12021

VALVE-ASSY-REED

12021-0708

$80.05

14093

COVER,HEAD

14093-0053

$133.34

14093A

COVER,DRESS,LH

14093-0361

$70.60

14093B

COVER,DRESS,RH

14093-0362

$76.80

92043

PIN,10.1X12X14

92043-4009

$6.22

92055

RING-O,HEAD COVER BOLT

92055-0195

$10.05

92153

BOLT,HEAD COVER

92153-0793

$4.60

92154

BOLT,SOCKET,5X10

92154-1691

$1.48

92154A

BOLT,FLANGED,6X18

92154-1775

$0.63

92154B

BOLT,FLANGED,6X12

92154-1776

$0.63

92161

DAMPER,DRESS COVER,LH

92161-1765

$1.48

92161A

DAMPER,DRESS COVER,RH

92161-1766

$1.71

92171

CLAMP

92171-0813

$8.68
