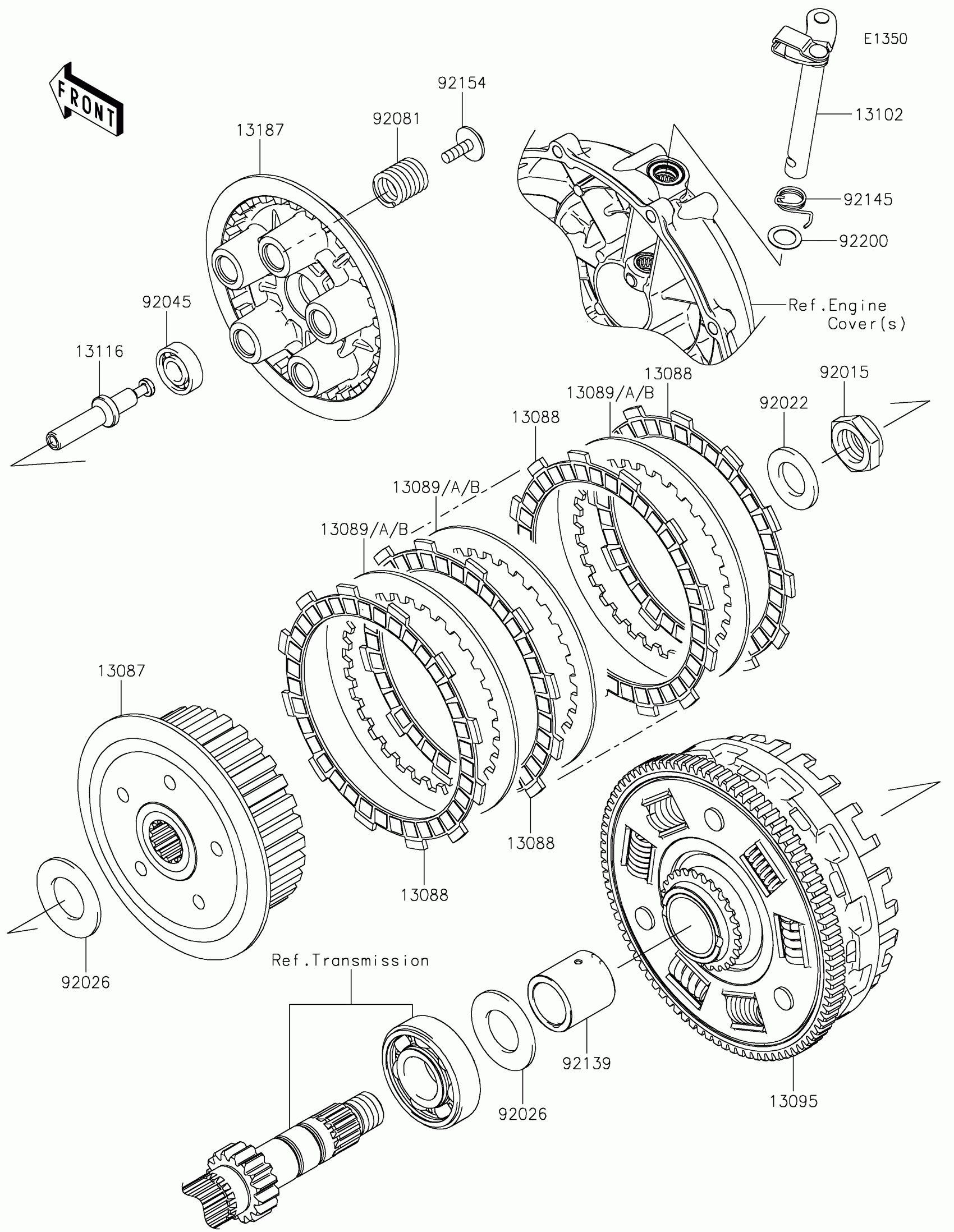

Kawasaki Vulcan® S CAFÉ Clutch Diagram

Description

Price

13087

HUB-CLUTCH

13087-0046

$146.22

13088

PLATE-FRICTION

13088-1105

$15.50

13089

PLATE-CLUTCH,T=2.3

13089-0016

$12.75

13089A

PLATE-CLUTCH,T=2.6

13089-0017

Unavailable

13089B

PLATE-CLUTCH,T=2.0

13089-026

Unavailable

13095

HOUSING-COMP-CLUTCH

13095-0559

$426.07

13102

RELEASE-COMP-CLUTCH

13102-0037

$45.06

13116

ROD-PUSH

13116-0035

$22.01

13187

PLATE-CLUTCH OPERATING

13187-0017

$80.58

92015

NUT,20MM

92015-1555

$13.08

92022

WASHER,20.3X36X3.7

92022-1868

$9.51

92026

SPACER,25.5X47X2.5

92026-0716

$11.16

92045

BEARING-BALL,6001C3ML01

92045-1235

$16.25

92081

SPRING,CLUTCH

92081-1033

$7.38

92139

BUSHING

92139-0710

$29.82

92145

SPRING,CLUTCH RELEASE

92145-0897

Unavailable

92154

BOLT,UPSET-WP,6X20

92154-0079

$5.54

92200

WASHER,12X18.5X0.5

92200-1487

$2.75
