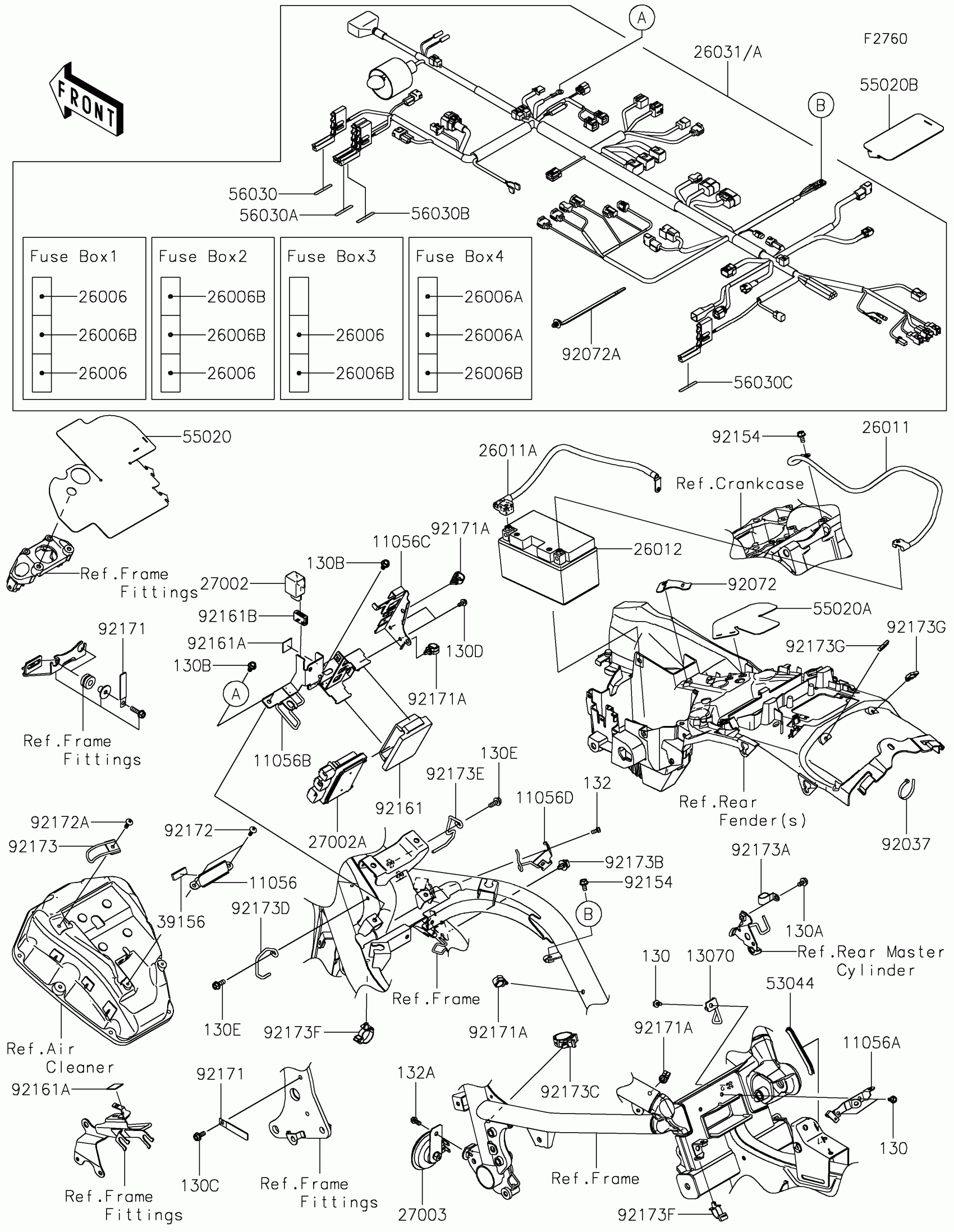

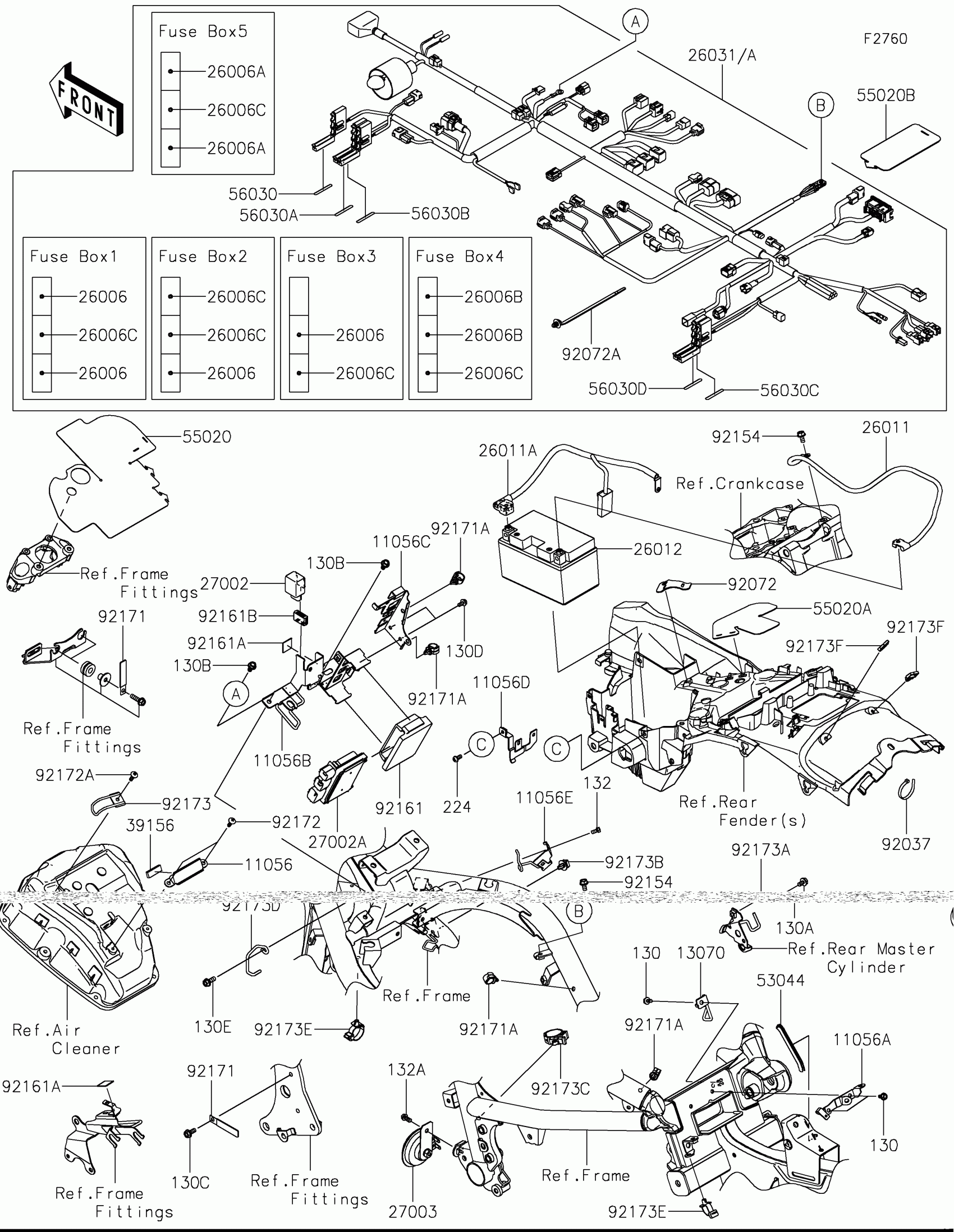

Kawasaki Vulcan S CAFÉ Chassis Electrical Equipment Diagram

#

Description
Price

11056

BRACKET,ECU

11056-4283

$3.54

11056A

BRACKET,CNT FRAME

11056-4284

$7.32

11056B

BRACKET,RELAY-ASSY

11056-4287

$30.12

11056C

BRACKET,CONNECTOR,IG. SW.,ETC.

11056-4293

$14.13

11056D

BRACKET,CONNECTOR,ABS

11056-4295

$7.32

11056E

BRACKET,CONNECTOR,SENSOR

11056-4315

$10.21

13070

GUIDE,HARNESS

13070-0800

$7.26

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$6.12

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

$6.57

26006B

FUSE,MINI BLADE,5A,TAN

26006-1077

$4.87

26006C

FUSE,MINI BLADE,10A,RED

26006-1078

$4.87

26011

WIRE-LEAD,BATTERY(-)

26011-0711

$36.45

26011A

WIRE-LEAD,BATTERY(+)

26011-0870

$66.03

26012

BATTERY,YTZ10,12V 8.6AH

26012-1606

$236.49

26031

HARNESS,MAIN

26031-2305

$1,531.76

26031A

HARNESS,MAIN

26031-2307

$1,531.76

27002

RELAY-ASSY,SIGNAL LAMP

27002-0006

$54.81

27002A

RELAY-ASSY

27002-0050

$143.14

27003

HORN

27003-0111

$68.20

39156

PAD,10X30X4

39156-0927

$0.84

53044

TRIM,L=85

53044-0556

$12.58

55020

GUARD,IG. SWITCH

55020-1833

$47.05

55020A

GUARD,MG. SWITCH

55020-1834

$32.05

55020B

GUARD,HARNESS

55020-2194

$9.15

56030

LABEL,FUSE BOX1

56030-0884

$3.29

56030A

LABEL,FUSE BOX2

56030-0885

$3.29

56030B

LABEL,FUSE BOX3

56030-0886

$3.29

56030C

LABEL,FUSE BOX4

56030-0887

$3.29

56030D

LABEL,FUSE BOX5

56030-0888

$3.29

92037

CLAMP

92037-1173

$3.49

92072

BAND,LEAD WIRE

92072-0768

$2.26

92072A

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92154

BOLT,FLANGED,6X12

92154-1050

$1.97

92161

DAMPER,RELAY BOX

92161-0203

$10.37

92161A

DAMPER,20X20,T1.0

92161-1431

$0.85

92161B

DAMPER,15X25X8.5

92161-1443

$1.94

92171

CLAMP,L=60

92171-0652

$2.61

92171A

CLAMP,13MM DIA.

92171-1415

$2.03

92172

SCREW,TAPPING,5X16

92172-0238

$1.00

92172A

SCREW,TAPPING,5X16

92172-0742

$1.94

92173

CLAMP,AIR CLEANER

92173-0889

$5.65

92173A

CLAMP

92173-0978

$5.65

92173B

CLAMP,CABLE CLIP

92173-1022

$1.63

92173C

CLAMP,CABLE,28MM

92173-1062

$3.72

92173D

CLAMP,WIRE,HEAD PIPE,LH

92173-1334

$3.94

92173E

CLAMP,CABLE STRAP

92173-1336

$2.49

92173F

CLAMP,CLIP,TAIL LAMP,ETC

92173-1429

$1.48

130

BOLT-FLANGED,5X10

130AA0510

$1.07

130A

BOLT-FLANGED,6X10

130AA0610

$0.49

130B

BOLT-FLANGED,6X12

130AA0612

$0.68

130C

BOLT-FLANGED,6X14

130AA0614

$0.49

130D

BOLT-FLANGED,5X10

130BA0510

$1.71

130E

BOLT-FLANGED,6X16

130BB0616

$2.06

132

BOLT-FLANGED-SMALL,5X10

132BA0510

$1.71

132A

BOLT-FLANGED-SMALL,6X12

132BB0612

$2.06

224

SCREW-PAN-WP-CROS,5X12

224AA0512

$1.52
