Description

Price

11056

BRACKET,ABS UNIT

11056-4167

$30.61

11056A

BRACKET,FORK UNDER HOLDER

11056-4358

$16.25

11056B

BRACKET,BRAKE HOSE

11056-4376

$15.41

11056C

BRACKET,FR FENDER

11056-7694

$6.52

14093

COVER,BRAKE HOSE BKT.

14093-0145

$5.39

16082

PUMP-ASSY-OIL,ABS,WET

16082-0910

$1,471.23

43095

HOSE-BRAKE,ABS UNIT-FR M/CYL.

43095-1917

$219.09

43095A

HOSE-BRAKE,ABS UNIT-FR CALIPER

43095-1918

$257.44

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

55020

GUARD,ABS UNIT

55020-1885

$23.31

92022

WASHER,6.5X22X1.6

92022-237

$3.92

92152

COLLAR

92152-0996

$4.20

92152A

COLLAR,6.5X10X15.6

92152-2105

$3.24

92154

BOLT,FLANGED,10X23

92154-0732

$5.05

92154A

BOLT,FLANGED,6X35

92154-4191

$1.11

92160

DAMPER

92160-1141

$4.69

92161

DAMPER,BRAKE PIPE

92161-0347

$5.38

120

BOLT-SOCKET,6X16

120CA0616

$2.49

120A

BOLT-SOCKET,6X45

120CA0645

$2.06

130

BOLT-FLANGED,6X16

130BA0616

$1.20

130A

BOLT-FLANGED,6X22

130BA0622

$1.29

132

BOLT-FLANGED-SMALL,6X8

132BB0608

$3.67

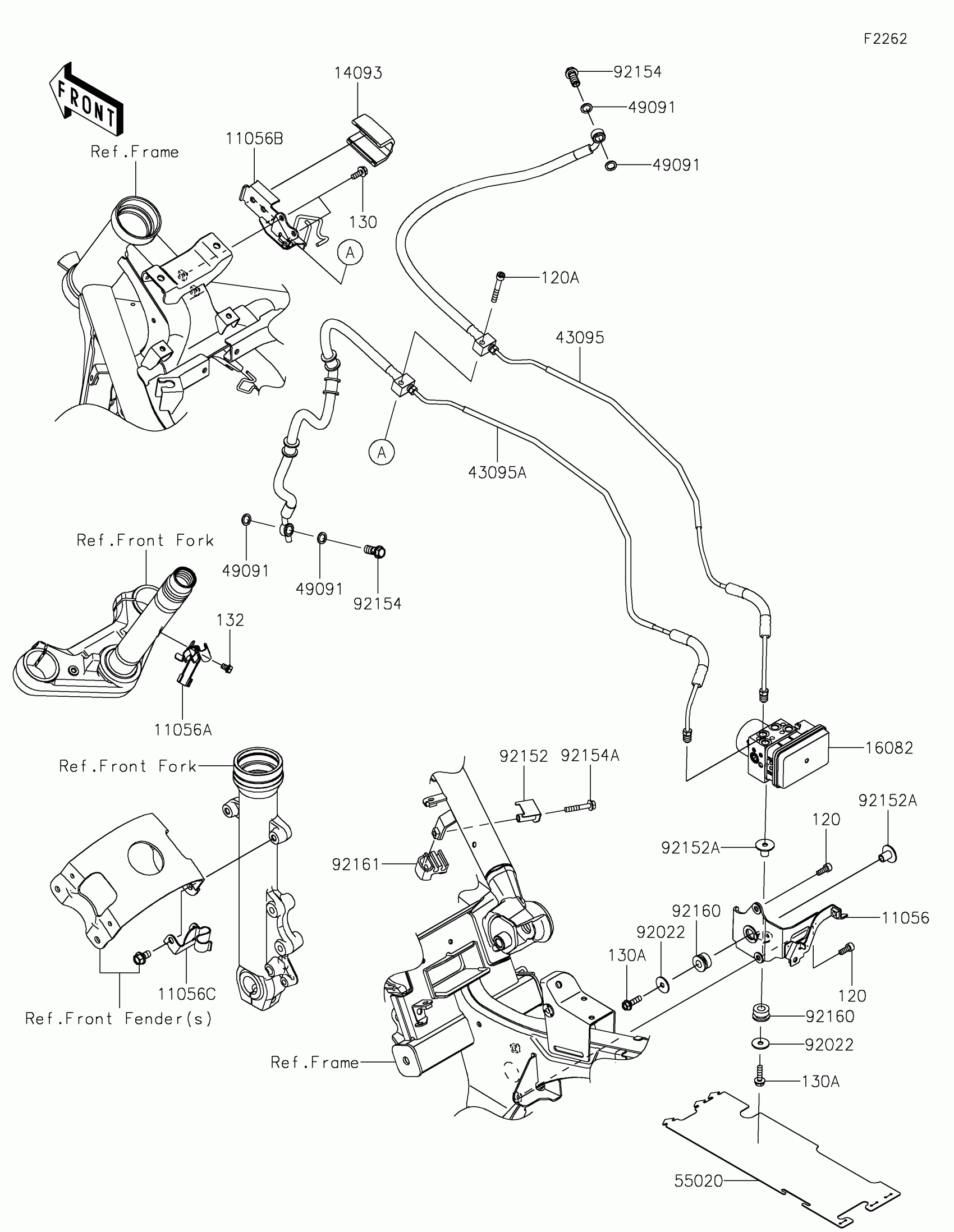

Kawasaki Vulcan S CAFÉ Brake Piping Diagram
