2023 Kawasaki Vulcan® S CafÉ Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2023 Kawasaki Vulcan® S CafÉ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

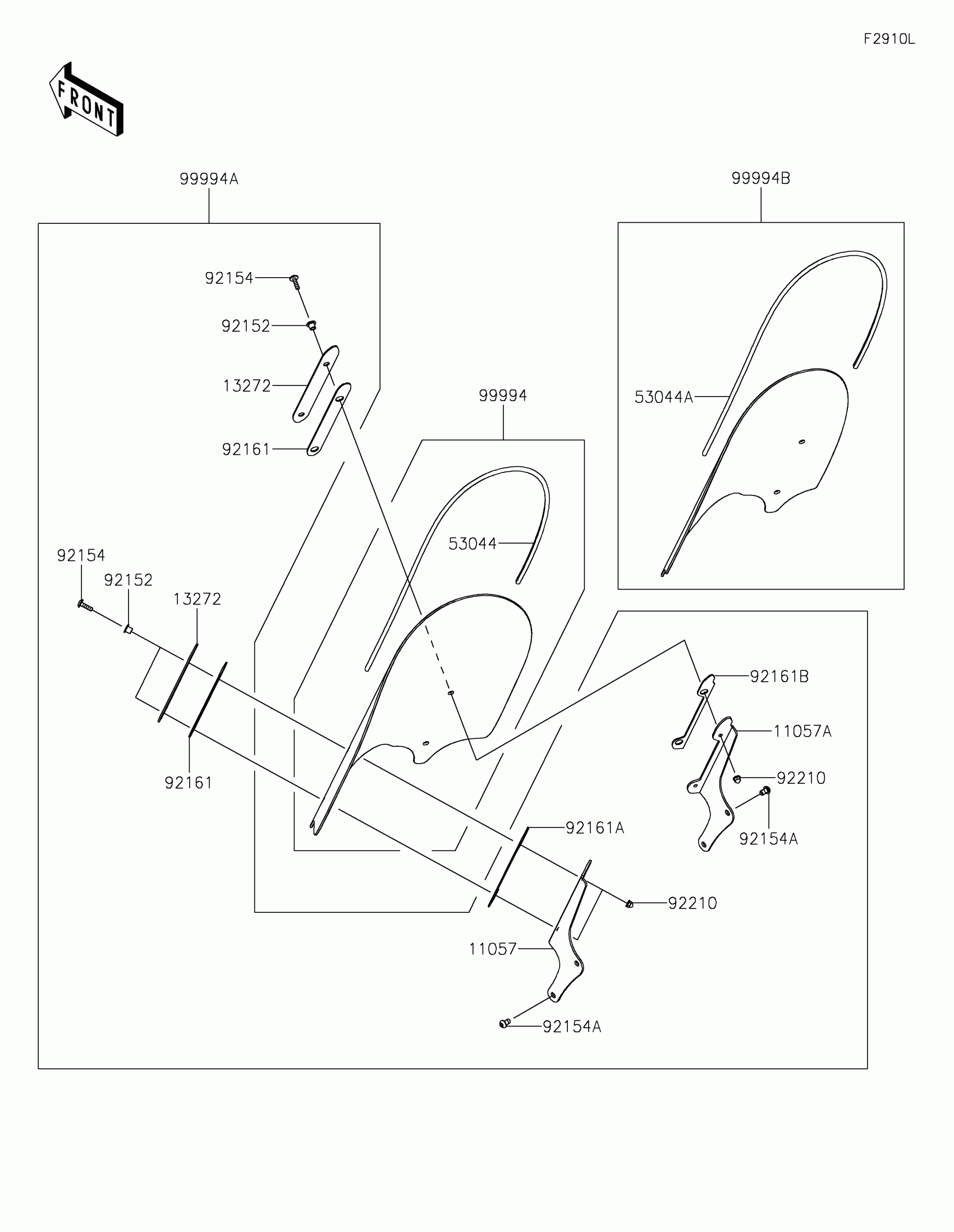

2023 Kawasaki Vulcan® S CafÉ Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,LH

11057-0212

1

$129.76

In stock

11057A

BRACKET,RH

11057-0213

1

$129.76

In stock

13272

PLATE

13272-2181

1

$54.59

In stock

53044

TRIM

53044-0606

1

$29.45

In stock

53044A

1

$30.37

In stock

92152

COLLAR,6.8X10X10.9

92152-2261

1
Out of stock

92154

BOLT,SOCKET,6X22

92154-0787

1

$2.19

In stock

92154A

BOLT,SOCKET,8X14

92154-1032

1

$3.27

In stock

92161

DAMPER

92161-1862

1

$12.02

In stock

92161A

DAMPER

92161-1863

1

$12.02

In stock

92161B

DAMPER

92161-1864

1

$12.02

In stock

92210

NUT,CAP,6MM

92210-0322

1
Out of stock

99994

1

$429.21

In stock

99994A

1

$221.65

In stock

99994B

1

$242.34

In stock
