2023 Kawasaki Vulcan® S CafÉ Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2023 Kawasaki Vulcan® S CafÉ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

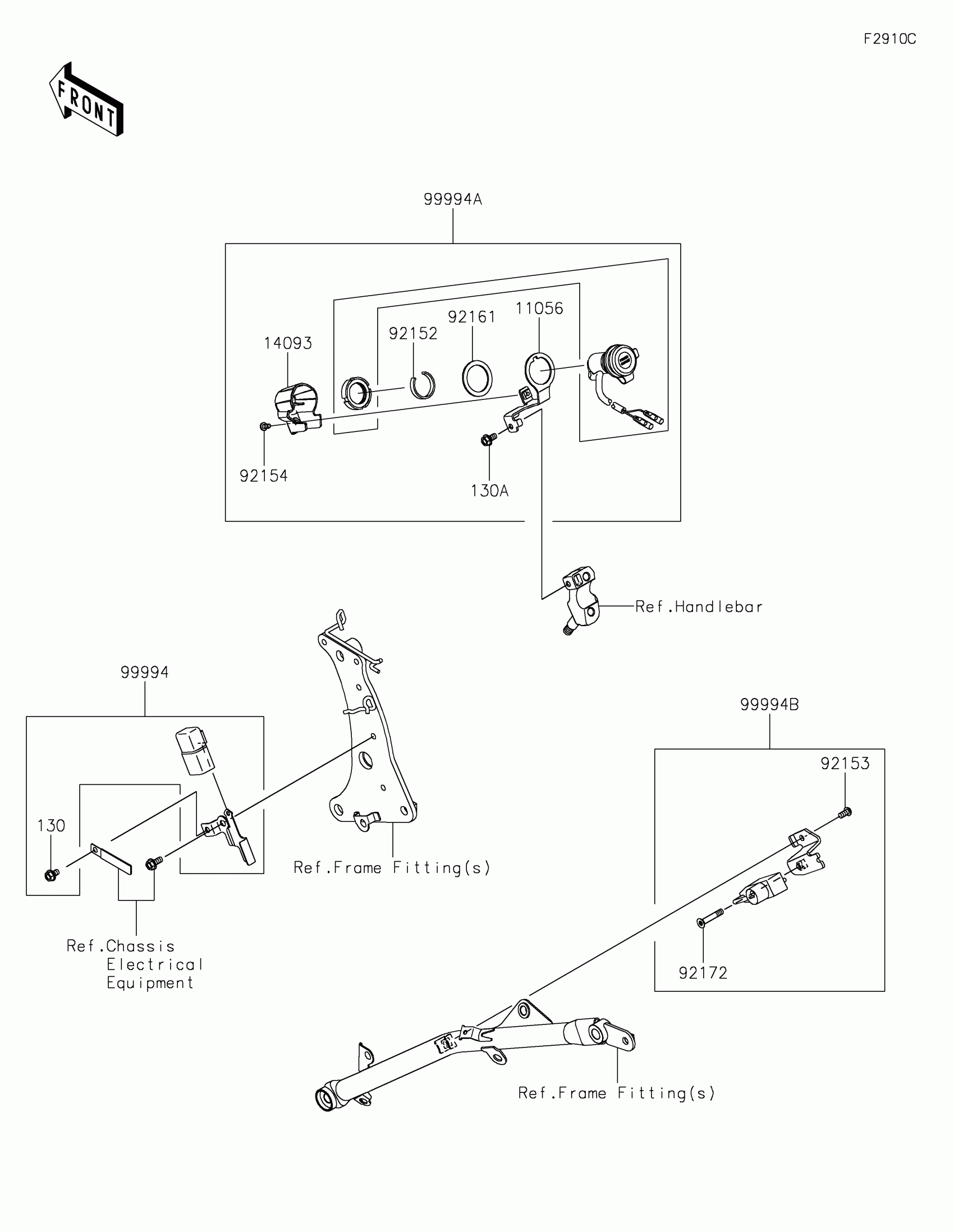

2023 Kawasaki Vulcan® S CafÉ Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-7538

1
Out of stock

14093

COVER,SOCKET

14093-0212

1
Out of stock

92152

COLLAR

92152-2135

1
Out of stock

92153

BOLT,6X12

92153-0906

1
Out of stock

92154

BOLT,SOCKET,5X10

92154-1292

1
Out of stock

92161

DAMPER

92161-1789

1

$4.39

In stock

92172

SCREW,HEXLOBE,6X35

92172-0835

1
Out of stock

99994

KIT-ACCESSORY,RELAY

99994-0510

1
Out of stock

99994A

KIT-ACCESSORY,DC SOCKET

99994-0541

1
Out of stock

99994B

KIT-ACCESSORY,HELMET LOCK

99994-0880

1
Out of stock

130

BOLT-FLANGED,6X10

130AA0610

1

$0.53

In stock

130A

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock
