2023 Kawasaki Vulcan® S CafÉ Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2023 Kawasaki Vulcan® S CafÉ, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

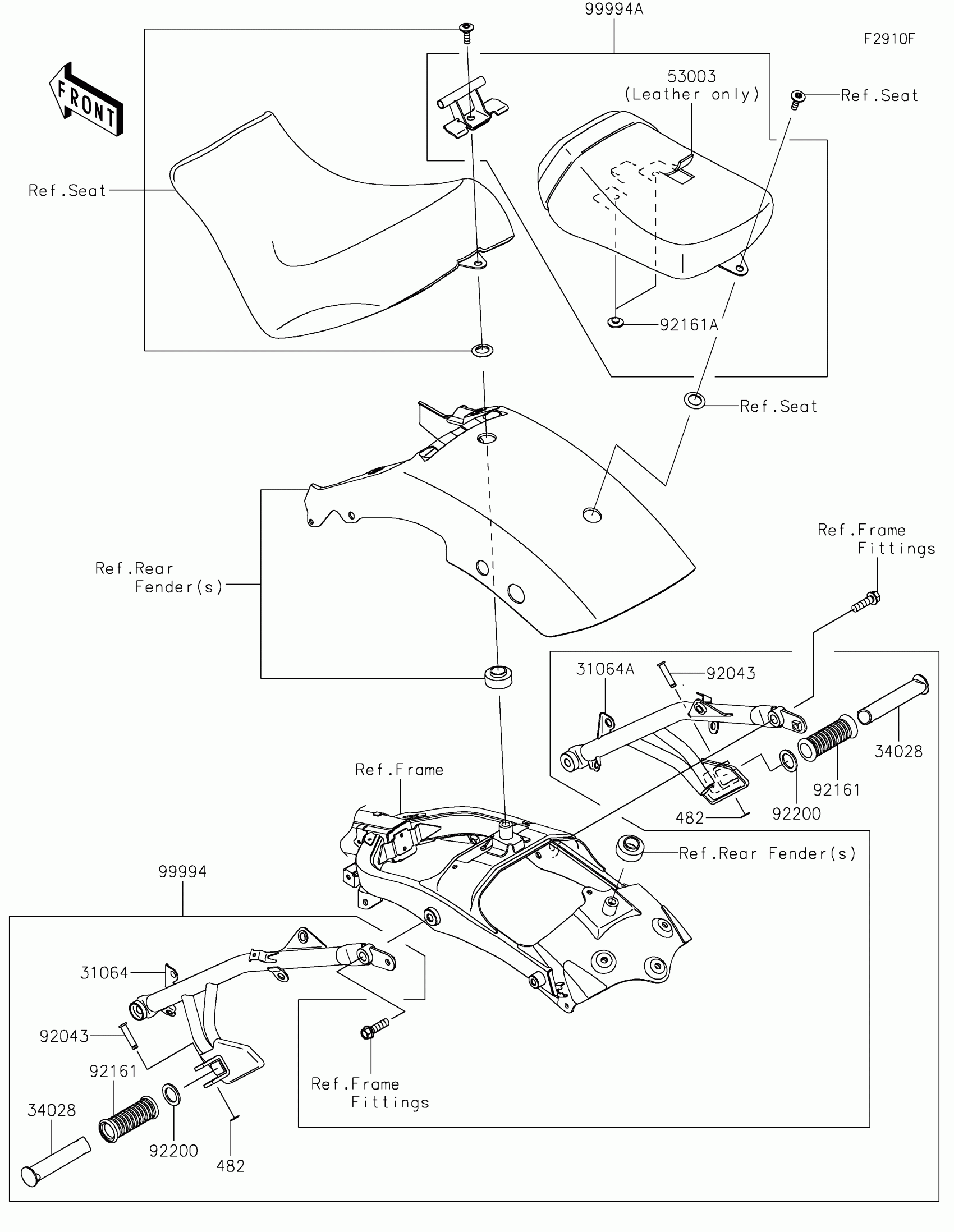

2023 Kawasaki Vulcan® S CafÉ Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

31064

PIPE-COMP,RR,LH,F.S.BLACK

31064-0650-18R

1
Out of stock

31064A

PIPE-COMP,RR,RH,F.S.BLACK

31064-0651-18R

1
Out of stock

34028

STEP,RR

34028-0344

1
Out of stock

53003

LEATHER,RR SEAT,BLACK

53003-0568-MA

1
Out of stock

92043

PIN,8X36.5

92043-1339

1
Out of stock

92161

DAMPER,STEP

92161-0232

1
Out of stock

92161A

DAMPER,8X22X10

92161-1685

1
Out of stock

92200

WASHER,22.5X33X2.3

92200-1482

1
Out of stock

99994

KIT-ACCESSORY,REAR STEP

99994-0570

1
Out of stock

99994A

KIT-ACCESSORY,PASSENGER SEAT

99994-1558

1
Out of stock

482

CIRCLIP-TYPE-E

482EA7000

1
Out of stock
