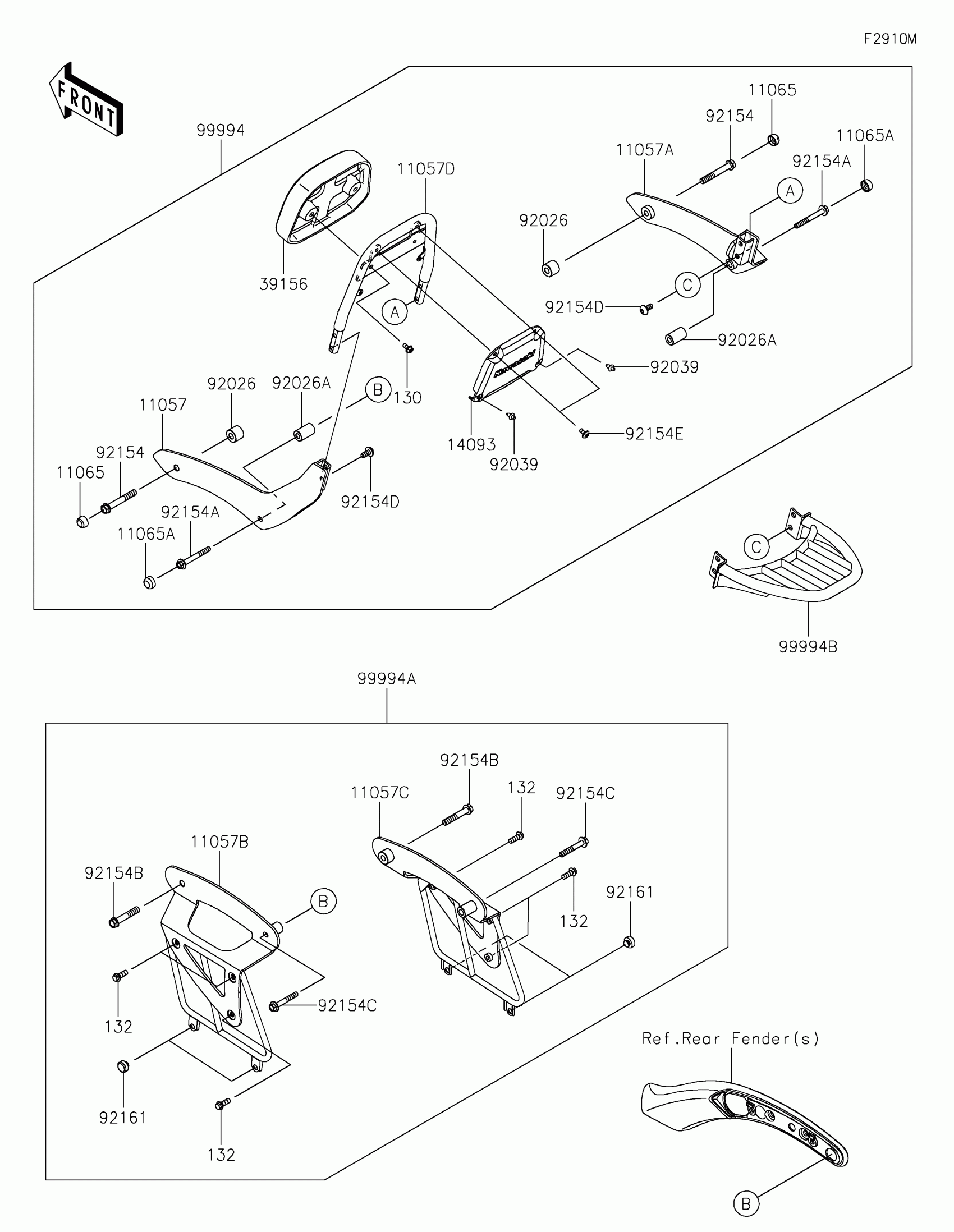

Kawasaki Vulcan® S CAFÉ Accessory(Passenger Backrest) Diagram

Description

Price

11057

BRACKET,SIDE PLATE,LH

11057-0179

$156.64

11057A

BRACKET,SIDE PLATE,RH

11057-0181

$156.64

11057B

BRACKET,LH

11057-0186

$205.33

11057C

BRACKET,RH

11057-0188

$205.33

11057D

BRACKET,SISSYBAR

11057-0218

$250.70

11065

CAP,14

11065-0977

$3.41

11065A

CAP

11065-1195

$2.87

14093

COVER

14093-0504

$26.41

39156

PAD,SEAT

39156-1581

Unavailable

92026

SPACER

92026-0823

$7.43

92026A

SPACER

92026-0824

$7.65

92039

RIVET

92039-0068

$2.97

92154

BOLT,FLANGED,10X70

92154-2227

$11.55

92154A

BOLT,FLANGED,8X68

92154-2228

$7.43

92154B

BOLT,FLANGED,10X57

92154-2229

$10.52

92154C

BOLT,FLANGED,8X55

92154-2230

$6.38

92154D

BOLT,SOCKET,8X18

92154-2239

$3.90

92154E

BOLT,SOCKET,6X12

92154-2497

$2.49

92161

DAMPER,10X20X8

92161-0855

$4.25

99994

KIT,PASSENGER BACKREST W/O KQR

99994-0818

$317.06

99994A

KIT,SADDLEBAG SPRT BKT W/O KQR

99994-0819

$146.47

99994B

KIT-ACC,LUGGAGE RACK W/O KQR

99994-0846

$111.93

130

BOLT-FLANGED,6X12

130BA0612

$1.72

132

BOLT-FLANGED-SMALL,8X22

132BA0822

$2.70
