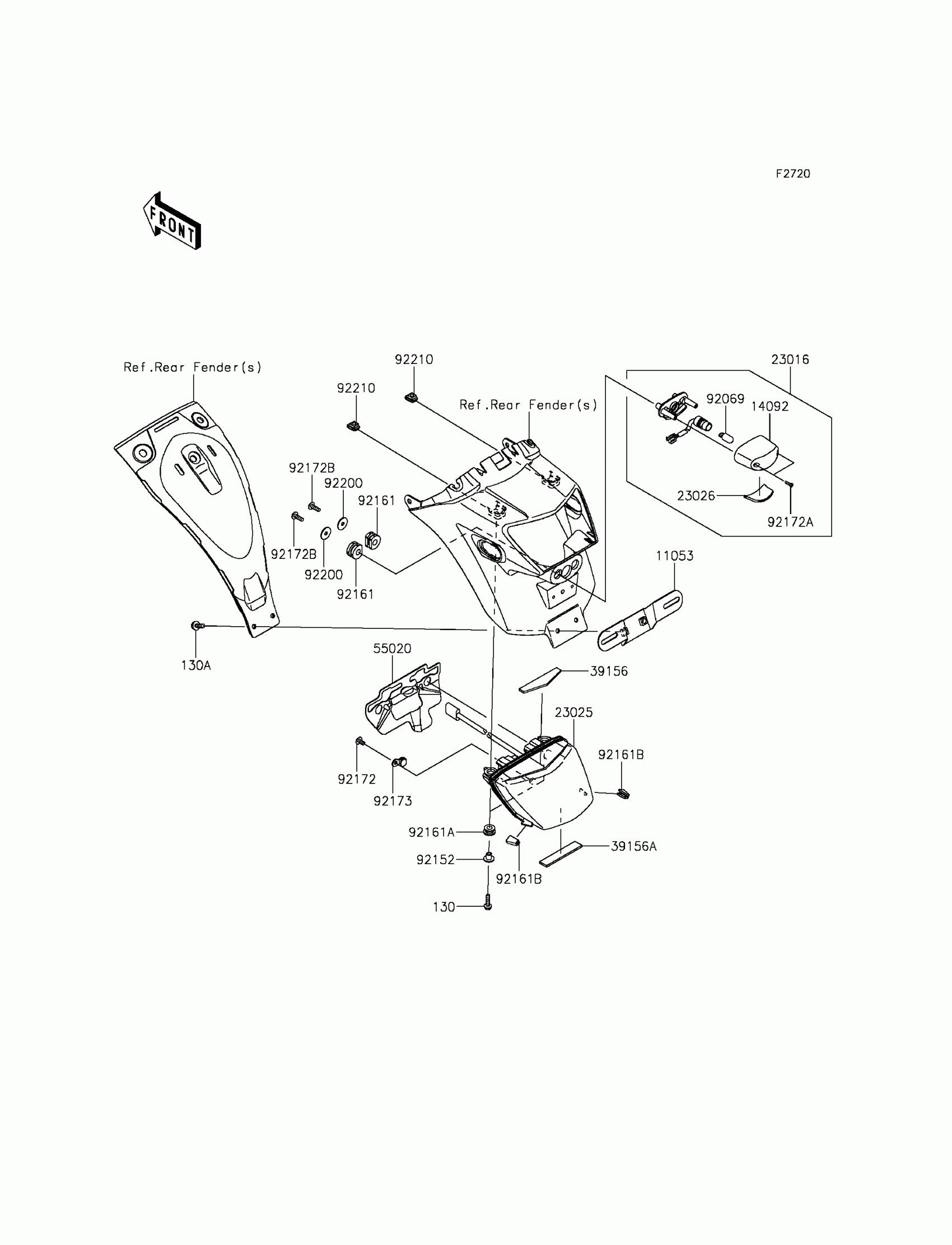

Kawasaki VULCAN® S ABS Taillight(s) Diagram

Description

Price

11053

BRACKET,LICENSE

11053-0400

$16.53

14092

COVER,LICENSE LAMP

14092-0001

$21.52

23016

LAMP-ASSY,LICENCE

23016-0658

$71.76

23025

LAMP-TAIL,LED

23025-0342

$258.10

23026

LENS,LICENCE LAMP

23026-0035

$28.78

39156

PAD,20X80X3

39156-1869

$2.13

39156A

PAD,15X76X3

39156-1928

$1.02

55020

GUARD,TAIL LAMP

55020-1882

$19.80

92069

BULB,12V 5W

92069-1016

$6.52

92152

COLLAR

92152-1592

$3.02

92161

DAMPER

92161-0776

$5.54

92161A

DAMPER,8X18X8.1

92161-1369

$1.63

92161B

DAMPER,TAIL LAMP

92161-1694

$1.71

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92172A

SCREW,TAPPING,2.9X13

92172-0343

$1.78

92172B

SCREW,TAPPING,5X16

92172-0427

$2.55

92173

CLAMP

92173-1337

$1.19

92200

WASHER,5.5X20X1.2

92200-0284

$2.15

92210

NUT,PLATE,5MM

92210-0935

$1.97

130

BOLT-FLANGED,5X20

130BA0520

$0.92

130A

BOLT-FLANGED,6X16

130BA0616

$1.20
