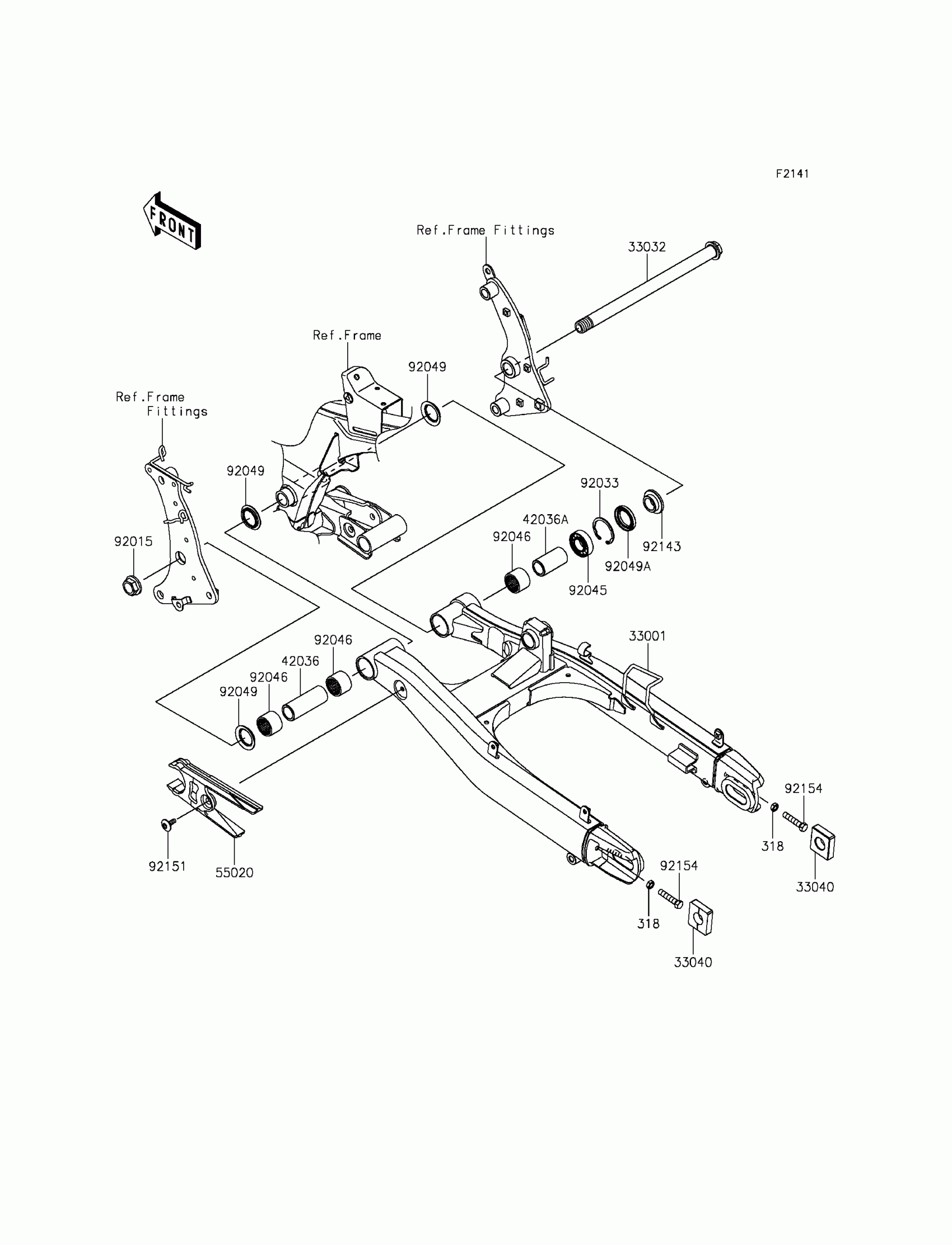

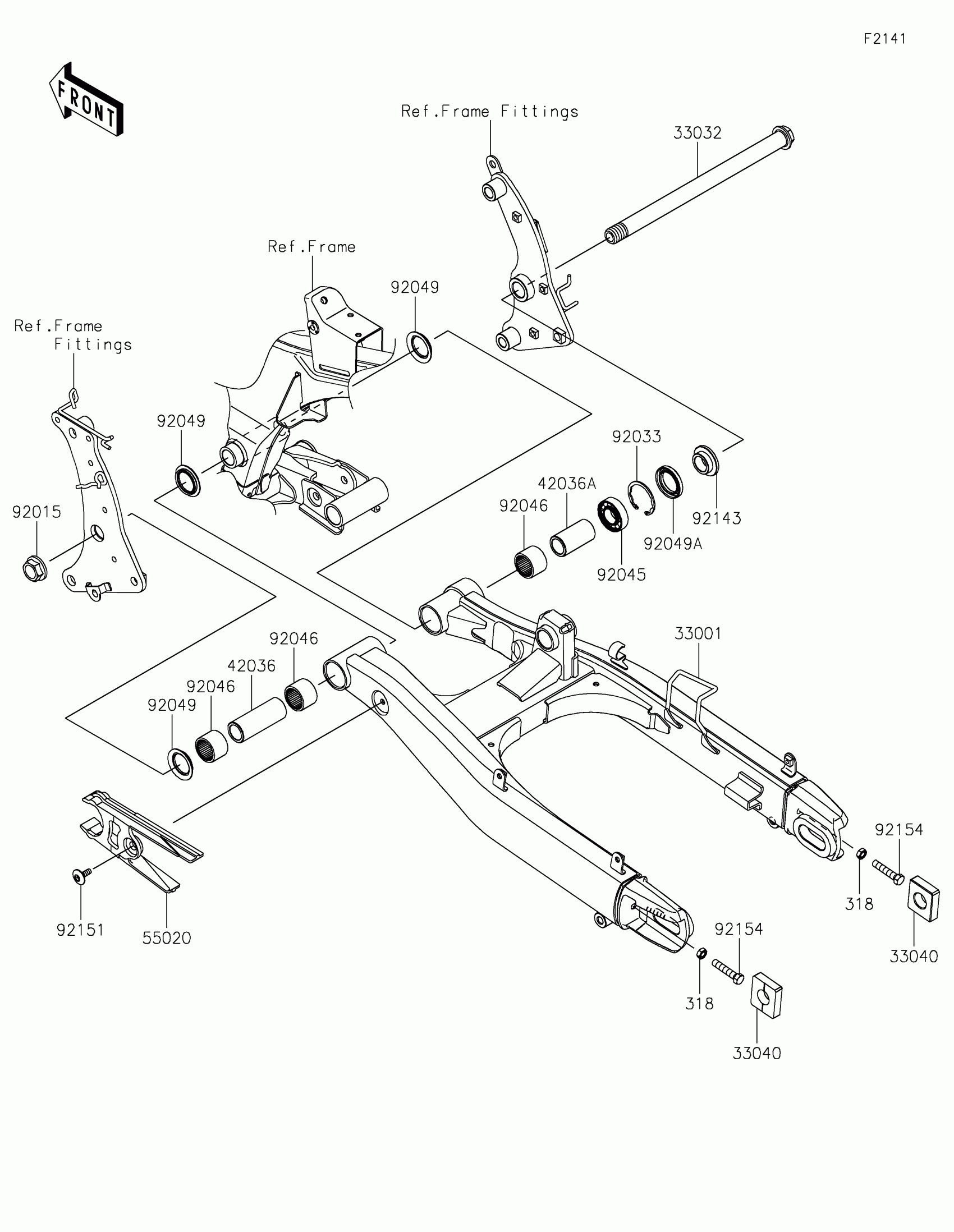

Kawasaki VULCAN® S ABS Swingarm Diagram

Description

Price

33001

ARM-COMP-SWING,F.S.BLACK

33001-0625-18R

$515.84

33032

SHAFT-SWING ARM,20X300

33032-0042

$100.34

33040

ADJUSTER-CHAIN

33040-1109

$19.66

42036

SLEEVE,LH,20.1X28X75.8

42036-0706

$37.47

42036A

SLEEVE,RH,20.1X28X52.3

42036-0707

$30.12

55020

GUARD,CHAIN

55020-0985

$42.62

92015

NUT,FLANGED,20MM

92015-1724

$14.90

92033

RING-SNAP,42MM

92033-1041

$6.16

92045

BEARING-BALL,6004UL11

92045-0948

$14.39

92046

BEARING-NEEDLE,BM2824

92046-1202

$25.10

92049

SEAL-OIL

92049-0132

$9.39

92049A

SEAL-OIL

92049-0138

$9.39

92143

COLLAR,SWING ARM,RH,L=12.5

92143-1727

$19.64

92151

BOLT,SOCKET,6X18

92151-1149

$7.68

92154

BOLT,8X40

92154-0837

$3.65

318

NUT-HEX-SMALL,8MM

318BA0800

$1.34
