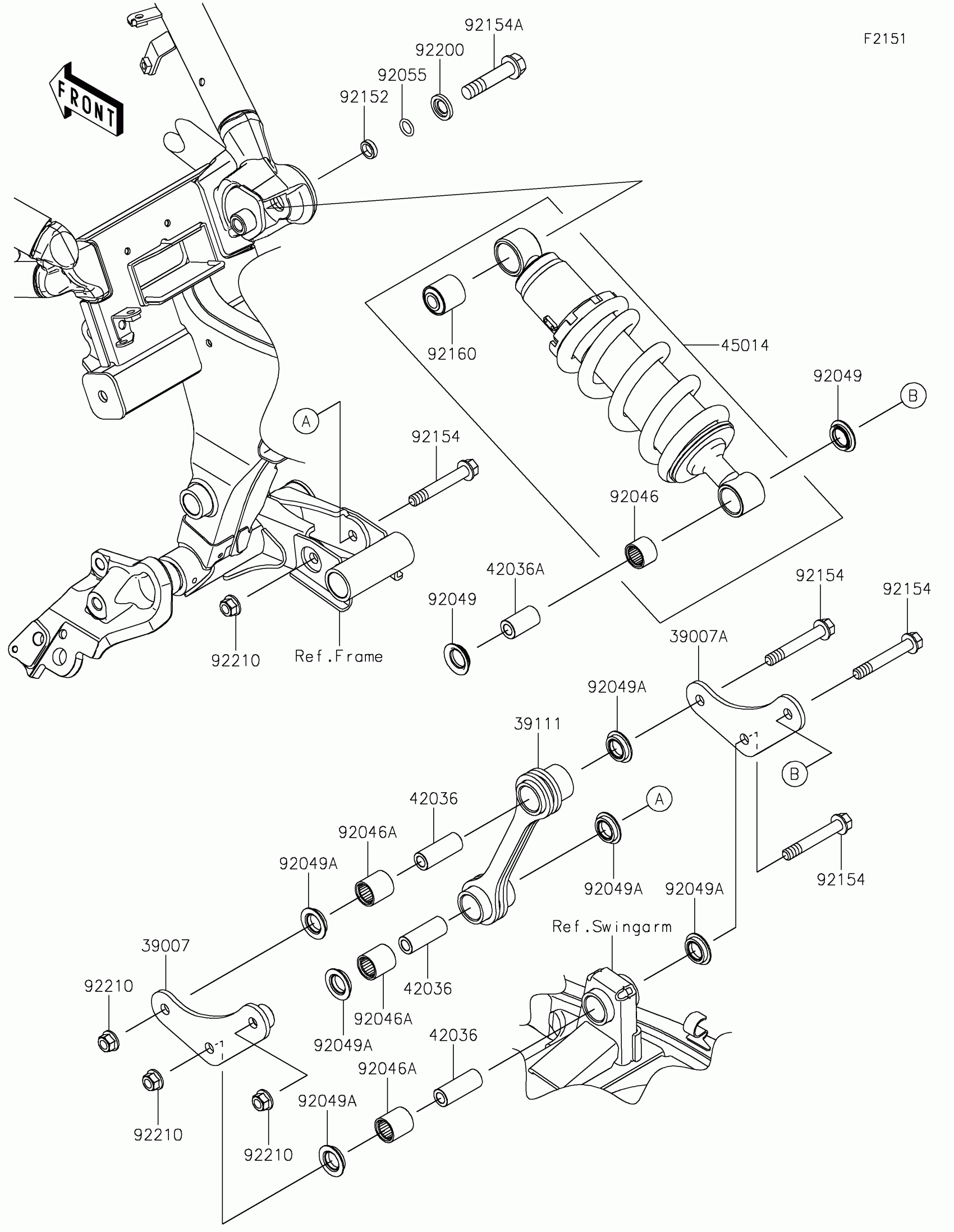

Kawasaki VULCAN® S ABS Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP,LINK,LH,F.BLACK

39007-0385-21

$64.21

39007A

ARM-SUSP,LINK,RH,F.BLACK

39007-0386-21

$64.21

39111

ROD-TIE,SUSPENSION

39111-0339

$156.71

42036

SLEEVE,10.1X17X44.5

42036-0718

$24.01

42036A

SLEEVE,10.1X18X32

42036-1344

$11.28

45014

SHOCKABSORBER,BLACK

45014-0472-10

$432.31

92046

BEARING-NEEDLE,SFYZM182417

92046-1272

$16.42

92046A

BEARING-NEEDLE,SFYZM172425

92046-1273

$17.69

92049

SEAL-OIL

92049-0133

$10.05

92049A

SEAL-OIL,MHA17245.7F

92049-0850

$8.85

92055

RING-O,11.8X2.4

92055-0843

Unavailable

92152

COLLAR,12.1X16.8X4.4

92152-0811

$4.45

92154

BOLT,FLANGED,10X67

92154-0264

$5.29

92154A

BOLT,FLANGED,12X55

92154-0836

$10.90

92160

DAMPER,SHOCKABSORBER

92160-1161

$30.91

92200

WASHER,12.5X24X3.2

92200-0519

$3.71

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18
