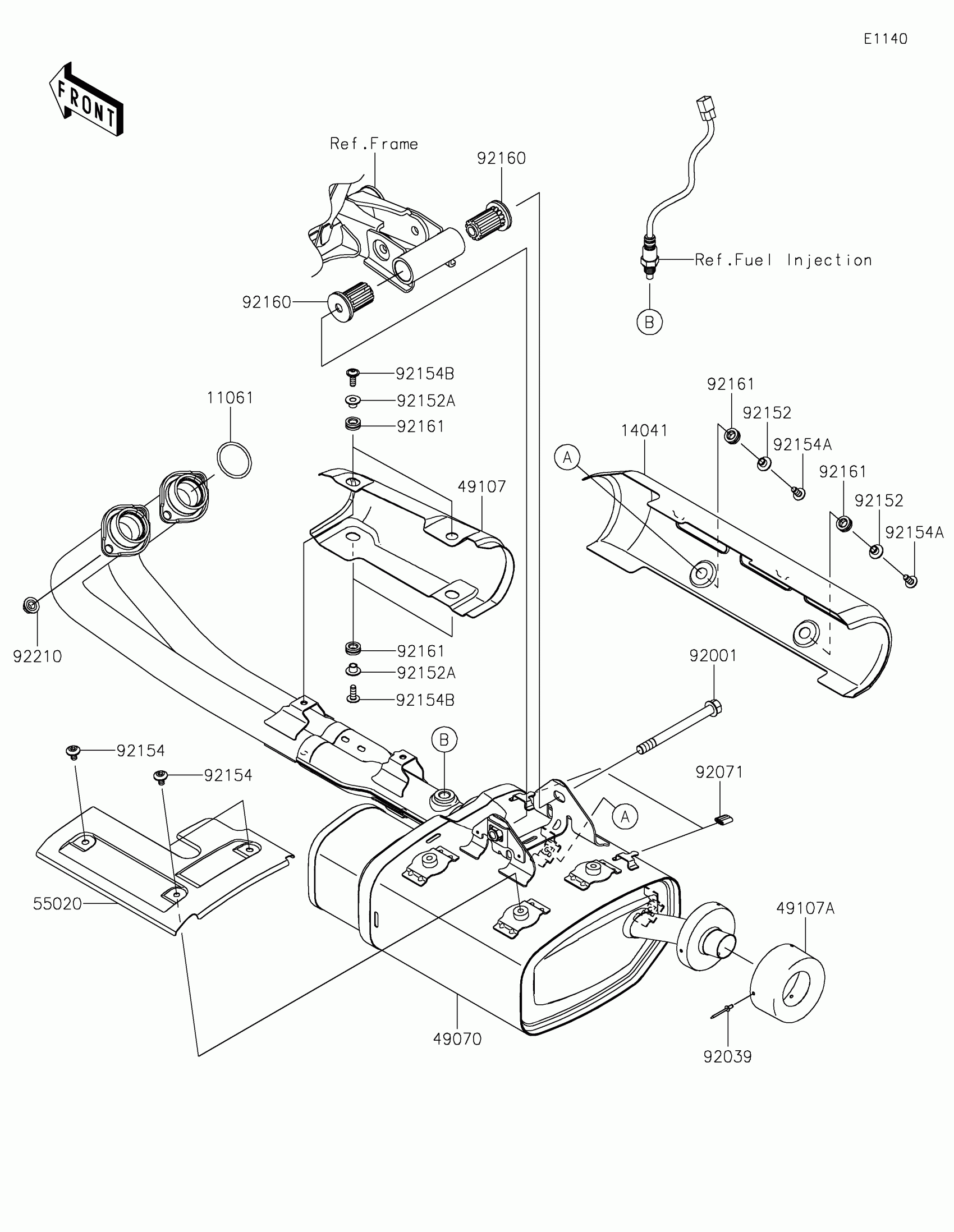

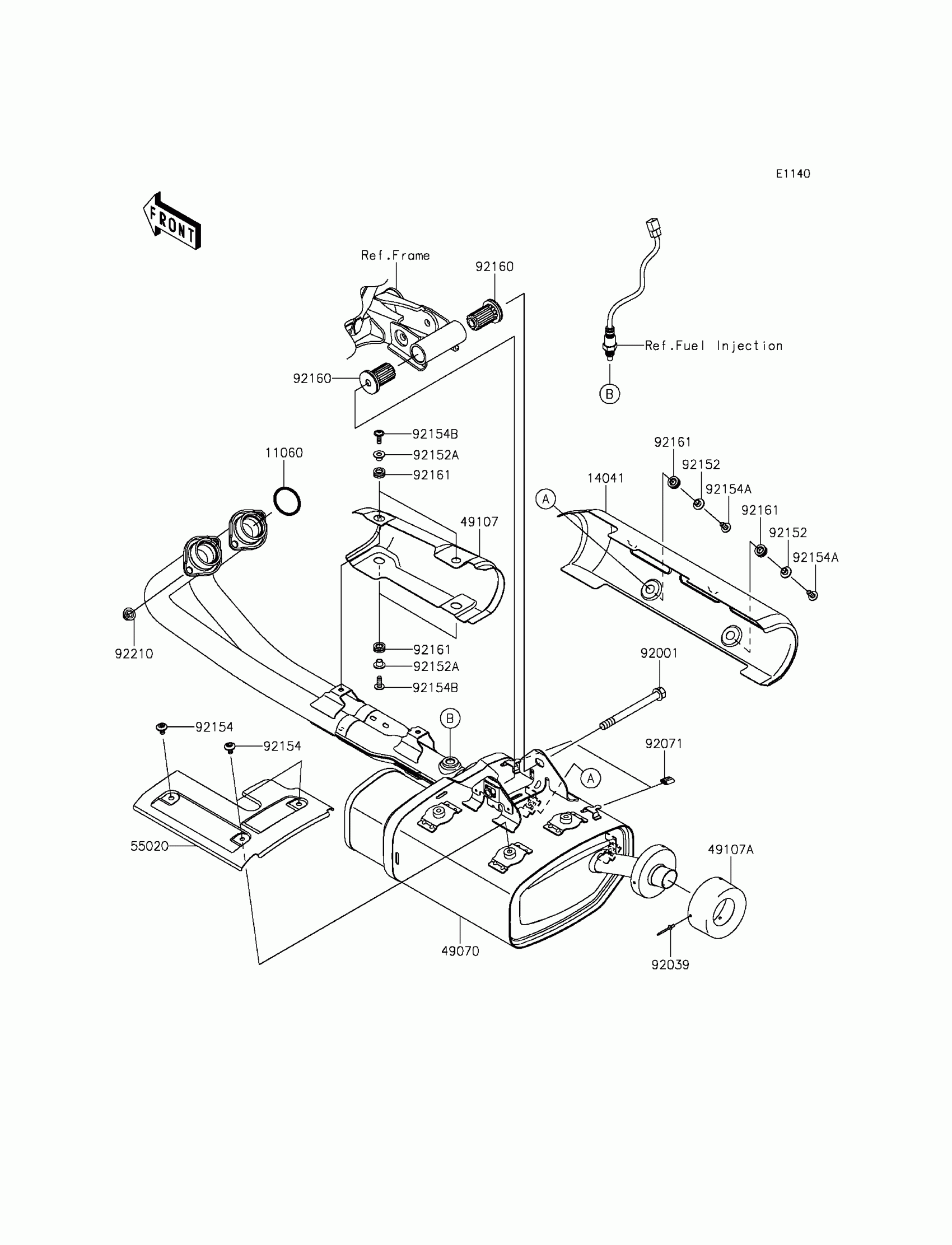

Kawasaki VULCAN® S ABS Muffler(s) Diagram

Description

Price

11061

GASKET,EXHAUST PIPE HOLDER

11061-1373

$7.88

14041

COVER-COMP,MUFFLER

14041-0581

$352.61

49070

MUFFLER-COMP

49070-0858

$1,290.77

49107

COVER-EXHAUST PIPE,FR

49107-0776

$201.93

49107A

COVER-EXHAUST PIPE,END

49107-0777

$111.51

55020

GUARD,MUFFLER

55020-1855

$111.46

92001

BOLT,FLANGED,10X110

92001-1602

$11.07

92039

RIVET

92039-0088

$1.71

92071

GROMMET

92071-1270

$7.22

92152

COLLAR,6.3X8.3X16

92152-1602

$3.74

92152A

COLLAR

92152-1988

$3.54

92154

BOLT,SOCKET,6X10

92154-0774

$1.63

92154A

BOLT,SOCKET,6X14

92154-0856

$1.94

92154B

BOLT,SOCKET,6X16

92154-1678

$1.71

92160

DAMPER

92160-1423

$22.21

92161

DAMPER

92161-1475

$5.33

92210

NUT,8MM

92210-1114

$2.46
