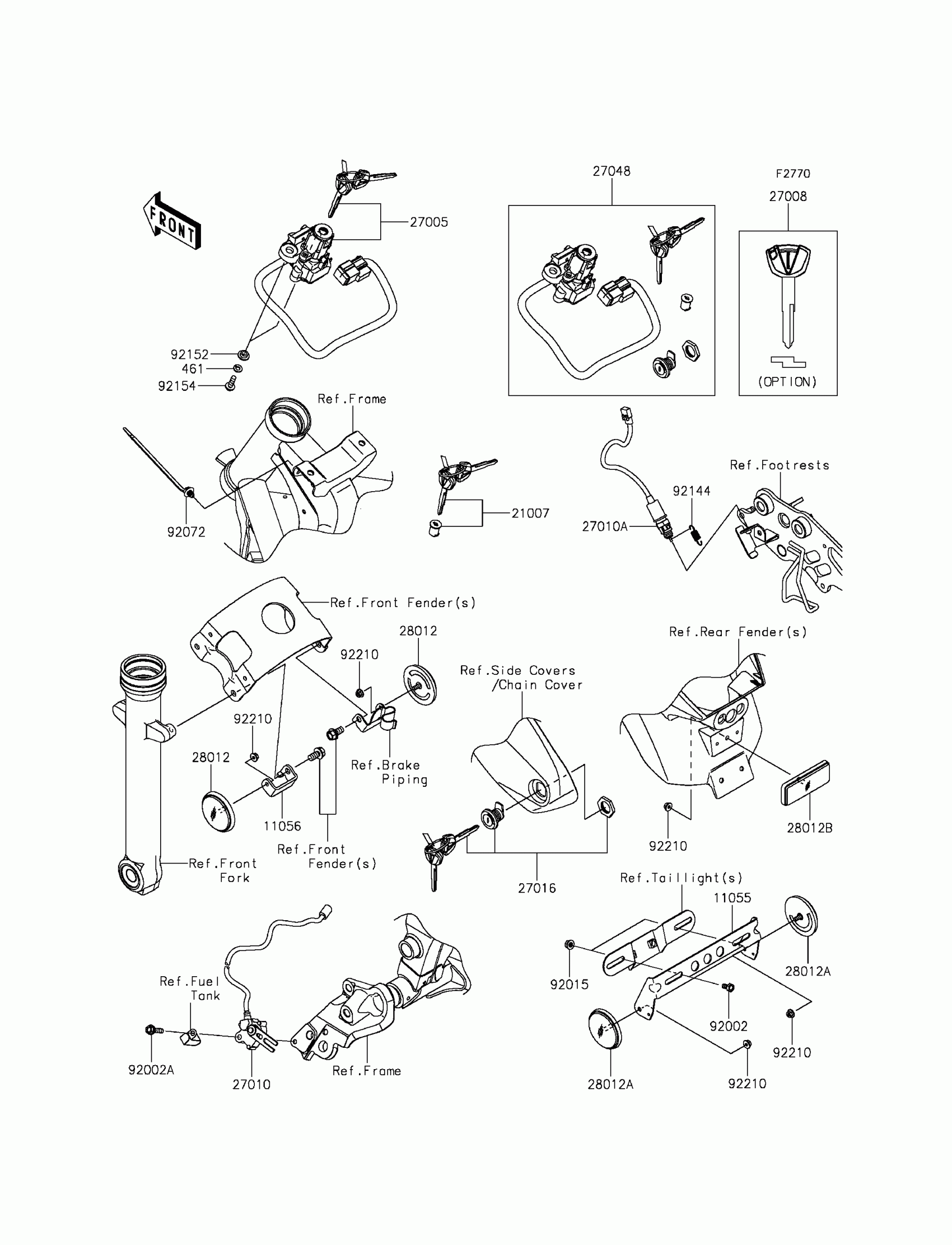

Kawasaki VULCAN® S ABS Ignition Switch/Locks/Reflectors Diagram

Description

Price

11055

BRACKET,REFLECTOR

11055-1092

$33.36

11056

BRACKET,REFLECTOR,LH

11056-7698

$3.63

21007

ROTOR,LOCK,TANK CAP

21007-5077

$123.53

27005

SWITCH-ASSY-IGNITION

27005-0595

$174.88

27008

KEY-LOCK,BLANK

27008-0596

$21.89

27010

SWITCH,SIDE STAND

27010-0722

$115.66

27010A

SWITCH,RR BRAKE

27010-0760

$33.01

27016

LOCK-ASSY

27016-5387

$90.37

27048

SWITCH-ASSY

27048-5053

$401.92

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$24.14

28012A

REFLECTOR-REFLEX

28012-0002

$24.14

28012B

REFLECTOR-REFLEX

28012-1077

$23.25

92002

BOLT,6X12

92002-1132

$1.49

92002A

BOLT,FLANGED,6X25

92002-1582

$4.69

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92072

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92144

SPRING,REAR BRAKE SWITCH

92144-1141

$5.46

92152

COLLAR,6.15X10.15X6

92152-1535

$3.74

92154

BOLT,FLANGED,6X20

92154-0107

$2.55

92210

NUT,FLANGED,5MM

92210-0007

$2.70

461

WASHER-SPRING,6MM

461DA0600

$0.71
