Description

Price

11009

GASKET,10.5X15X1.5

11009-1325

Unavailable

44005

PIPE-LEFT FORK OUTER,S.BLACK

44005-0101-32A

$312.25

44006

PIPE-RIGHT FORK OUTER,L.S.BLK

44006-0124-32A

$312.25

44013

PIPE-FORK INNER

44013-0270

$459.67

44023

CYLINDER-SET-FORK

44023-0133

$112.23

44026

SPRING-FRONT FORK

44026-0196

$60.79

44029

SEAT-FORK SPRING

44029-0005

$44.62

44037

HOLDER-FORK UNDER,F.S.BLACK

44037-0150-18R

$377.28

44039

HOLDER-FORK UPPER,F.BLACK

44039-0146-21

$377.28

44065

BUSHING-FRONT FORK,INNER TUBE

44065-0014

$29.57

44065A

BUSHING-FRONT FORK,OUTER TUBE

44065-1115

$28.71

44071

DAMPER-ASSY,FORK,LH,S.BLACK

44071-0988-32A

$656.20

44071A

DAMPER-ASSY,FORK,RH,L.S.BLACK

44071-1412-32A

$656.20

55020

GUARD,FORK

55020-0872

$11.66

92022

WASHER,FORK OUTER TUBE

92022-1298

$8.58

92033

RING-SNAP

92033-1036

$6.51

92049

SEAL-OIL

92049-0073

$22.70

92055

RING-O

92055-1321

$1.35

92066

PLUG

92066-0817

$10.64

92093

SEAL,FORK OUTER TUBE

92093-1472

$23.76

92151

BOLT,SOCKET,10X40

92151-1357

$3.99

92152

COLLAR

92152-2153

$13.55

92154

BOLT,SOCKET,FORK CYLINDER

92154-0296

$3.52

92154A

BOLT,SOCKET,8X20

92154-1811

$3.74

92200

WASHER

92200-1467

$9.91

120

BOLT-SOCKET,8X35

120CB0835

$4.76

130

BOLT-FLANGED,6X10

130BB0610

$2.49

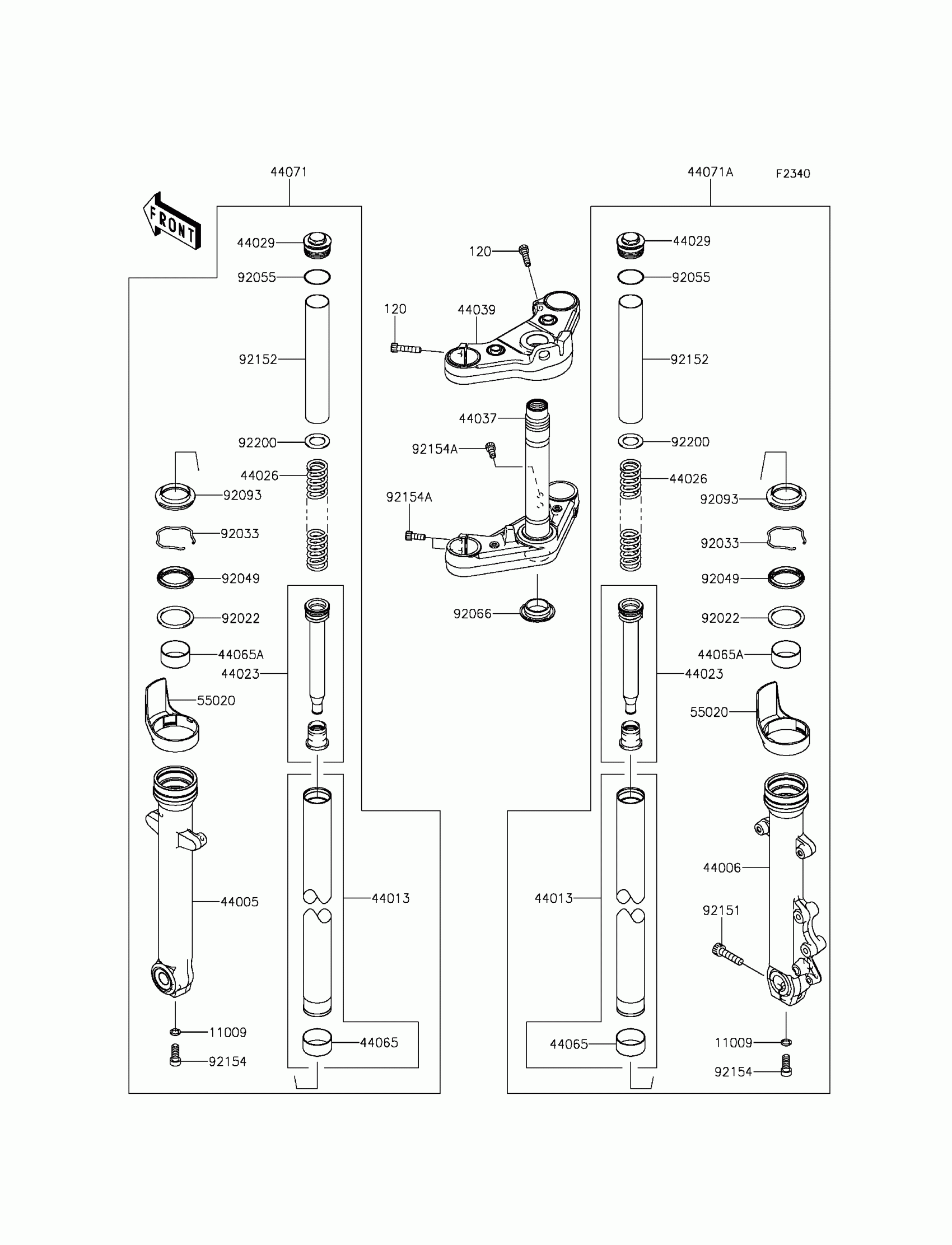

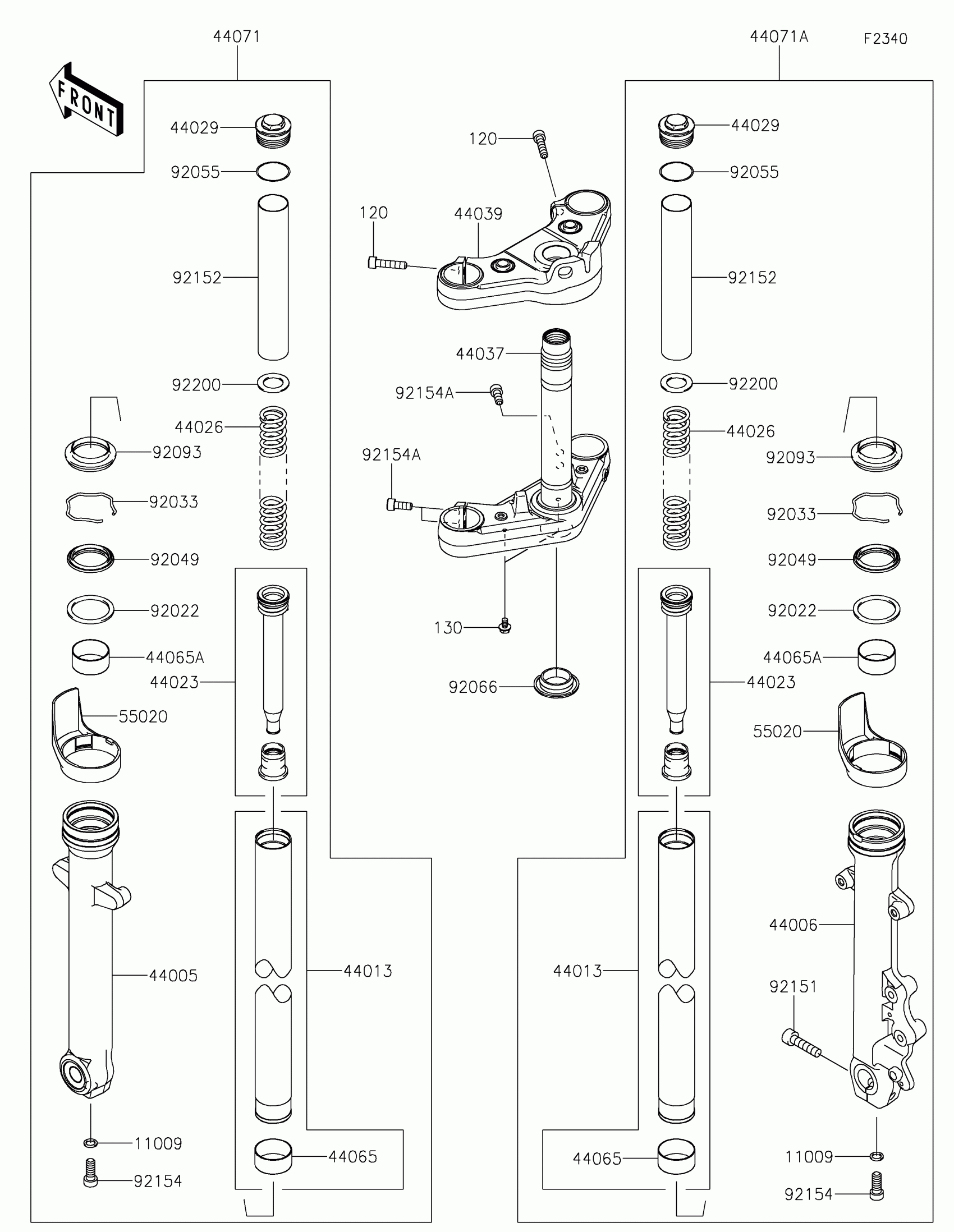

Kawasaki VULCAN® S ABS Front Fork Diagram
