- VULCAN® S ABS
Frame Fittings

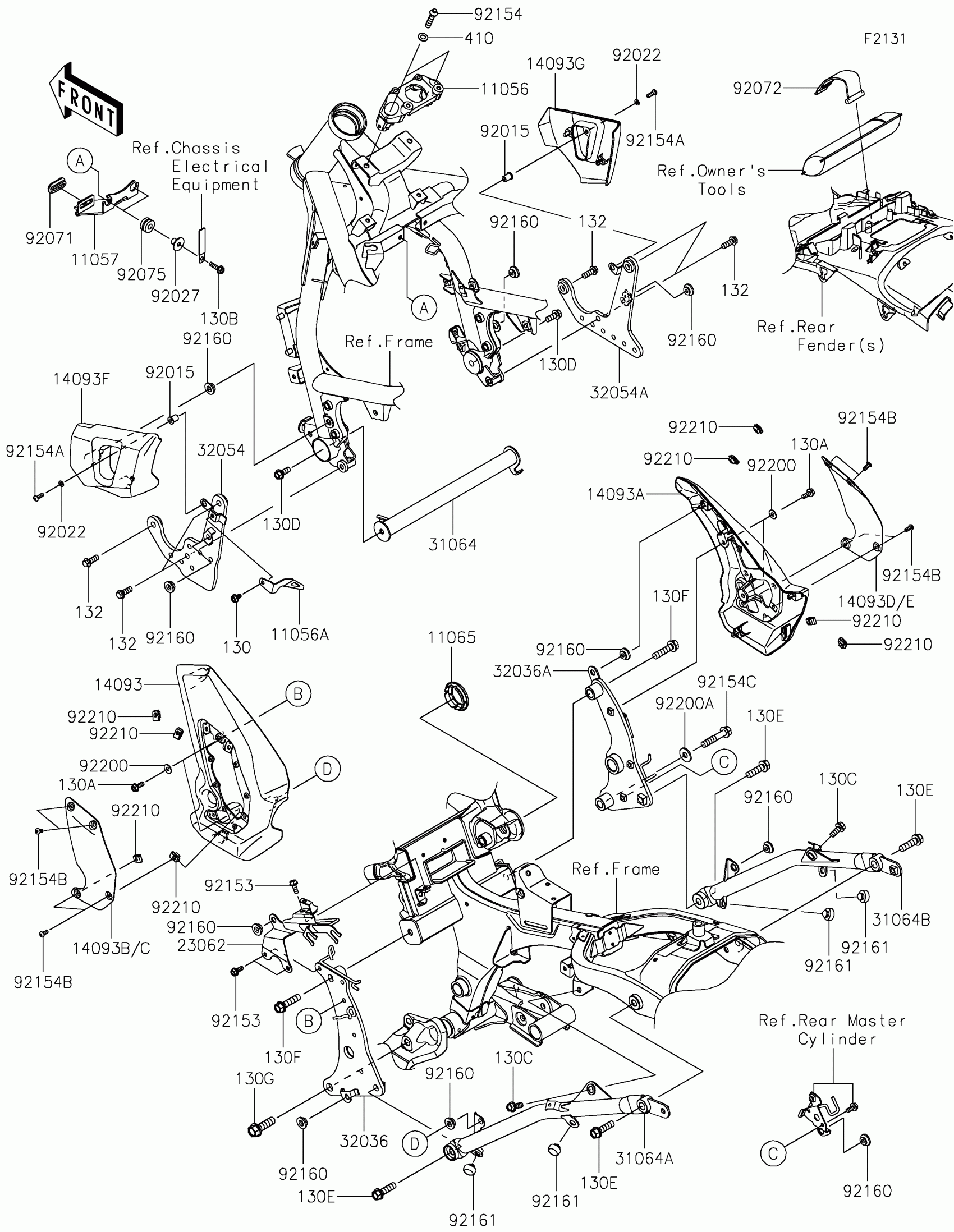

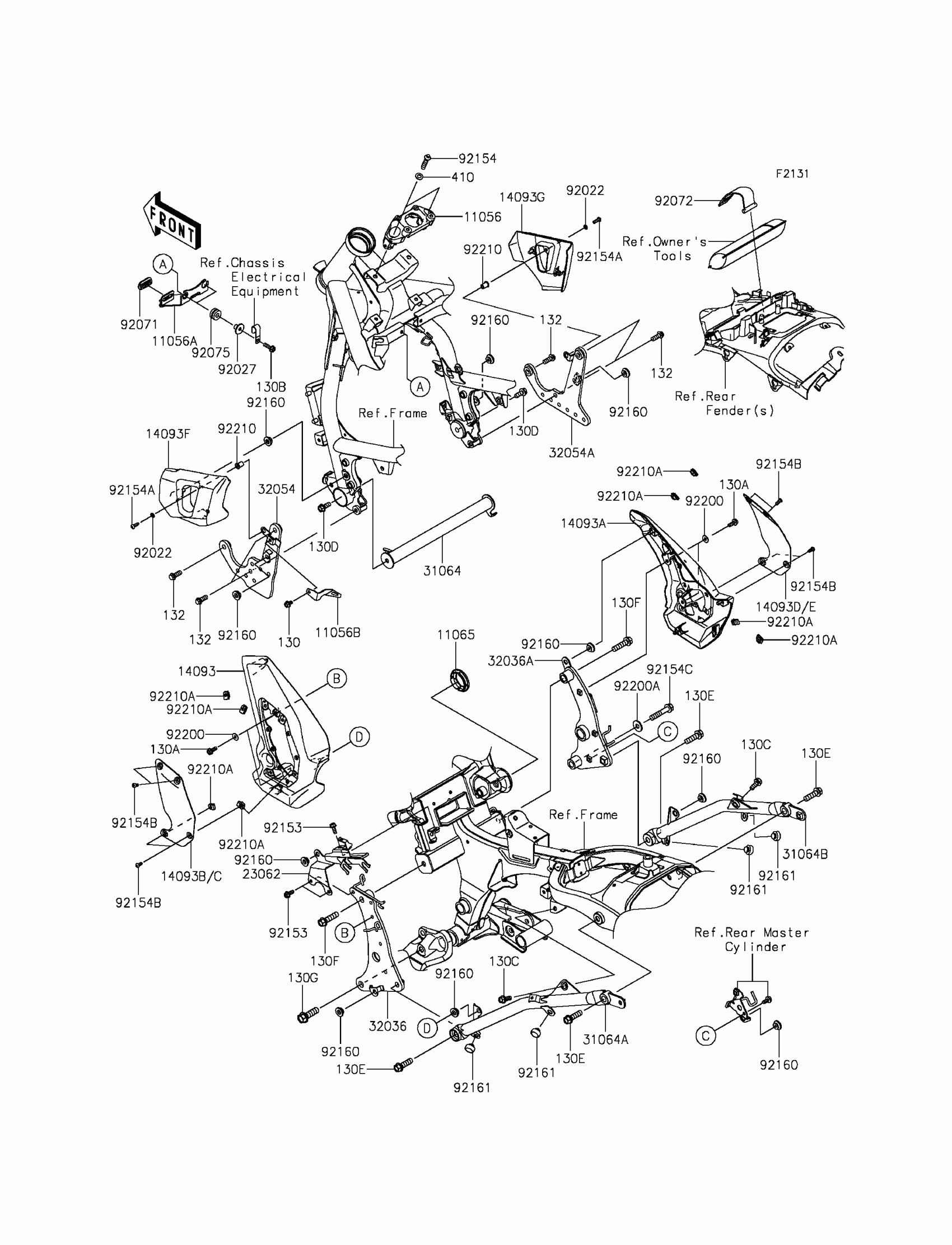

Kawasaki VULCAN® S ABS Frame Fittings Diagram
#
11056
BRACKET,IGNITION SW.
11056-0805
$49.54
11056A
BRACKET,STEP STAY COVER,LH
11056-4456
$5.23
11057
BRACKET,REGULATOR
11057-0177
$15.41
11065
CAP,SHOCK BKT.,F.S.BLACK
11065-0868-18T
$3.60
14093
COVER,PIVOT,LH
14093-0115
$85.99
14093A
COVER,PIVOT,RH
14093-0116
$85.99
14093C
COVER,PIVOT,PLATE,LH,EBONY
14093-0117-H8
$81.06
14093E
COVER,PIVOT,PLATE,RH,EBONY
14093-0118-H8
$81.06
14093F
COVER,STEP STAY,LH,F.S.BLACK
14093-0348-18T
$85.99
14093G
COVER,STEP STAY,RH,F.S.BLACK
14093-0349-18T
$85.99
23062
BRACKET-COMP,SIDE COVER
23062-0822
$24.27
31064
PIPE-COMP,FR FRAME
31064-0649
$22.19
31064A
PIPE-COMP,RR,LH,F.S.BLACK
31064-0652-18R
$165.22
31064B
PIPE-COMP,RR,RH,F.S.BLACK
31064-0653-18R
$165.22
32036
BRACKET-SWINGARM,LH
32036-0349
$96.36
32036A
BRACKET-SWINGARM,RH
32036-0350
$96.36
32054
BRACKET-STEP,LH
32054-0075
$169.05
32054A
BRACKET-STEP,RH
32054-0076
$159.16
92015
NUT,WELL,5MM
92015-1757
$7.29
92022
WASHER,5.1X10X1.0
92022-1977
$3.65
92027
COLLAR,L=13.1,BLACK
92027-1450
$6.22
92071
GROMMET
92071-0013
$5.54
92072
BAND,TOOL
92072-0056
$2.32
92075
DAMPER RUBBER,RR FENR
92075-209
$4.69
92153
BOLT,FLANGED,6X16
92153-0713
$2.12
92154
BOLT,TORX,8X35
92154-0730
$7.58
92154A
BOLT,SOCKET,5X16
92154-1470
$1.48
92154B
BOLT,SOCKET,5X12
92154-1471
$1.48
92154C
BOLT,FLANGED,10X50
92154-1620
$6.52
92160
DAMPER
92160-1613
$3.74
92161
DAMPER,10X20X8
92161-0855
$4.25
92200
WASHER,6.5X16X1.0
92200-0796
$0.85
92200A
WASHER,10.2X25X2.3
92200-1686
$1.97
92210
NUT,PLATE,5MM
92210-0935
$1.97
130
BOLT-FLANGED,6X10
130BA0610
$1.20
130A
BOLT-FLANGED,6X16
130BA0616
$1.20
130B
BOLT-FLANGED,6X22
130BA0622
$1.29
130C
BOLT-FLANGED,8X20
130BA0820
$4.14
130D
BOLT-FLANGED,8X20
130CA0820
$1.71
130E
BOLT-FLANGED,10X35
130CA1035
$6.75
130F
BOLT-FLANGED,10X40
130CA1040
$2.83
130G
BOLT-FLANGED,12X40
130CB1240
$3.29
132
BOLT-FLANGED-SMALL,8X22
132BB0822
$2.06
410
WASHER-PLAIN-SMALL,8MM
410AA0800
$0.96
