Engine Cover(s)

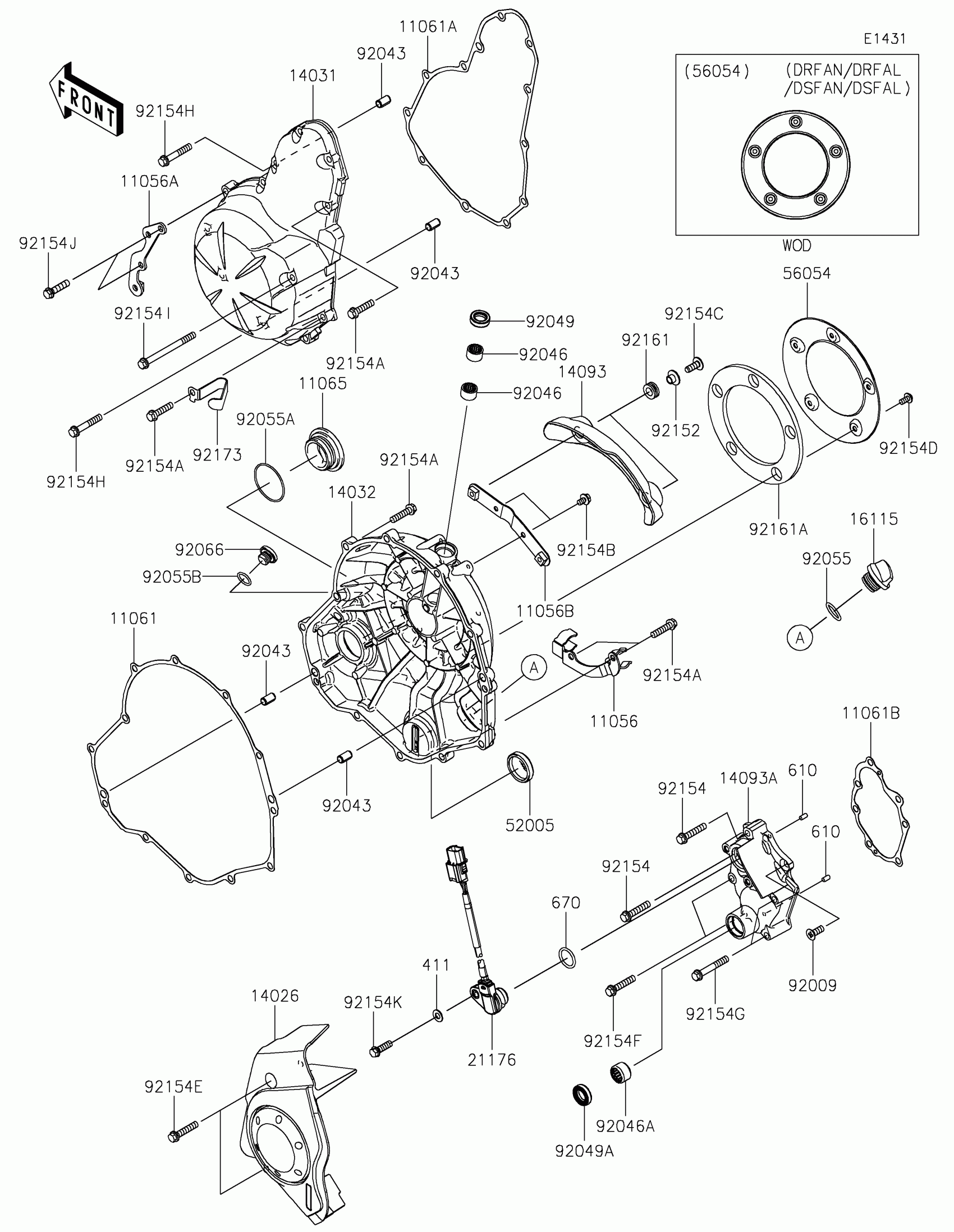

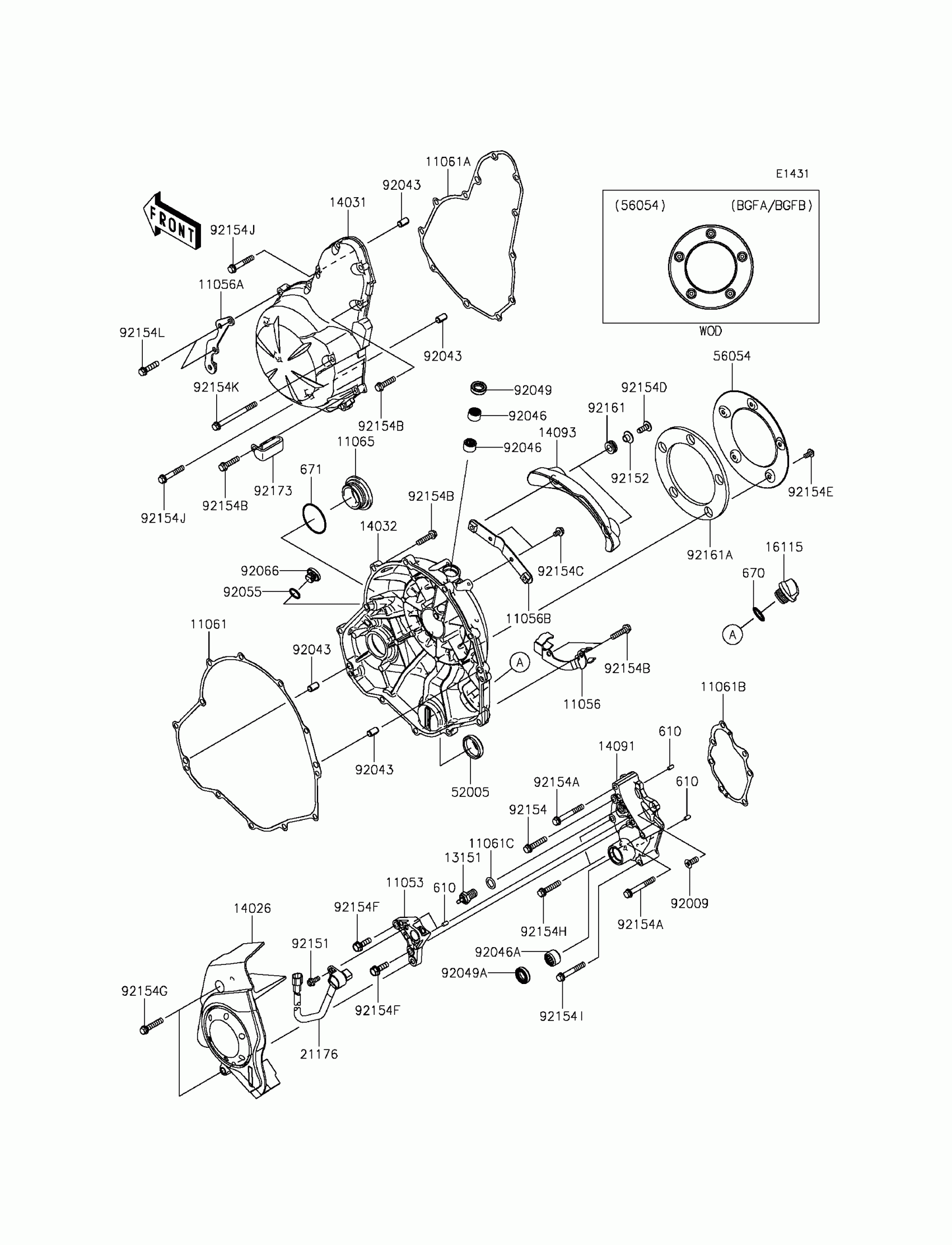

Kawasaki VULCAN® S ABS Engine Cover(s) Diagram
#
11056
BRACKET,BRAKE HOSE,RR
11056-4259
$9.67
11056A
BRACKET,RESERVOIR
11056-4435
$3.94
11056B
BRACKET,RELEASE COVER
11056-7318
$3.94
11061
GASKET,CLUTCH COVER
11061-0164
$21.49
11061A
GASKET,GENERATOR COVER
11061-0165
$12.86
11061B
GASKET,TRANSMISSION COVER
11061-0166
$6.68
11065
CAP
11065-1325
$35.87
14026
COVER-CHAIN
14026-0129
$70.48
14031
COVER-GENERATOR
14031-0599
$121.53
14032
COVER-CLUTCH
14032-0591
$189.25
14093
COVER,CLUTCH RELEASE
14093-0258
$22.55
14093A
COVER,TRANSMISSION
14093-0463
$74.68
16115
CAP-OIL FILLER
16115-1053
$12.20
21176
SENSOR,GEAR POSITION
21176-0832
$151.78
52005
GAUGE,OIL LEVEL
52005-0071
$25.24
56054
MARK,CLUTCH COVER,BLACK
56054-1832-10
$52.61
92009
SCREW,6X16
92009-1360
$4.31
92043
PIN,6.2X8X14
92043-1263
$0.43
92046
BEARING-NEEDLE,HK1210FM
92046-0034
$15.63
92046A
BEARING-NEEDLE,HK1312
92046-1148
$18.74
92049
SEAL-OIL,CLUTCH RELEASE
92049-1475
$4.18
92049A
SEAL-OIL,TC13225.5
92049-1519
$13.55
92055
RING-O,19.8MM
92055-0844
Unavailable
92055A
RING-O,39.4MM
92055-0849
Unavailable
92055B
RING-O,13.0X1.9
92055-1011
$7.62
92066
PLUG,12X9.1
92066-0937
$16.67
92152
COLLAR,6.3X8.3X16
92152-1602
$3.74
92154
BOLT,FLANGED,6X30
92154-0727
$3.02
92154A
BOLT,FLANGED,6X25
92154-0819
$2.32
92154B
BOLT,FLANGED,5X8
92154-0964
$0.85
92154C
BOLT,SOCKET,6X16
92154-1678
$1.71
92154D
BOLT,SOCKET,5X10
92154-1691
$1.48
92154E
BOLT,FLANGED,6X30
92154-1772
$1.19
92154F
BOLT,FLANGED,6X30
92154-1773
$1.19
92154G
BOLT,FLANGED,6X40
92154-1774
$1.48
92154H
BOLT,FLANGED,6X35
92154-1779
$1.71
92154I
BOLT,FLANGED,6X70
92154-1780
$2.26
92154J
BOLT,FLANGED,6X25
92154-1785
$2.49
92154K
BOLT,FLANGED,6X20
92154-2130
$1.17
92161
DAMPER,8.3X16X6.4
92161-0664
$10.05
92161A
DAMPER
92161-1767
$14.39
92173
CLAMP
92173-1689
$2.95
411
WASHER-PLAIN,6MM
411AA0600
$2.92
610
ROLLER,4X8
610A0408
$4.31
670
O RING,18MM
670D2018
$1.91
