Cowling

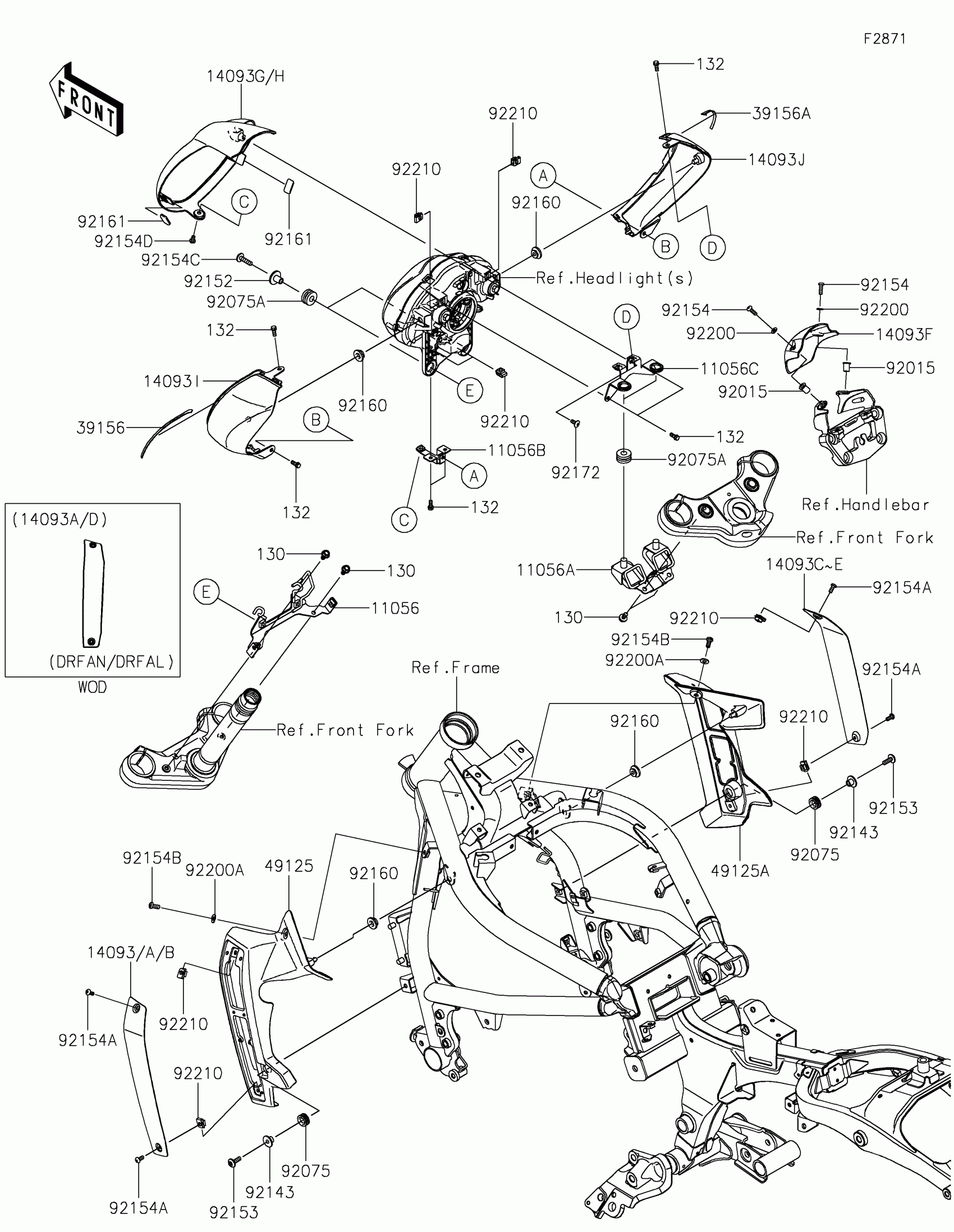

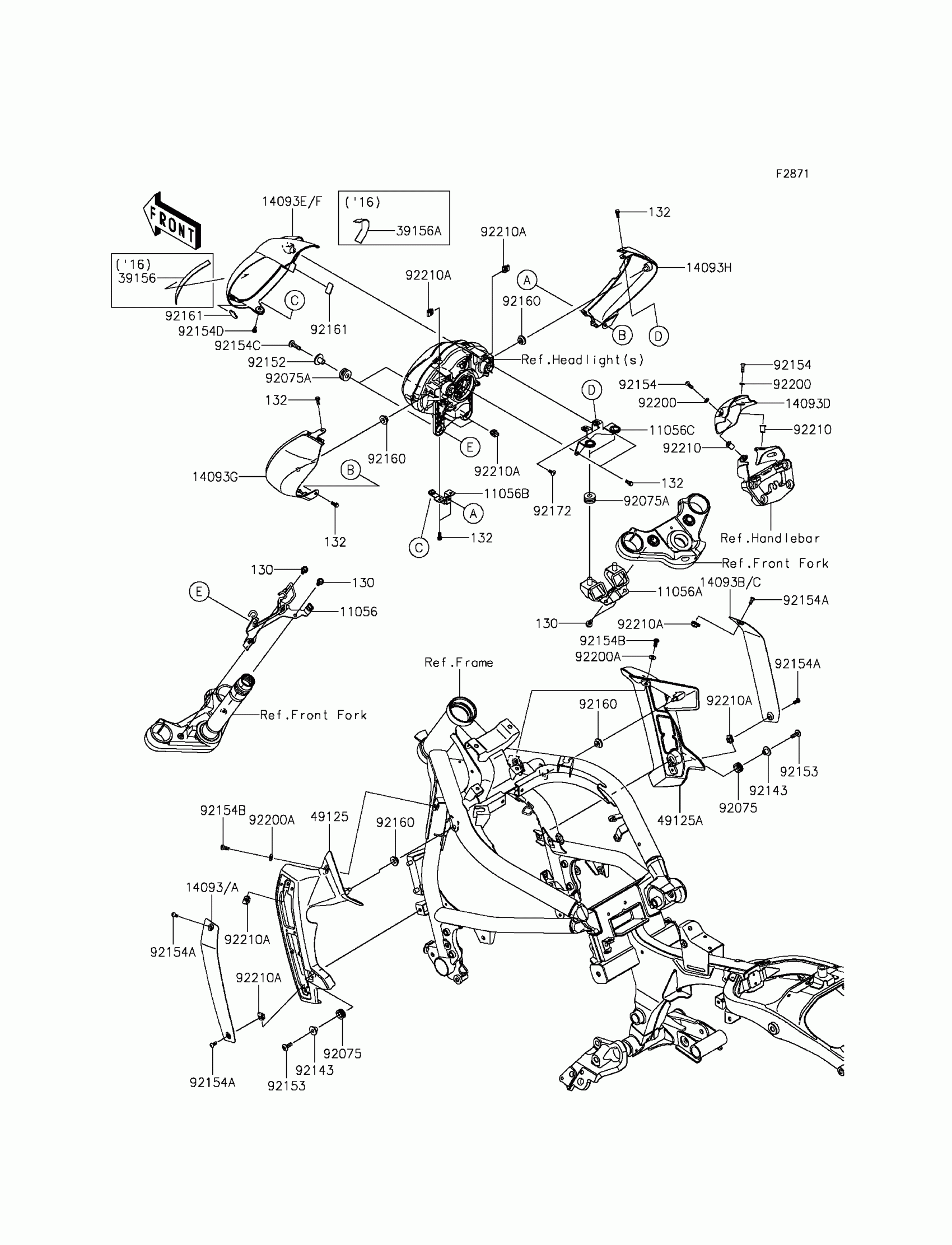

Kawasaki VULCAN® S ABS Cowling Diagram
#
Description
Price
11056
BRACKET,HEAD LAMP,LWR
11056-4110
$17.65
11056A
BRACKET,HEAD LAMP,UPP
11056-4380
$37.73
11056B
BRACKET,HEAD LAMP COVER,LWR
11056-4384
$3.94
11056C
BRACKET,HEAD LAMP COVER,UPP
11056-4385
$12.29
14093A
COVER,SHROUD,LH,P.S.KHAKI
14093-0113-63F
$73.57
14093D
COVER,SHROUD,RH,P.S.KHAKI
14093-0114-63F
$73.57
14093F
COVER,METER
14093-0128
$9.84
14093H
COVER,HEAD LAMP,EBONY
14093-0339-H8
$128.35
14093I
COVER,HEAD LAMP,LH,F.EBONY
14093-0496-45L
$66.48
14093J
COVER,HEAD LAMP,RH,F.EBONY
14093-0497-45L
$66.48
39156
PAD,HEAD LAMP COVER,LH
39156-2120
$4.04
39156A
PAD,HEAD LAMP COVER,RH
39156-2121
$4.04
49125
SHROUD,LH
49125-0586
$65.53
49125A
SHROUD,RH
49125-0587
$65.53
92015
NUT,WELL,5MM
92015-1757
$7.29
92075
DAMPER
92075-1634
$4.69
92075A
DAMPER,10X24X12
92075-1690
$5.00
92143
COLLAR
92143-1962
$6.22
92152
COLLAR,6.5X24X15.3
92152-2106
$3.74
92153
BOLT,6X18
92153-0816
$2.15
92154
BOLT,SOCKET,5X16
92154-1470
$1.48
92154A
BOLT,SOCKET,5X12
92154-1471
$1.48
92154B
BOLT,SOCKET,6X14
92154-1512
$1.83
92154C
BOLT,SOCKET,6X25
92154-1532
$2.34
92154D
BOLT,SOCKET,5X10
92154-1547
$1.48
92160
DAMPER
92160-1613
$3.74
92161
DAMPER,12X23
92161-1367
$1.19
92172
SCREW,5X12
92172-0821
$0.85
92200
WASHER,5.3X11X1
92200-0973
$0.95
92200A
WASHER,6.5X14X1
92200-1388
$2.46
92210
NUT,PLATE,5MM
92210-0935
$1.97
130
BOLT-FLANGED,6X12
130BB0612
$2.34
132
BOLT-FLANGED-SMALL,5X12
132BB0512
$3.67
