2022 Kawasaki Vulcan® S ABS Cafe Water Pipe Diagram

← All diagrams

Find the part on the Water Pipe diagram for your 2022 Kawasaki Vulcan® S ABS Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

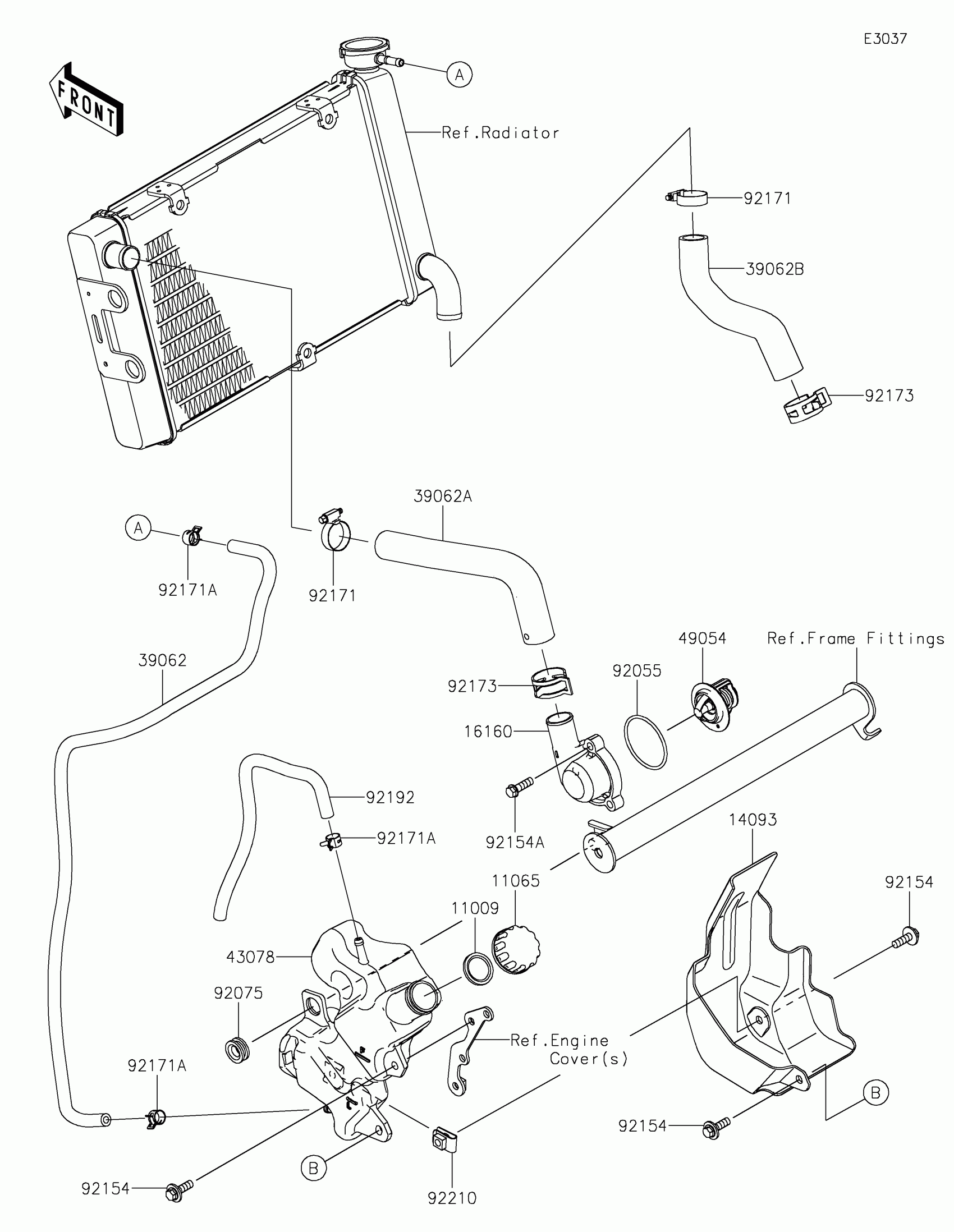

2022 Kawasaki Vulcan® S ABS Cafe Water Pipe Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,RESERVOIR TANK CAP

11009-1145

1
Out of stock

11065

CAP

11065-0969

1
Out of stock

14093

COVER,RESERVOIR

14093-0098

1
Out of stock

16160

BODY,THERMOSTAT

16160-0830

1
Out of stock

39062

1

$10.93

In stock

39062A

1

$9.76

In stock

39062B

1

$11.66

In stock

43078

RESERVOIR

43078-0584

1
Out of stock

49054

THERMOSTAT

49054-0001

1
Out of stock

92055

RING-O,46.7X2.4

92055-0992

1
Out of stock

92075

DAMPER

92075-1634

1
Out of stock

92154

BOLT,FLANGED-WP,6X20

92154-1577

1
Out of stock

92154A

BOLT,FLANGED,6X20

92154-1778

1
Out of stock

92171

CLAMP

92171-0337

1

$7.84

In stock

92171A

CLAMP,10.5X8X0.7

92171-1992

1
Out of stock

92173

CLAMP

92173-1416

1
Out of stock

92192

TUBE,BREATHER

92192-1387

1
Out of stock

92210

NUT,CLIP,6MM

92210-0933

1
Out of stock
