2020 Kawasaki Vulcan® S ABS Cafe Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2020 Kawasaki Vulcan® S ABS Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

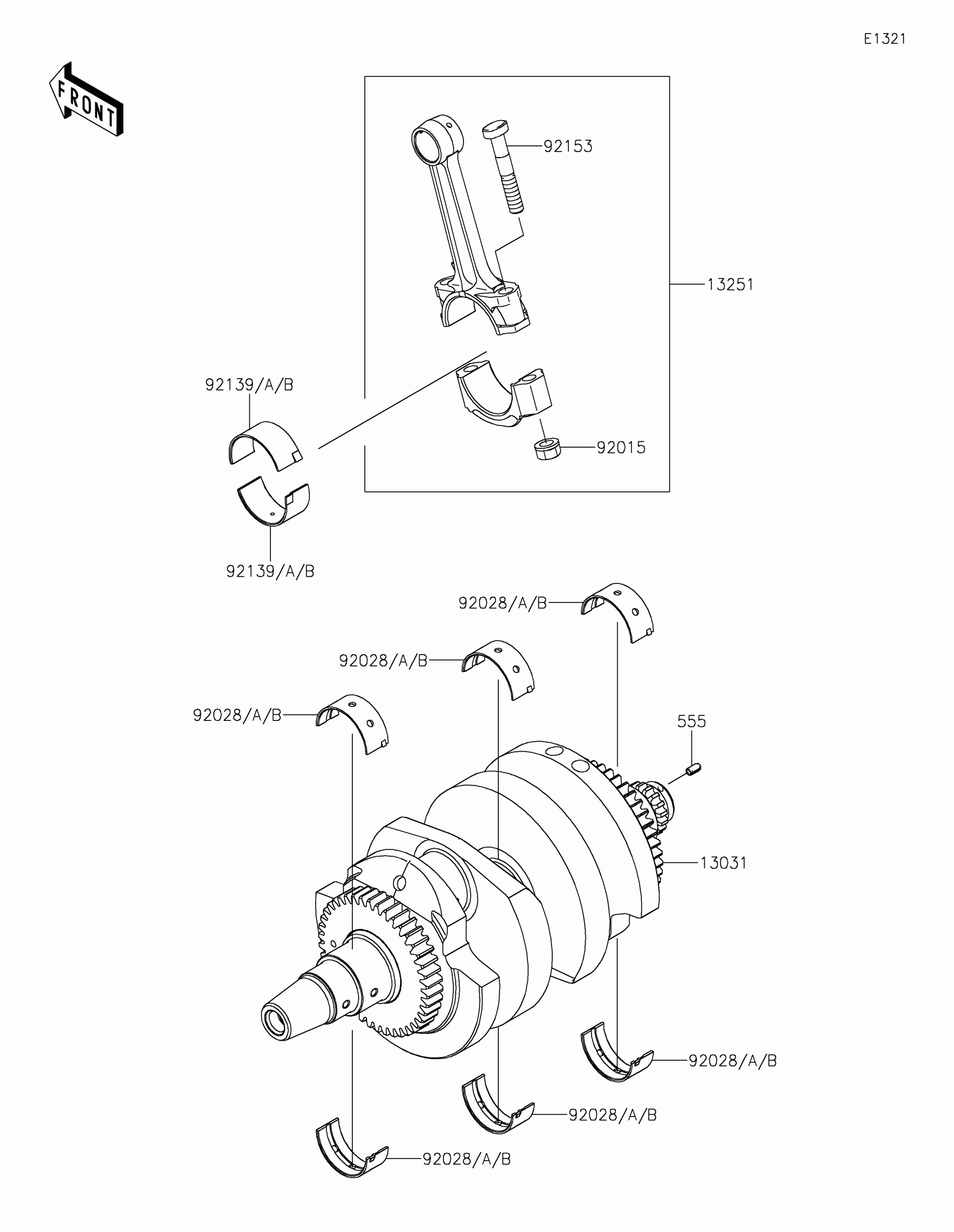

2020 Kawasaki Vulcan® S ABS Cafe Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-0803

1
Out of stock

13251

ROD-ASSY-CONNECTING,K

13251-0010-KK

1
Out of stock

555

PIN-SPRING,4X8

555A0408

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1311

1
Out of stock

92028

BUSHING,CRANKSHAFT,BLUE

92028-1903

1
Out of stock

92028A

BUSHING,CRANKSHAFT,BLACK

92028-1904

—
Out of stock

92028B

BUSHING,CRANKSHAFT,BROWN

92028-1905

—
Out of stock

92139

BUSHING,CON-ROD,BLUE

92139-0114

1
Out of stock

92139A

BUSHING,CON-ROD,BLACK

92139-0115

—
Out of stock

92139B

BUSHING,CON-ROD,BROWN

92139-0116

—
Out of stock

92153

BOLT,CON-ROD,8X49

92153-0957

1
Out of stock
