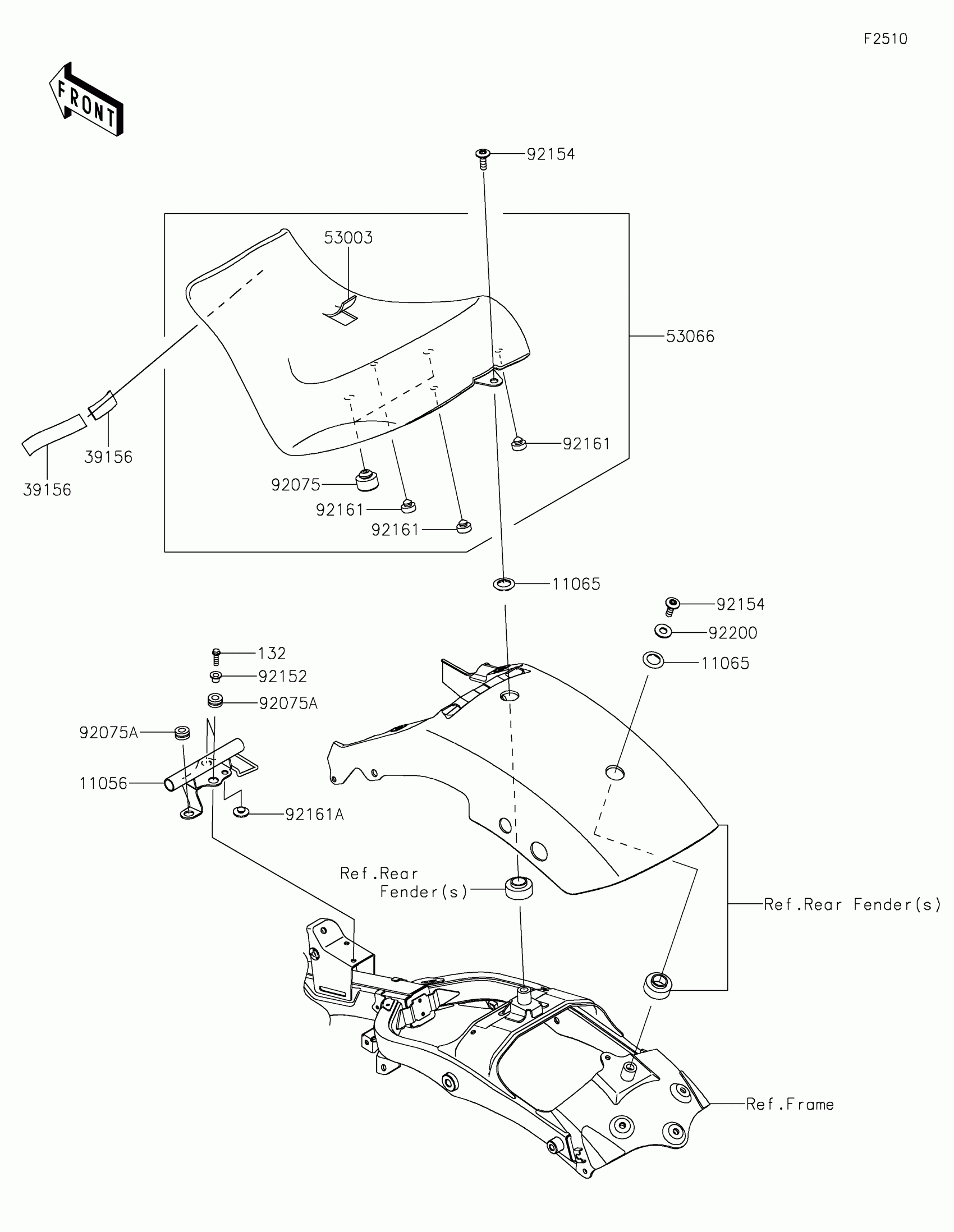

Kawasaki Vulcan® S ABS CAFE Seat Diagram

Description

Price

11056

BRACKET,SEAT

11056-4009

$24.54

11065

CAP

11065-0872

$1.18

39156

PAD,20X100X2

39156-1934

$2.71

53003

LEATHER,FR SEAT,BLACK

53003-0567-MA

$175.15

53066

SEAT-ASSY,FR,BLACK

53066-0734-MA

$230.25

92075

DAMPER

92075-015

$5.00

92075A

DAMPER

92075-1880

$1.63

92152

COLLAR,6.8X10X11.6

92152-0977

$3.02

92154

BOLT,SOCKET,8X25

92154-1805

$5.54

92161

DAMPER,10X20X8

92161-0855

$4.25

92161A

DAMPER,8X22X10

92161-1685

$0.88

92200

WASHER,10.5X24X2

92200-0987

$2.49

132

BOLT-FLANGED-SMALL,6X20

132BA0620

$2.49
