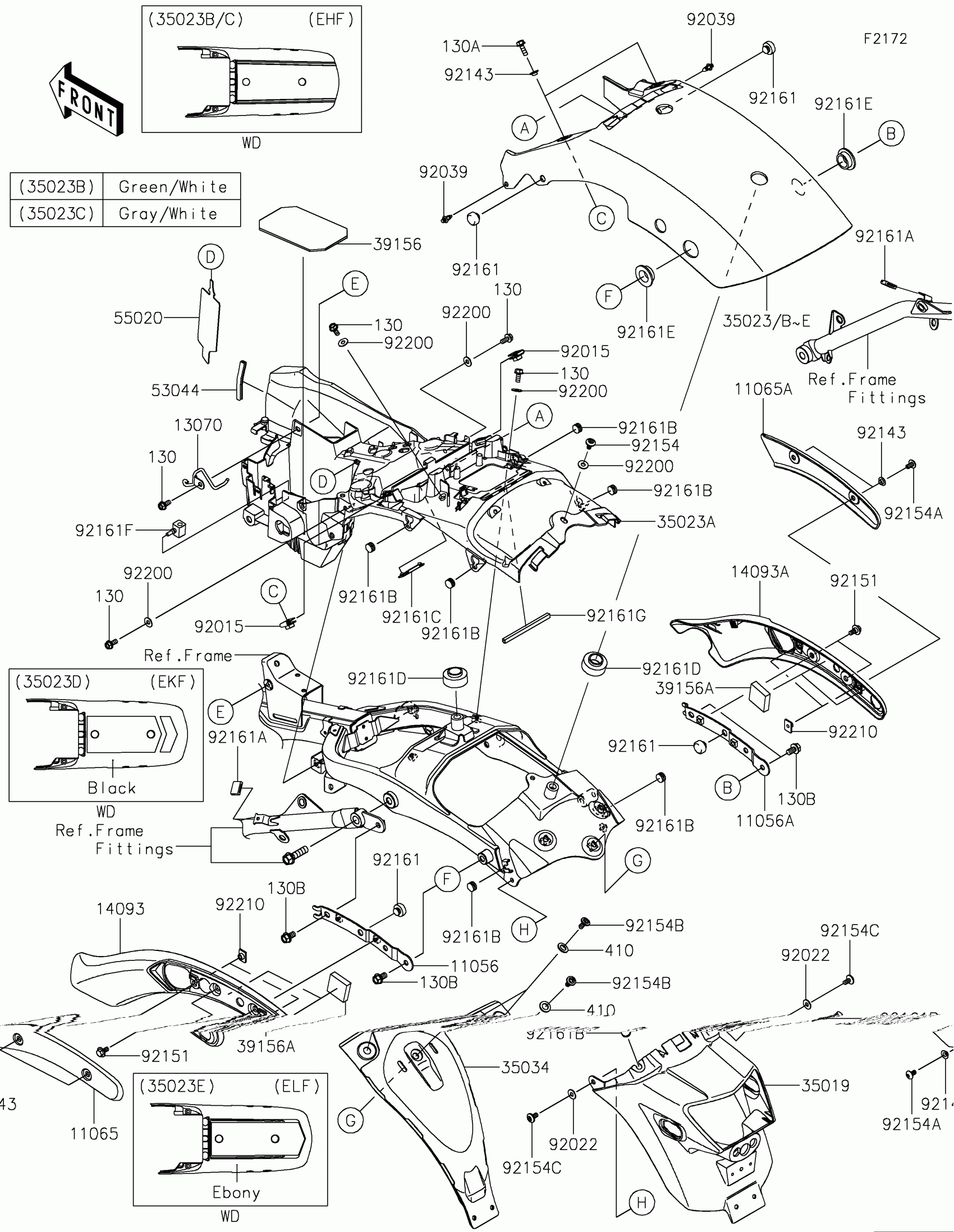

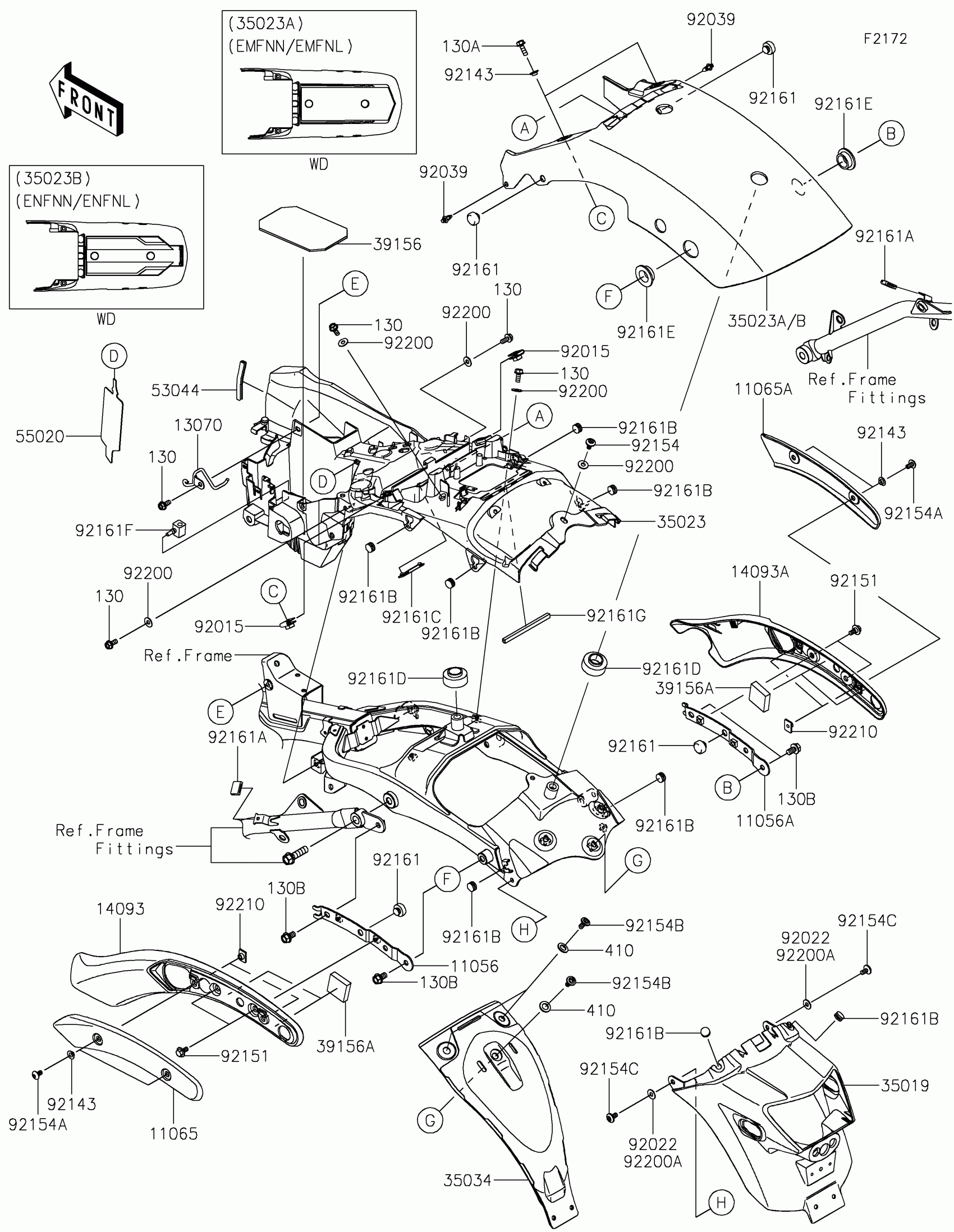

Kawasaki VULCAN® S ABS CAFE Rear Fender(s) Diagram

#

Description
Price

11056

BRACKET,STRUT COVER,LH

11056-3997

$11.51

11056A

BRACKET,STRUT COVER,RH

11056-3998

$11.51

11065

CAP,LH,F.S.BLACK

11065-0864-18T

$31.84

11065A

CAP,RH,F.S.BLACK

11065-0865-18T

$31.84

130

BOLT-FLANGED,6X14

130BA0614

$1.20

13070

GUIDE

13070-0791

$5.39

14093

COVER,STRUT,LH,F.S.BLACK

14093-0103-18T

$215.91

14093A

COVER,STRUT,RH,F.S.BLACK

14093-0104-18T

$215.91

35019

FLAP

35019-0595

$67.09

35023A

FENDER-REAR

35023-0407

$80.00

35023E

FENDER-REAR,EBONY

35023-5327-H8

$358.67

35034

REINFORCE

35034-0593

$119.33

39156

PAD

39156-1829

$4.78

39156A

PAD,35X35X10

39156-1901

$4.04

53044

TRIM,L=65

53044-0584

$2.73

55020

GUARD

55020-1881

$14.00

92015

NUT,6MM

92015-1094

$8.58

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92039

RIVET

92039-0709

$2.67

92143

COLLAR

92143-1331

$3.94

92151

BOLT,FLANGED,6X13

92151-1703

$3.94

92154

BOLT,SOCKET,6X12

92154-0951

$1.63

92154A

BOLT,SOCKET,6X12

92154-1484

$2.46

92154B

BOLT,SOCKET,8X14

92154-1769

$5.00

92154C

BOLT,SOCKET,6X12

92154-1788

$2.49

92161

DAMPER,10X20X8

92161-0855

$4.25

92161A

DAMPER,15X21X5.5

92161-1472

$3.02

92161B

DAMPER,8X14X8.9

92161-1666

$1.48

92161C

DAMPER,GPS HOLE

92161-1682

$2.49

92161D

DAMPER

92161-1683

$3.54

92161E

DAMPER

92161-1693

$1.97

92161F

DAMPER,TOOL WRENCH

92161-1760

$3.02

92161G

DAMPER,7X6X100

92161-1761

$6.24

92200

WASHER,6.5X16X1.0

92200-0796

$0.85

92210

NUT,PLATE,6MM

92210-1352

$2.41

130A

BOLT-FLANGED,6X18

130BA0618

$1.54

130B

BOLT-FLANGED,8X14

130BA0814

$2.16

410

WASHER-PLAIN-SMALL,10MM

410AA1000

$0.59
