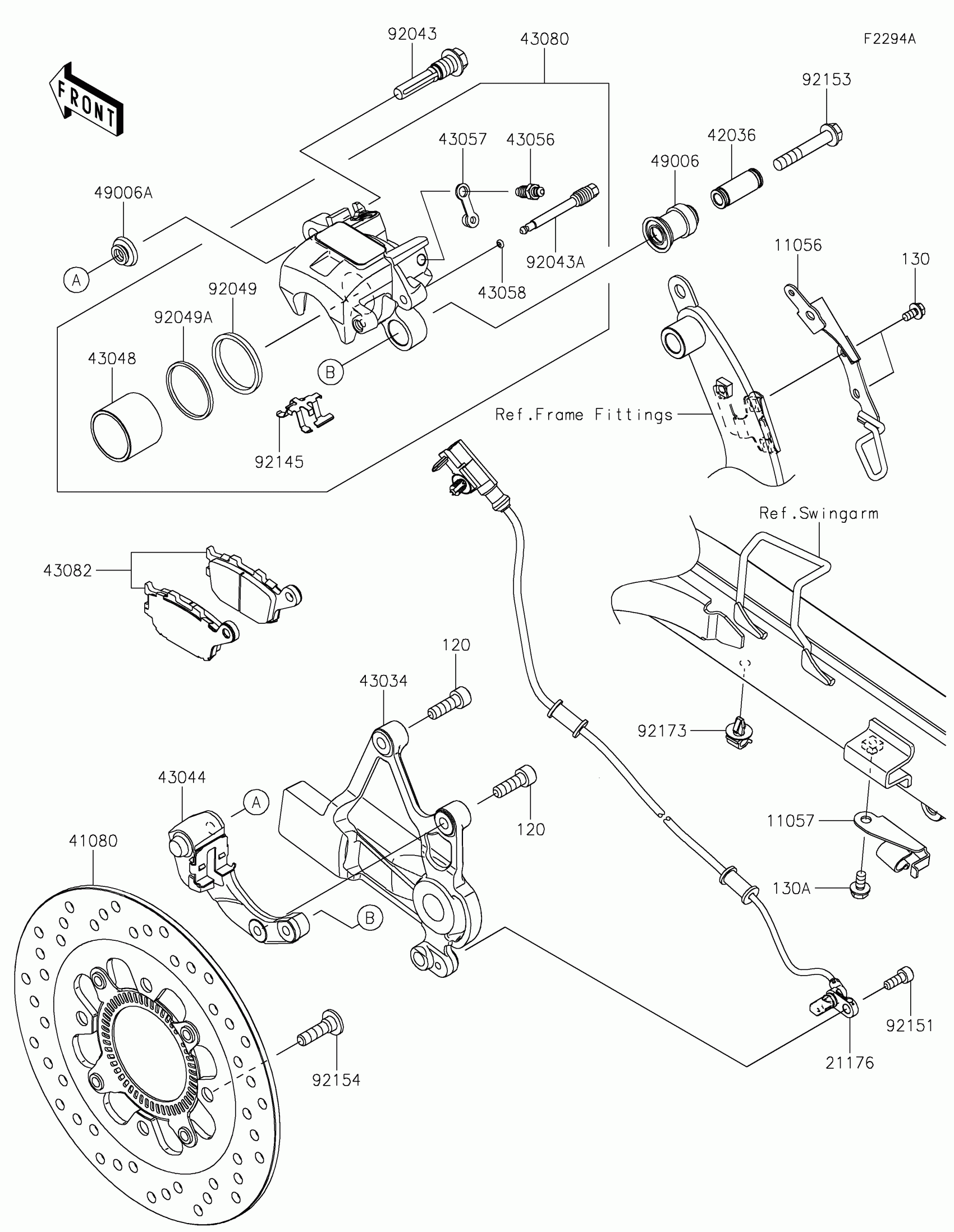

Kawasaki Vulcan® S ABS CAFE Rear Brake(ENFNN/ENFNL) Diagram

Description

Price

11056

BRACKET,SENSOR

11056-4199

$11.77

11057

BRACKET,SWINGARM,LWR

11057-3989

$5.55

21176

SENSOR,RR WHEEL SPEED

21176-0954

$146.40

41080

DISC,RR,W/R,BLACK

41080-0628-11H

$350.84

42036

SLEEVE

42036-0050

$7.75

43034

HOLDER-BRAKE,RR

43034-0161

$147.92

43044

HOLDER-COMP-CALIPER

43044-0080

$152.44

43048

PISTON-CALIPER

43048-0008

$30.46

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43058

RING,STOPPER

43058-1100

$11.70

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0156-DJ

$312.25

43082

PAD-ASSY-BRAKE

43082-0155

$68.30

49006

BOOT

49006-0058

$13.48

49006A

BOOT,CALIPER

49006-1242

$5.46

92043

92043-0137

$13.60

92043A

PIN,HANGER

92043-0820

$7.32

92049

SEAL-OIL

92049-1449

$5.00

92049A

SEAL-OIL

92049-1450

$4.31

92145

SPRING,PAD

92145-0493

$7.69

92151

BOLT

92151-1166

$2.26

92153

BOLT,FLANGED

92153-1826

$10.30

92154

BOLT,SOCKET,8X30

92154-0844

$4.10

92173

CLAMP,CABLE CLIP

92173-1022

$1.63

120

BOLT-SOCKET,8X25

120CB0825

$4.69

130

BOLT-FLANGED,5X10

130BA0510

$1.71

130A

BOLT-FLANGED,6X12

130BA0612

$1.72
