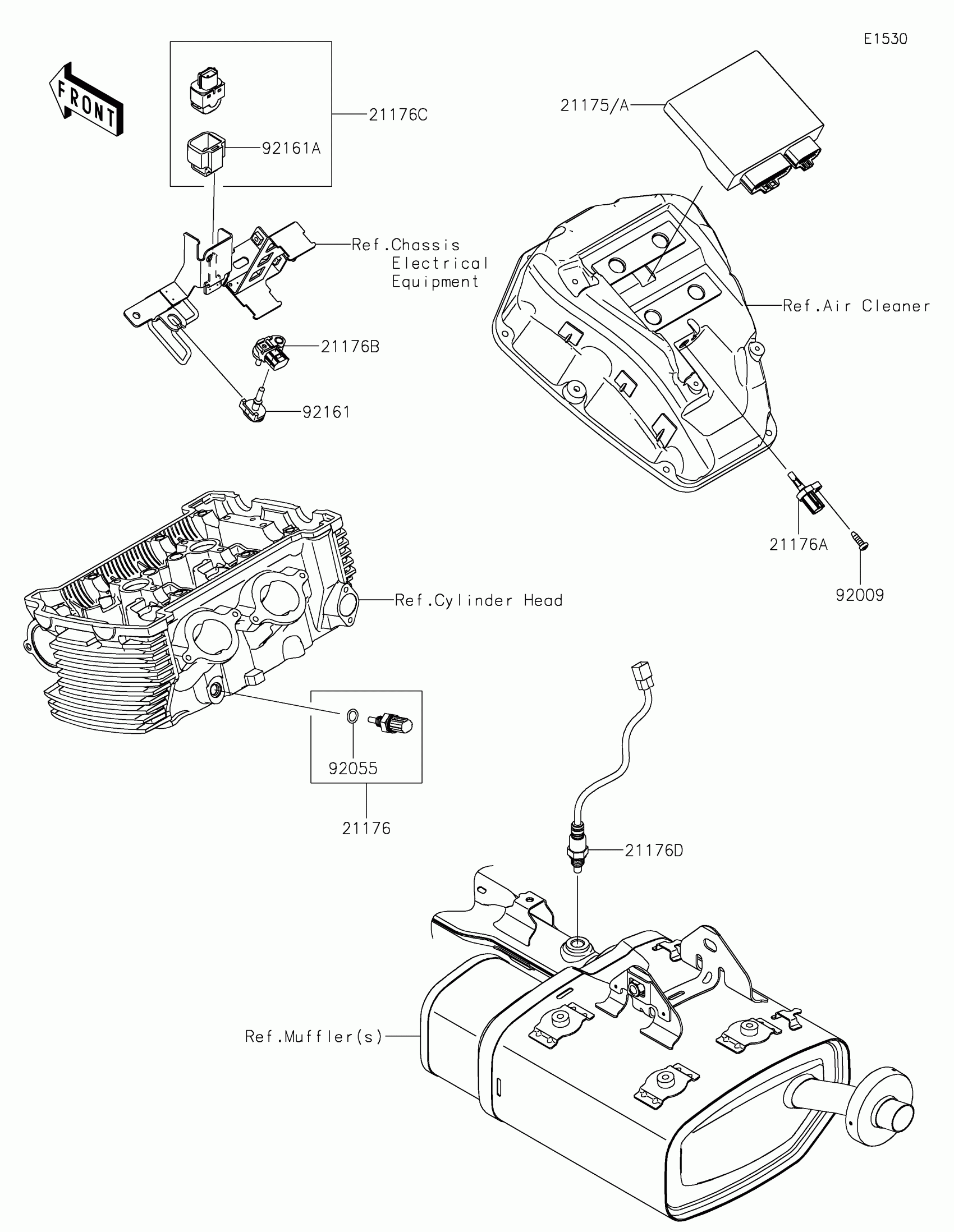

Find the part on the Fuel Injection diagram for your 2022 Kawasaki Vulcan® S ABS Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Kawasaki Vulcan® S ABS Cafe Fuel Injection Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21175

CONTROL UNIT-ELECTRONIC

21175-1196

1
Out of stock

21175A

CONTROL UNIT-ELECTRONIC

21175-1197

1
Out of stock

21176

SENSOR,WATER TEMP

21176-0009

1
Out of stock

21176A

SENSOR,AIR TEMPERATURE

21176-0048

1
Out of stock

21176B

SENSOR,PRESSURE

21176-0111

1
Out of stock

21176C

SENSOR,VEHICLE-DOWN

21176-0704

1
Out of stock

21176D

SENSOR,OXYGEN

21176-0775

1
Out of stock

92009

SCREW,TAPPING,5X16

92009-1984

1
Out of stock

92055

RING-O,9.5X1.9

92055-0016

1
Out of stock

92161

DAMPER

92161-0673

1
Out of stock

92161A

DAMPER

92161-0951

1
Out of stock
