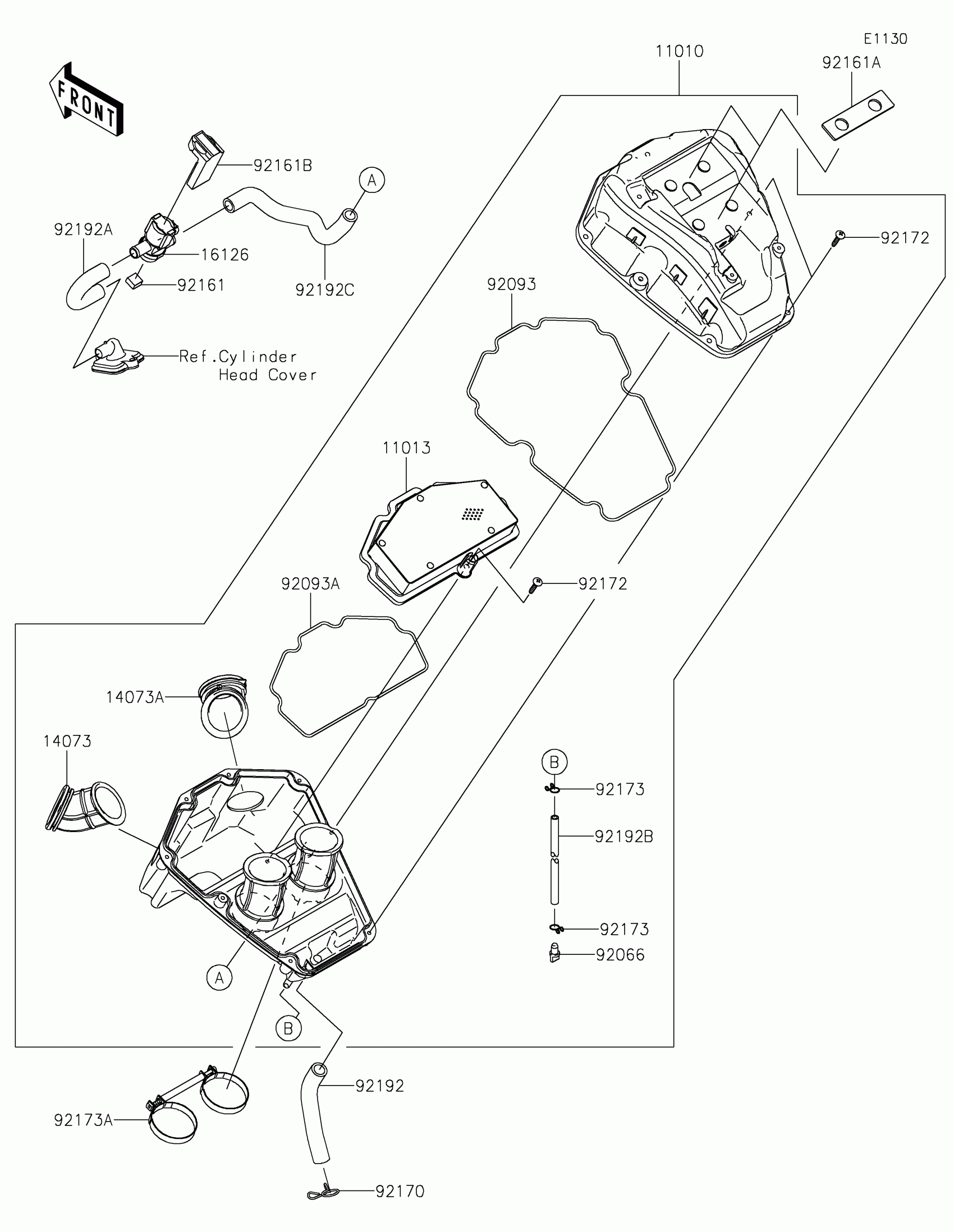

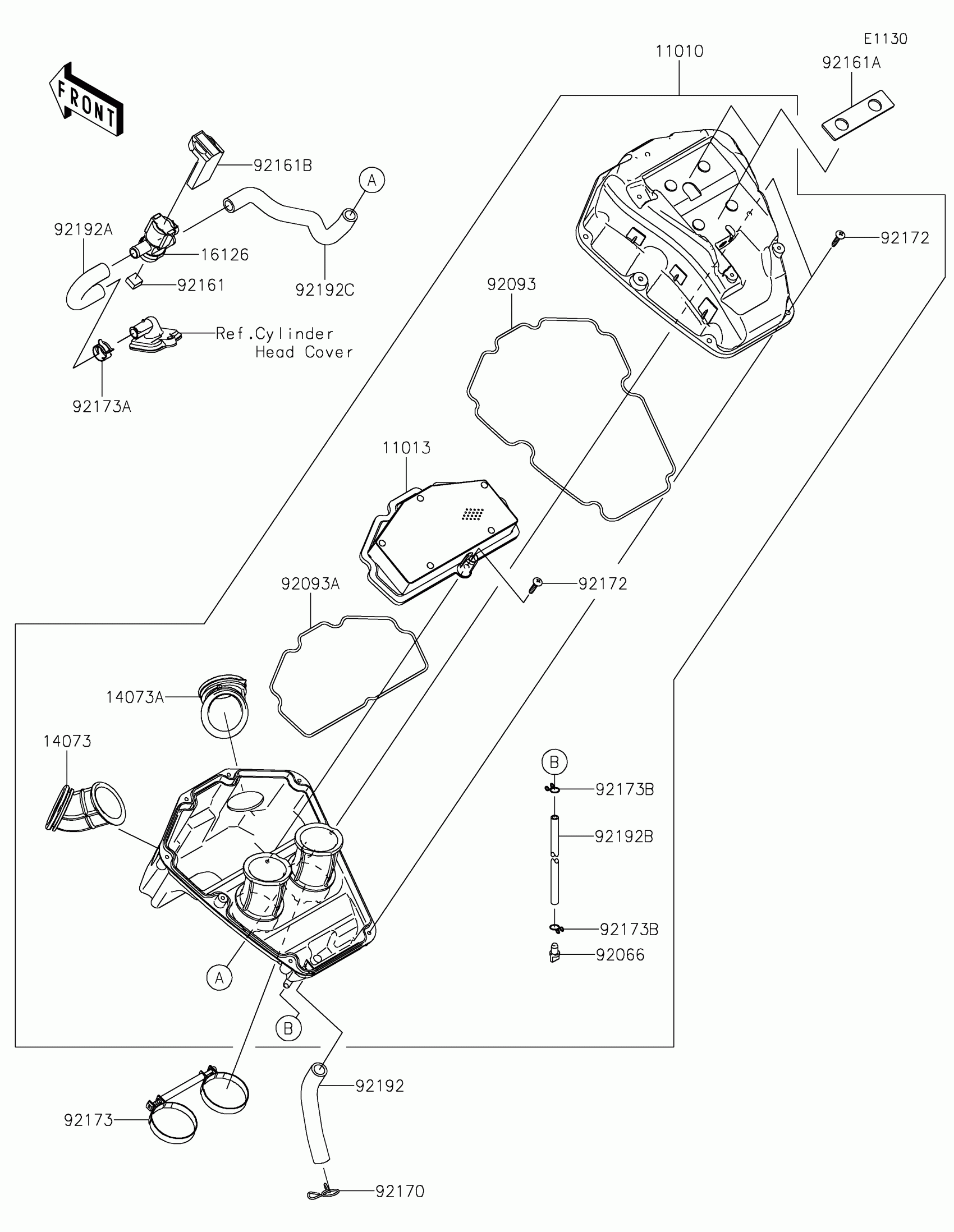

2020 Kawasaki Vulcan® S ABS Cafe AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2020 Kawasaki Vulcan® S ABS Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Vulcan® S ABS Cafe AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-0856

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-0745

1
Out of stock

14073

DUCT,INTAKE,LH

14073-0799

1

$29.63

In stock

14073A

DUCT,INTAKE,RH

14073-0800

1

$29.63

In stock

16126

VALVE,AIR SWITCHING

16126-0743

1
Out of stock

92066

PLUG,DRAIN

92066-0782

1
Out of stock

92093

SEAL

92093-0610

1
Out of stock

92093A

SEAL,ELEMENT

92093-0611

1
Out of stock

92161

DAMPER

92161-1374

1
Out of stock

92161A

DAMPER

92161-1428

1
Out of stock

92161B

DAMPER

92161-1933

1

$13.81

In stock

92170

CLAMP

92170-1017

1

$3.72

In stock

92172

SCREW,5X25

92172-0891

1
Out of stock

92173

CLAMP,10MM

92173-1044

1
Out of stock

92173A

CLAMP

92173-1698

1
Out of stock

92192

TUBE,BREATHER

92192-0958

1
Out of stock

92192A

TUBE,ASV-HEAD

92192-0960

1
Out of stock

92192B

TUBE,DRAIN,L=245

92192-1380

1
Out of stock

92192C

TUBE,ASV-A/C

92192-1381

1
Out of stock
