2022 Kawasaki Vulcan® S ABS Cafe Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2022 Kawasaki Vulcan® S ABS Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

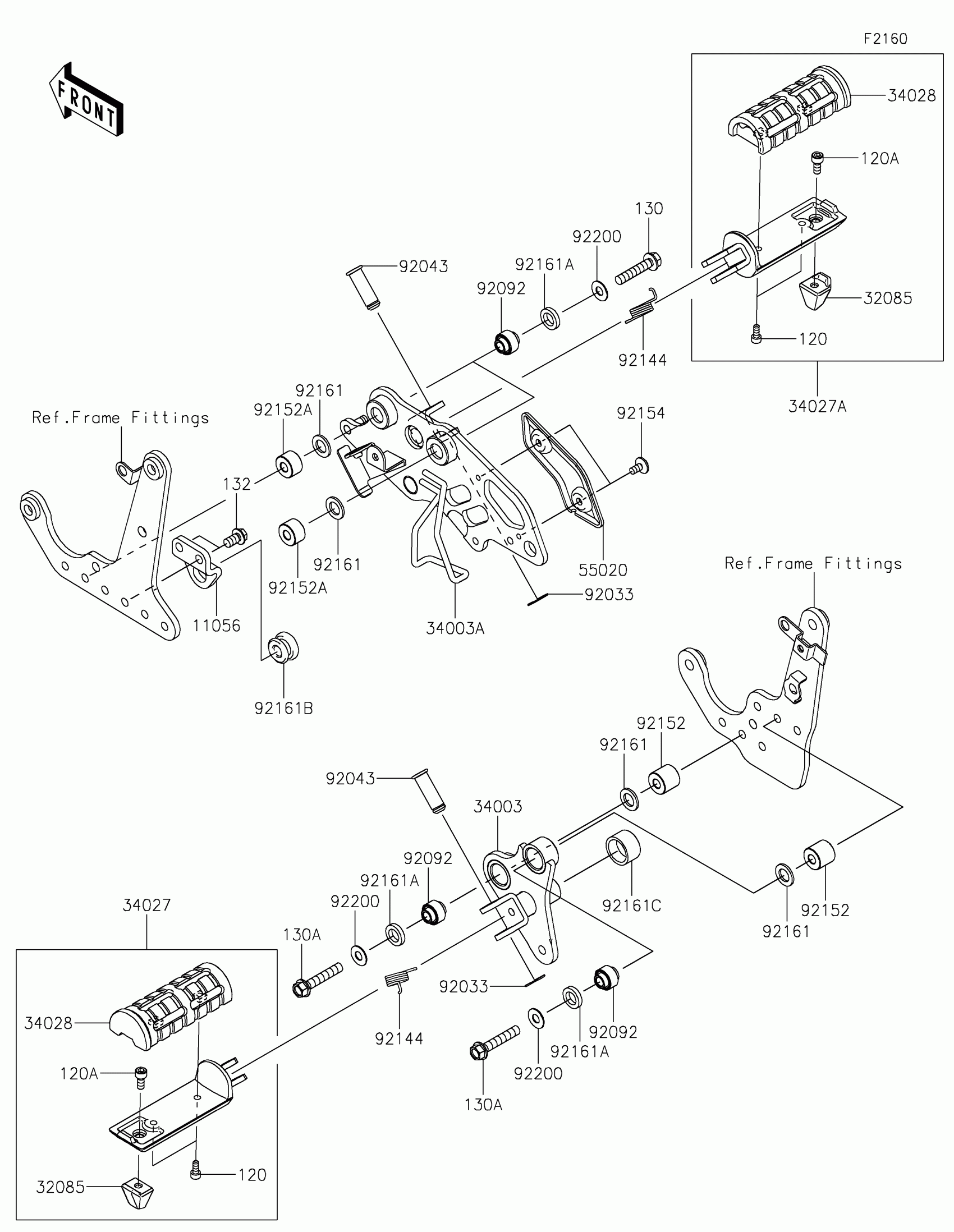

2022 Kawasaki Vulcan® S ABS Cafe Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,STEP,FR,RH

11056-7031

1
Out of stock

32085

STOPPER,BANK SENSOR

32085-0770

1
Out of stock

34003

HOLDER-STEP,LH

34003-0141

1
Out of stock

34003A

HOLDER-STEP,RH

34003-0156

1
Out of stock

34027

STEP-ASSY,LH

34027-0012

1

$83.40

In stock

34027A

STEP-ASSY,RH

34027-0013

1

$83.40

In stock

34028

STEP,RUBBER

34028-0338

1

$14.07

In stock

55020

GUARD,STEP HOLDER,RH

55020-1880

1
Out of stock

92033

RING-SNAP,10MM

92033-1166

1
Out of stock

92043

PIN,12X37

92043-1358

1
Out of stock

92092

BUSHING-RUBBER,8.4X20X18

92092-1018-SP

1
Out of stock

92144

SPRING,STEP RETURN

92144-1126

1
Out of stock

92152

COLLAR,8.4X21X19

92152-1952

1
Out of stock

92152A

COLLAR,8.4X21X13

92152-1953

1
Out of stock

92154

BOLT,SOCKET,6X12

92154-0951

1
Out of stock

92161

DAMPER,12.5X21X2

92161-0943

1
Out of stock

92161A

DAMPER,12.5X20X4

92161-0944

1
Out of stock

92161B

DAMPER

92161-1523

1

$3.27

In stock

92161C

DAMPER,21.5X27.5X16

92161-1702

1

$2.64

In stock

92200

WASHER,8.5X19X1

92200-1733

1
Out of stock

120

BOLT-SOCKET,5X12

120CB0512

1
Out of stock

120A

BOLT-SOCKET,6X14

120CB0614

1
Out of stock

130

BOLT-FLANGED,8X40

130BB0840

1

$3.72

In stock

130A

BOLT-FLANGED,8X45

130BB0845

1

$2.63

In stock

132

1

$2.20

In stock
