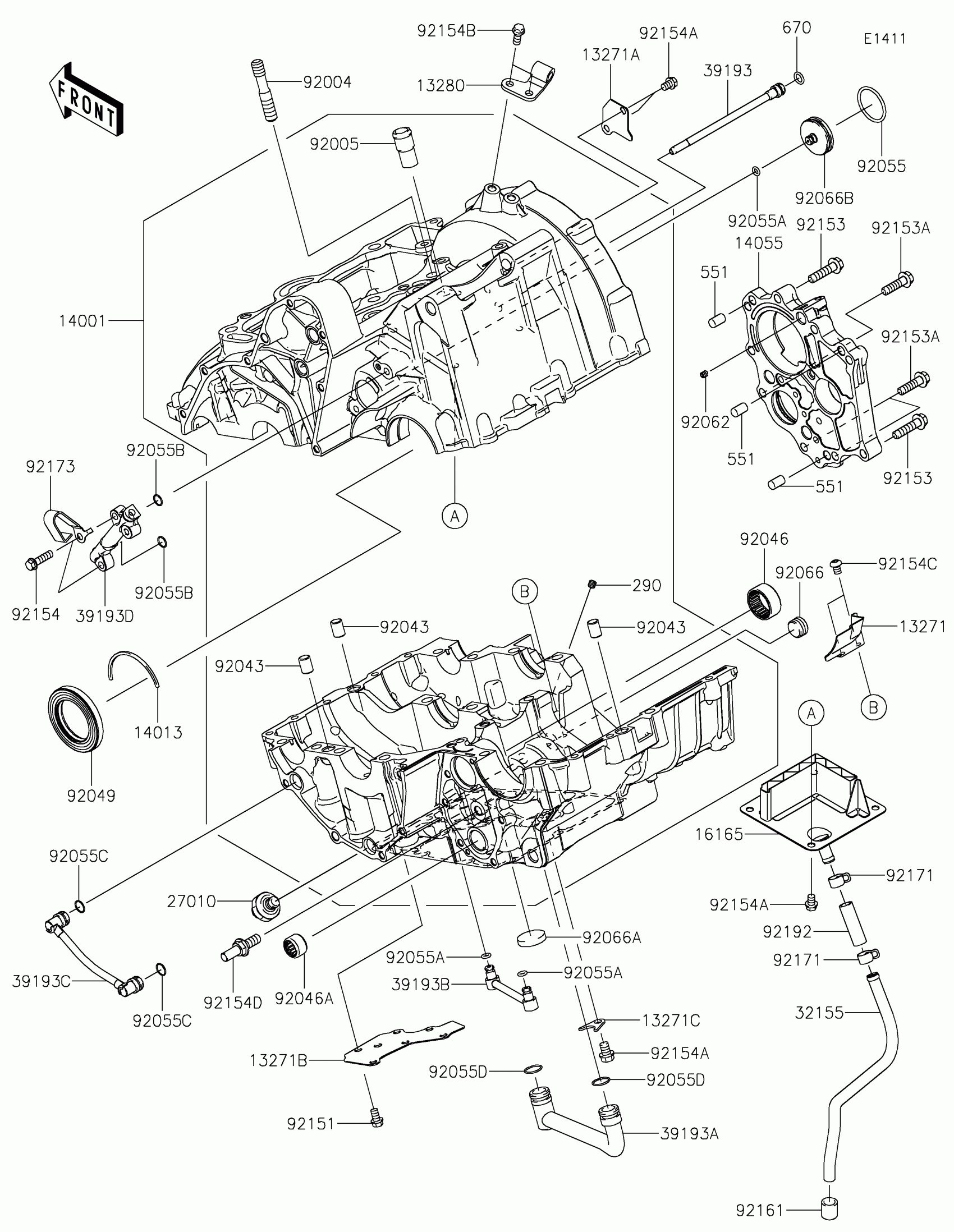

Kawasaki VULCAN® S ABS CAFE Crankcase Diagram

#

Description
Price

13271

PLATE,OIL SHIELDING

13271-0575

$20.37

13271A

PLATE

13271-0577

$2.61

13271B

PLATE

13271-0584

$4.65

13271C

PLATE,OIL PIPE

13271-1187

$2.67

13280

HOLDER,CLUTCH CABLE

13280-0224

$8.60

14001

SET-CRANKCASE

14001-0556

$950.39

14013

RING-POSITION,T=1.98

14013-1004

$4.96

14055

CASE-GEAR,TRANSMISSION

14055-0051

$105.88

16165

SEPARATOR,BREATHER

16165-0056

$61.36

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

32155

PIPE,BREATHER

32155-0891

$14.18

39193

PIPE-OIL

39193-0564

$29.30

39193A

PIPE-OIL

39193-0565

$49.63

39193B

PIPE-OIL

39193-0566

$27.54

39193C

PIPE-OIL

39193-0567

$49.63

39193D

PIPE-OIL

39193-0569

$74.86

92004

STUD,10X34.5

92004-0024

$8.60

92005

FITTING,BREATHER

92005-0713

$12.20

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92046

BEARING-NEEDLE,24BTM3013

92046-0017

$14.01

92046A

BEARING-NEEDLE,HK1312

92046-1148

$18.74

92049

SEAL-OIL,HTC40628

92049-1501

$10.16

92055

RING-O,29.7X2.4

92055-0006

$6.18

92055A

RING-O,4.8MM

92055-0845

Unavailable

92055B

RING-O,8.8MM

92055-0846

Unavailable

92055C

RING-O,9.8MM

92055-0847

Unavailable

92055D

RING-O,13.8MM

92055-0848

Unavailable

92062

NOZZLE,5X6,SILVER

92062-1086

$4.13

92066

PLUG,PT3/8X10

92066-0003

$3.31

92066A

PLUG,25X5

92066-0061

$5.60

92066B

PLUG,INPUT SHAFT

92066-0715

$20.44

92151

BOLT,FLANGED-SMALL,6X10

92151-1389

$2.34

92153

BOLT,8X20

92153-0530

$6.18

92153A

BOLT,FLANGED,6X30

92153-0962

$3.39

92153B

BOLT,FLANGED,7X26

92153-0963

$3.39

92154

BOLT,FLANGED,6X22

92154-0504

$1.94

92154A

BOLT,FLANGED,6X8

92154-0726

$1.94

92154B

BOLT,FLANGED,6X14

92154-0813

$2.32

92154C

BOLT,SOCKET,6X8

92154-1506

$1.71

92161

DAMPER

92161-0267

$3.90

290

SCREW-SET-SOCKET,6X6

290Q0606

$6.34

551

PIN-DOWEL,8X14

551A0814

$1.19

670

O RING,8MM

670D1508

$4.31

92171

CLAMP

92171-1053

$1.08

92173

CLAMP

92173-0059

$7.60

92192

TUBE,9X12X38

92192-0225

$3.87
