Description

Price

11056

BRACKET,HEAD LAMP,UPP

11056-4380

$37.73

11056A

BRACKET,HEAD LAMP COVER,LWR

11056-4384

$3.94

11056B

BRACKET,HEAD LAMP COVER,UPP

11056-4385

$12.29

11057

BRACKET,LH,INNER

11057-0215

$77.81

11057A

BRACKET,RH,INNER

11057-0217

$77.81

11057B

BRACKET,LH

11057-0220

$41.43

11057C

BRACKET,RH

11057-0221

$41.43

11057D

BRACKET,HEAD LAMP,LWR

11057-0706

$17.65

11057E

BRACKET,LH,OUTER

11057-0857

$102.40

11057F

BRACKET,RH,OUTER

11057-0858

$102.40

14093A

COVER,SHROUD,LH,EBONY

14093-0113-H8

$73.57

14093C

COVER,SHROUD,RH,EBONY

14093-0114-H8

$73.57

14093D

COVER,METER

14093-0128

$9.84

14093E

COVER,HEAD LAMP,EBONY

14093-0339-H8

$128.35

14093F

COVER,HEAD LAMP,LH,F.EBONY

14093-0496-45L

$66.48

14093G

COVER,HEAD LAMP,RH,F.EBONY

14093-0497-45L

$66.48

39156

PAD,HEAD LAMP COVER,LH

39156-2120

$4.04

39156A

PAD,HEAD LAMP COVER,RH

39156-2121

$4.04

49125

SHROUD,LH

49125-0586

$65.53

49125A

SHROUD,RH

49125-0587

$65.53

59254

DEFLECTOR

59254-0005

$176.04

92015

NUT,WELL,5MM

92015-1757

$7.29

92071

GROMMET,10X20X10

92071-0759

$1.93

92075

DAMPER

92075-1634

$4.69

92075A

DAMPER,10X24X12

92075-1690

$5.00

92143

COLLAR

92143-1962

$6.22

92152

COLLAR,6.5X24X15.3

92152-2106

$3.74

92152A

COLLAR,6.8X10X11.1

92152-2251

$5.88

92153

BOLT,6X18

92153-0816

$2.15

92154

BOLT,SOCKET,6X22

92154-0787

$2.67

92154A

BOLT,SOCKET,8X14

92154-1032

$3.72

92154B

BOLT,SOCKET,5X16

92154-1470

$1.48

92154C

BOLT,SOCKET,5X12

92154-1471

$1.48

92154D

BOLT,SOCKET,6X14

92154-1512

$1.83

92154E

BOLT,SOCKET,6X25

92154-1532

$2.34

92154F

BOLT,SOCKET,5X10

92154-1547

$1.48

92154G

BOLT-SOCKET,6X12

92154-2688

$2.49

92160

DAMPER

92160-1613

$3.74

130

BOLT-FLANGED,6X12

130BB0612

$2.34

132

BOLT-FLANGED-SMALL,5X12

132BB0512

$3.67

92161

DAMPER,12X23

92161-1367

$1.19

92161A

DAMPER,60X140X1

92161-1868

$14.37

92172

SCREW,5X12

92172-0821

$0.85

92200

WASHER,5.3X11X1

92200-0973

$0.95

92200A

WASHER,6.5X14X1

92200-1388

$2.46

92210

NUT,CAP,6MM

92210-0322

$1.34

92210A

NUT,PLATE,5MM

92210-0935

$1.97

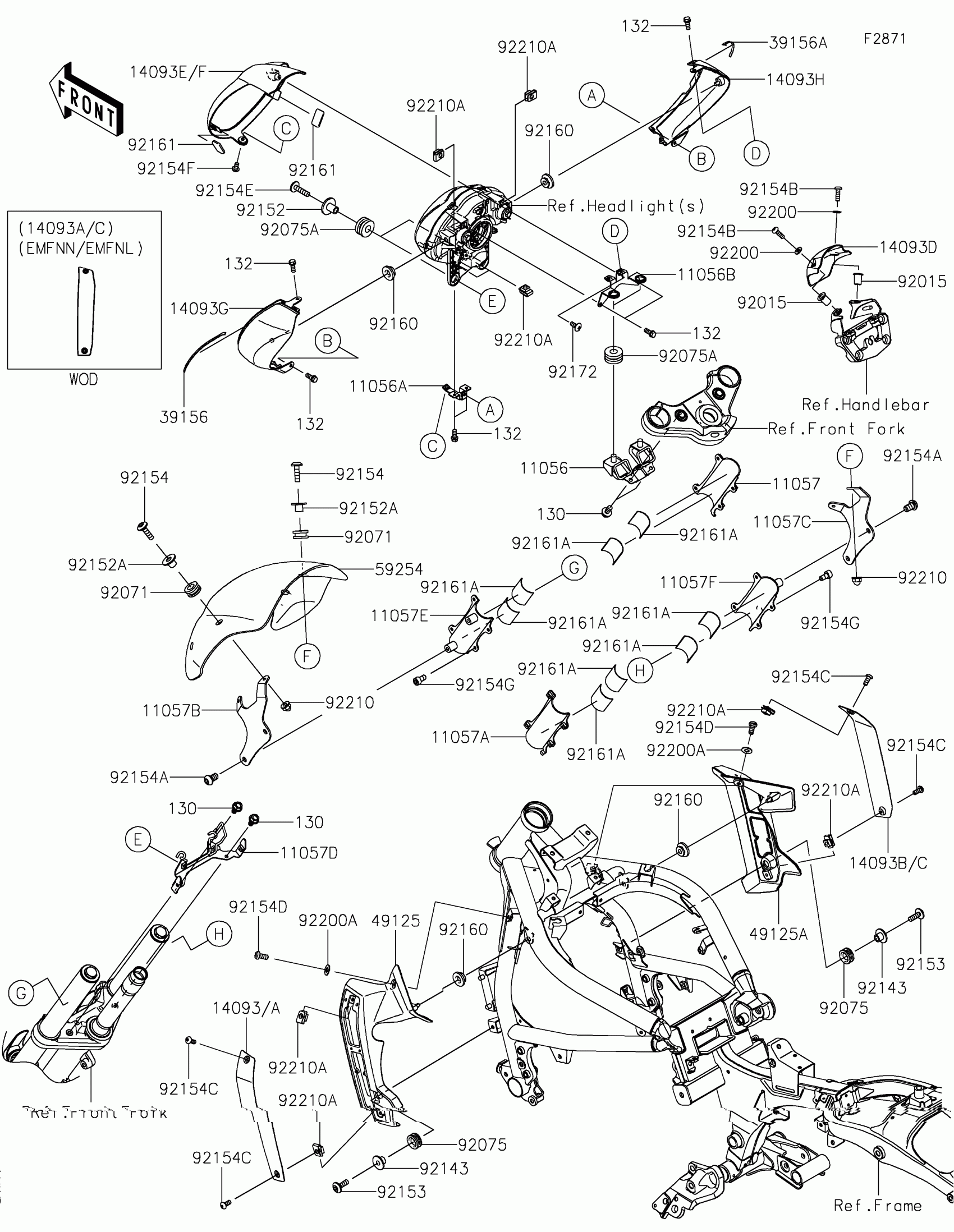

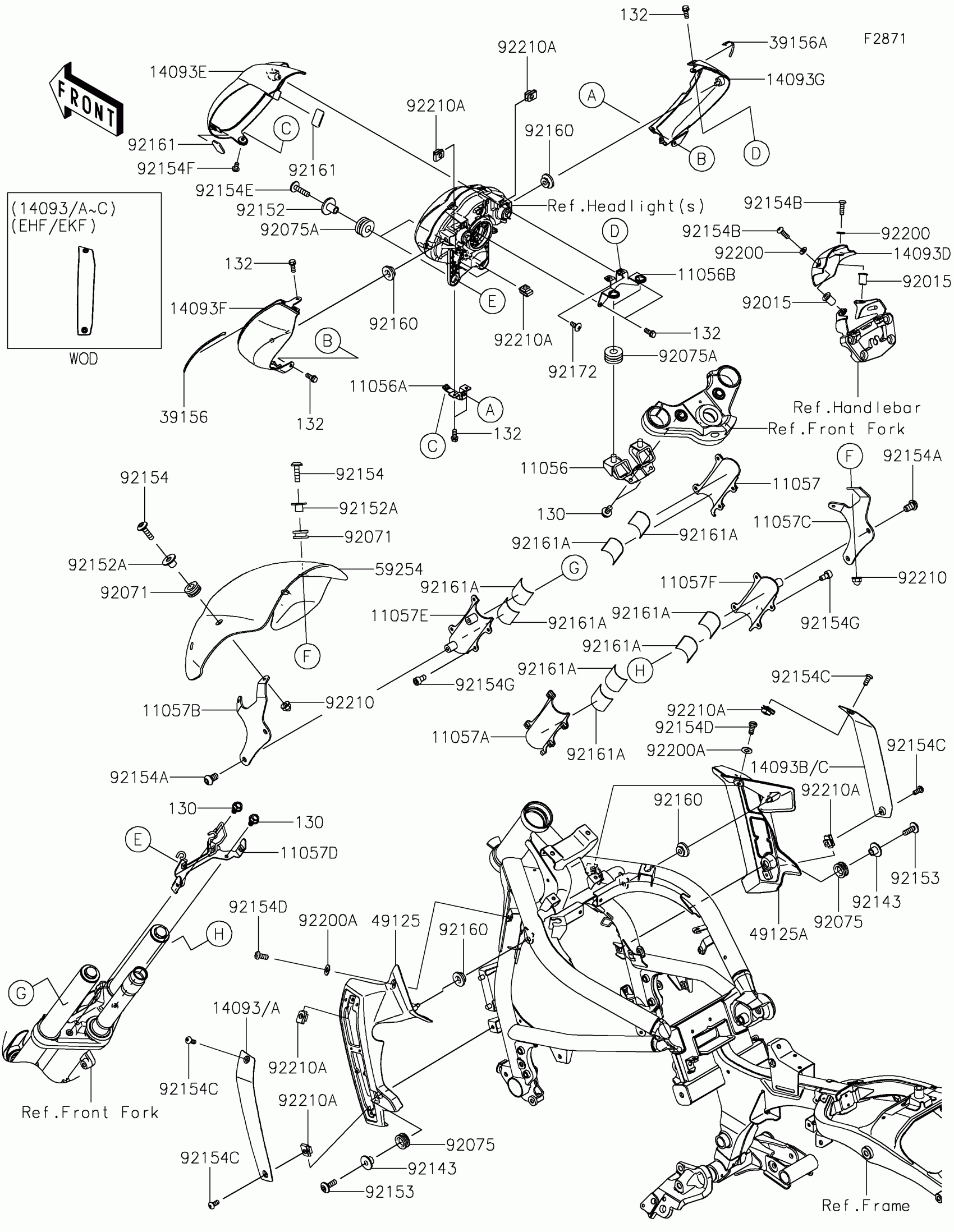

Kawasaki VULCAN® S ABS CAFE Cowling Diagram

BRACKET,HEAD LAMP,UPP

BRACKET,HEAD LAMP COVER,LWR

BRACKET,HEAD LAMP COVER,UPP

BRACKET,LH,INNER

BRACKET,RH,INNER

BRACKET,LH

BRACKET,RH

BRACKET,HEAD LAMP,LWR

BRACKET,LH,OUTER

BRACKET,RH,OUTER

COVER,SHROUD,LH,EBONY

COVER,SHROUD,RH,EBONY

COVER,METER

COVER,HEAD LAMP,EBONY

COVER,HEAD LAMP,LH,F.EBONY

COVER,HEAD LAMP,RH,F.EBONY

PAD,HEAD LAMP COVER,LH

PAD,HEAD LAMP COVER,RH

SHROUD,LH

SHROUD,RH

DEFLECTOR

NUT,WELL,5MM

GROMMET,10X20X10

DAMPER

DAMPER,10X24X12

COLLAR

COLLAR,6.5X24X15.3

COLLAR,6.8X10X11.1

BOLT,6X18

BOLT,SOCKET,6X22

BOLT,SOCKET,8X14

BOLT,SOCKET,5X16

BOLT,SOCKET,5X12

BOLT,SOCKET,6X14

BOLT,SOCKET,6X25

BOLT,SOCKET,5X10

BOLT-SOCKET,6X12

DAMPER

BOLT-FLANGED,6X12

BOLT-FLANGED-SMALL,5X12

DAMPER,12X23

DAMPER,60X140X1

SCREW,5X12

WASHER,5.3X11X1

WASHER,6.5X14X1

NUT,CAP,6MM

NUT,PLATE,5MM
