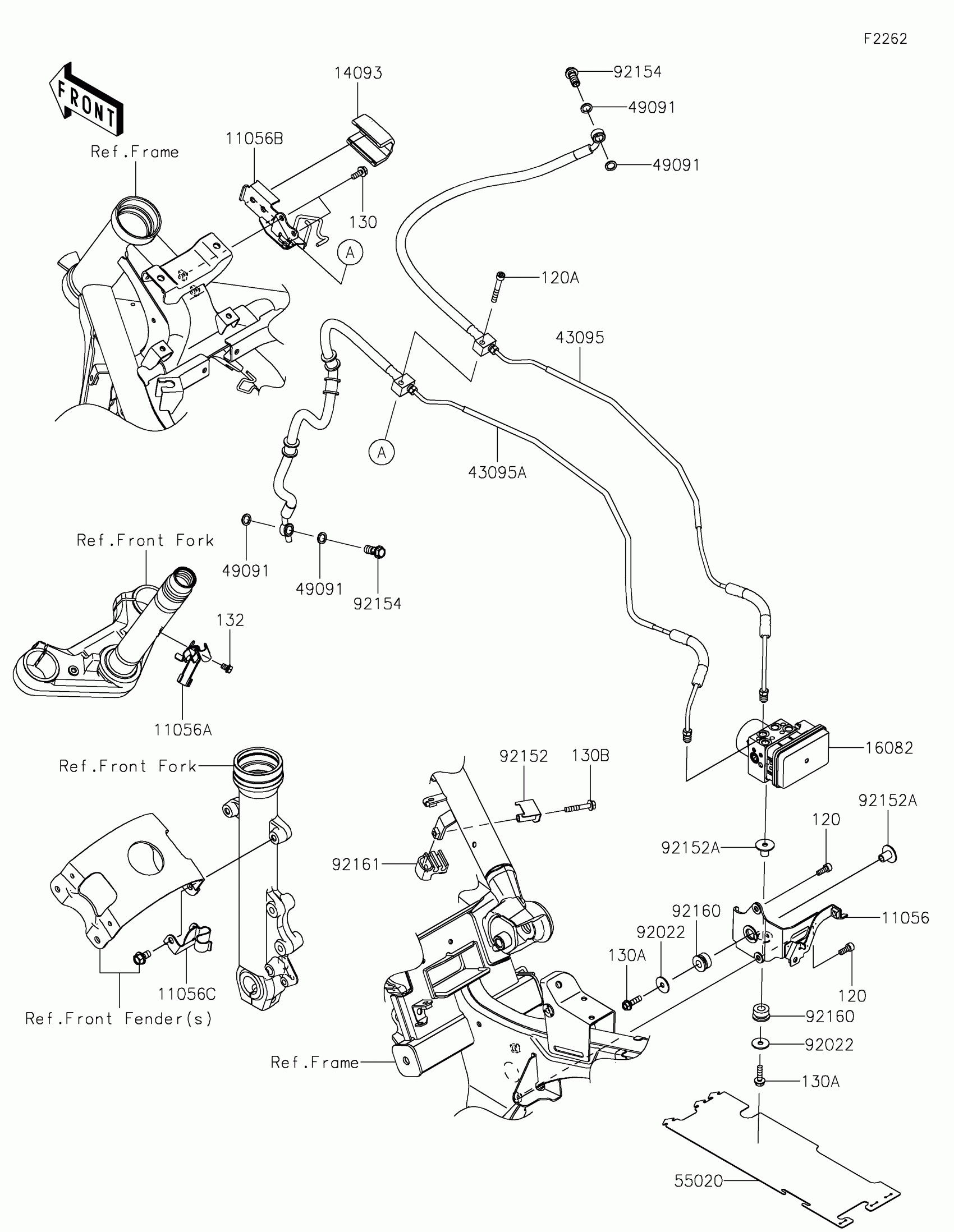

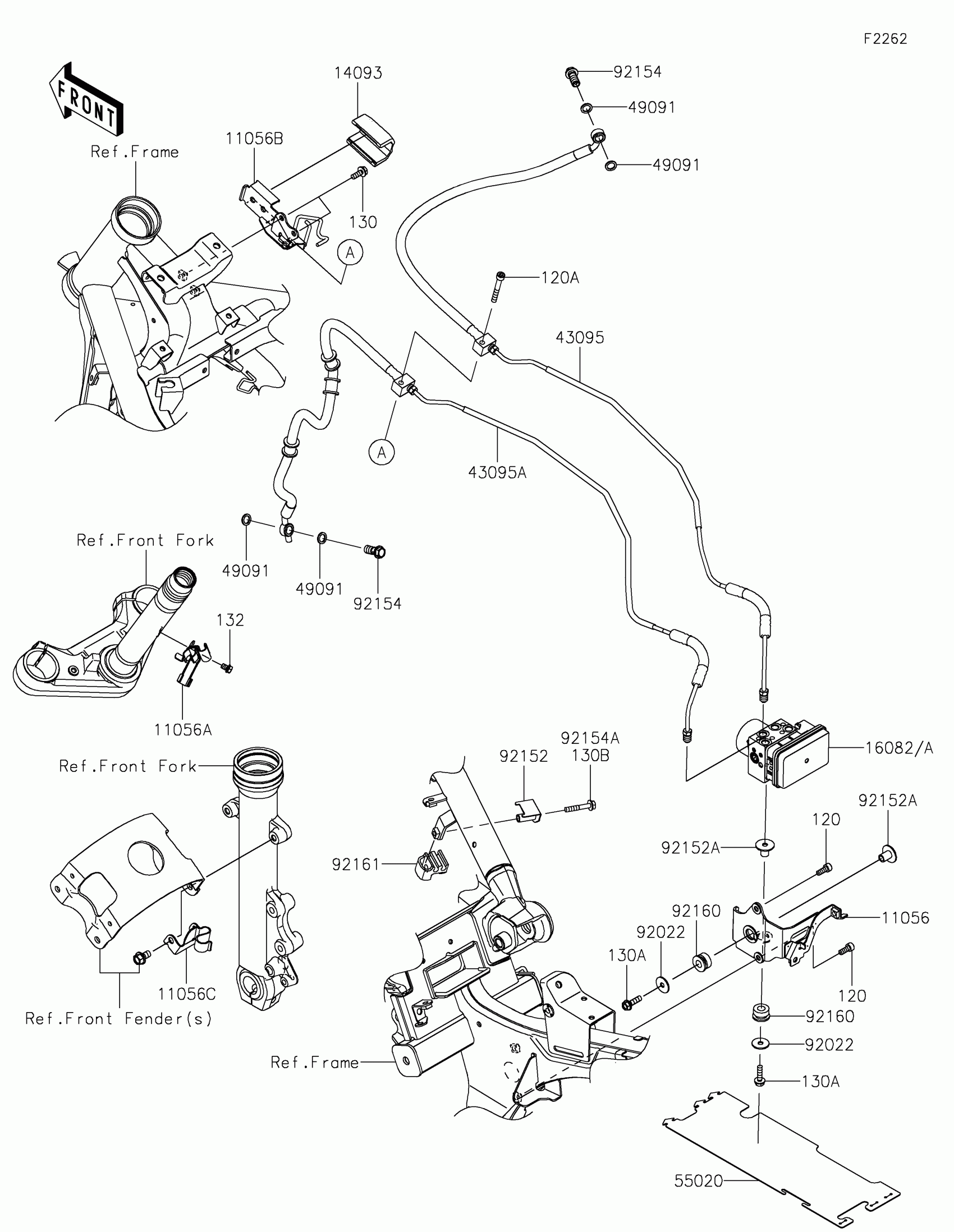

Find the part on the Brake Piping diagram for your 2020 Kawasaki Vulcan® S ABS Cafe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Vulcan® S ABS Cafe Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,ABS UNIT

11056-4167

1

$31.20

In stock

11056A

1

$15.36

In stock

11056B

BRACKET,BRAKE HOSE

11056-4376

1

$14.58

In stock

11056C

BRACKET,FR FENDER

11056-7694

1

$5.66

In stock

120

BOLT-SOCKET,6X16

120CA0616

1

$2.05

In stock

120A

BOLT-SOCKET,6X45

120CA0645

1

$1.73

In stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

130A

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

130B

BOLT-FLANGED,6X35

130BB0635

1

$4.90

In stock

132

1

$3.24

In stock

14093

1

$4.75

In stock

16082

1

$1,617.10

In stock

43095

1

$223.73

In stock

43095A

1

$262.90

In stock

49091

1

$1.81

In stock

55020

GUARD,ABS UNIT

55020-1885

1

$21.81

In stock

92022

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92152

COLLAR

92152-0996

1

$3.76

In stock

92152A

COLLAR,6.5X10X15.6

92152-2105

1
Out of stock

92154

BOLT,FLANGED,10X23

92154-0732

1

$4.01

In stock

92160

DAMPER

92160-1141

1

$3.38

In stock

92161

DAMPER,BRAKE PIPE

92161-0347

1

$4.75

In stock
