Description

Price

11056

BRACKET,SENSOR

11056-4199

$11.27

11056A

BRACKET,SWINGARM,LWR

11056-4200

$7.47

120

BOLT-SOCKET,8X25

120CB0825

$3.72

130

BOLT-FLANGED,5X10

130BA0510

$1.47

130A

BOLT-FLANGED,6X12

130BA0612

$1.46

21176

SENSOR,RR WHEEL SPEED

21176-0781

$149.48

41080

DISC,RR,W/R,BLACK

41080-0628-11H

$358.18

42036

SLEEVE

42036-0050

$7.61

43034

HOLDER-BRAKE,RR

43034-0137

$141.48

43044

HOLDER-COMP-CALIPER

43044-0080

$155.66

43048

PISTON-CALIPER

43048-0008

$31.05

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$3.89

43058

RING,STOPPER

43058-1100

$11.22

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0156-DJ

$318.75

43082

PAD-ASSY-BRAKE

43082-0155

$62.63

49006

BOOT

49006-0058

$12.83

49006A

BOOT,CALIPER

49006-1242

$4.34

92043

PIN

92043-0137

$10.77

92043A

PIN,HANGER

92043-0820

$7.24

92049

SEAL-OIL

92049-1449

$3.97

92049A

SEAL-OIL

92049-1450

$3.85

92145

SPRING,PAD

92145-0493

$6.12

92153

BOLT,SOCKET,8X16

92153-0327

$4.97

92153A

BOLT,FLANGED

92153-1826

$8.17

92154

BOLT,SOCKET,8X30

92154-0844

$3.26

92173

CLAMP,CABLE CLIP

92173-1022

$1.44

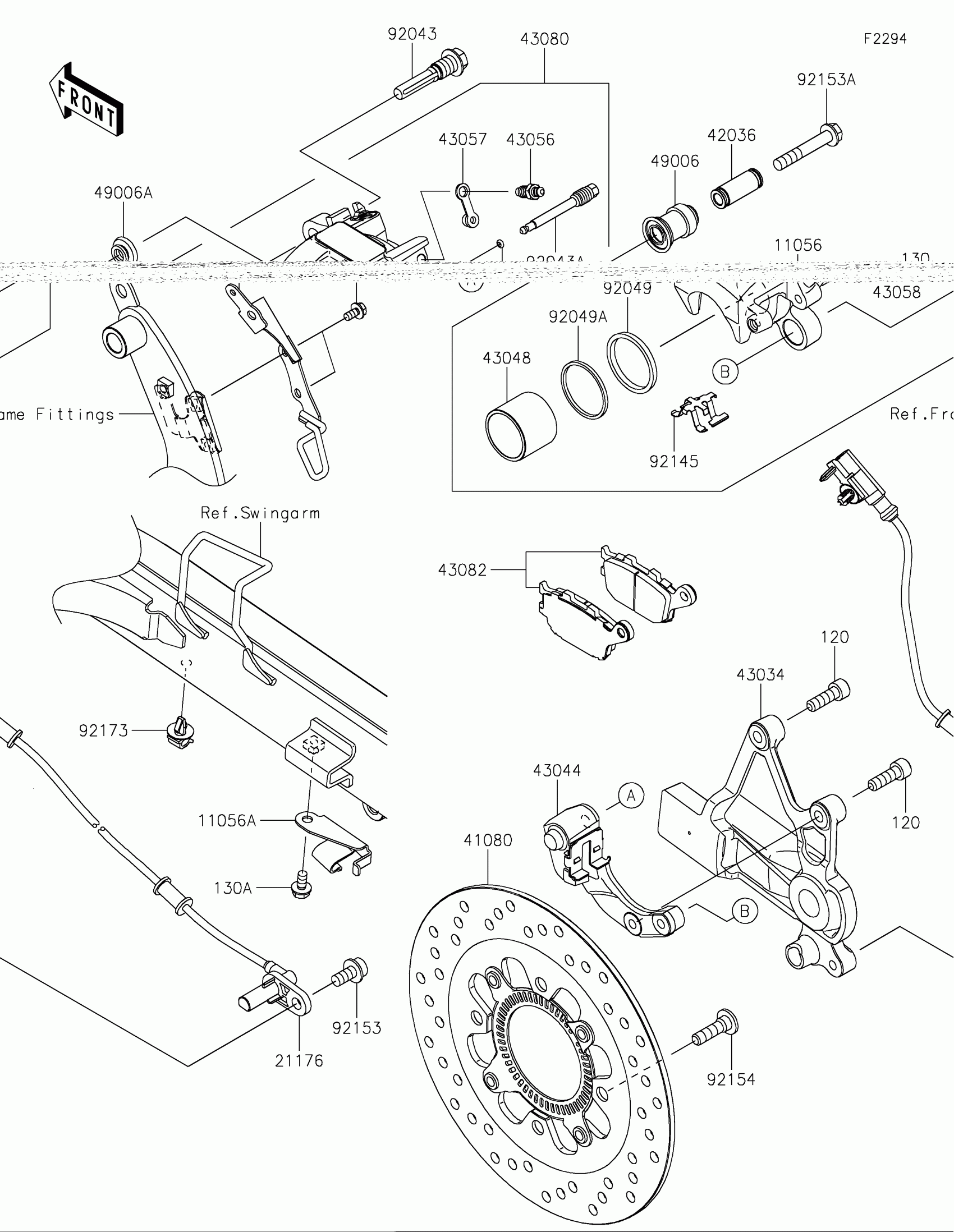

Kawasaki VULCAN® S ABS CAFE Rear Brake Diagram
