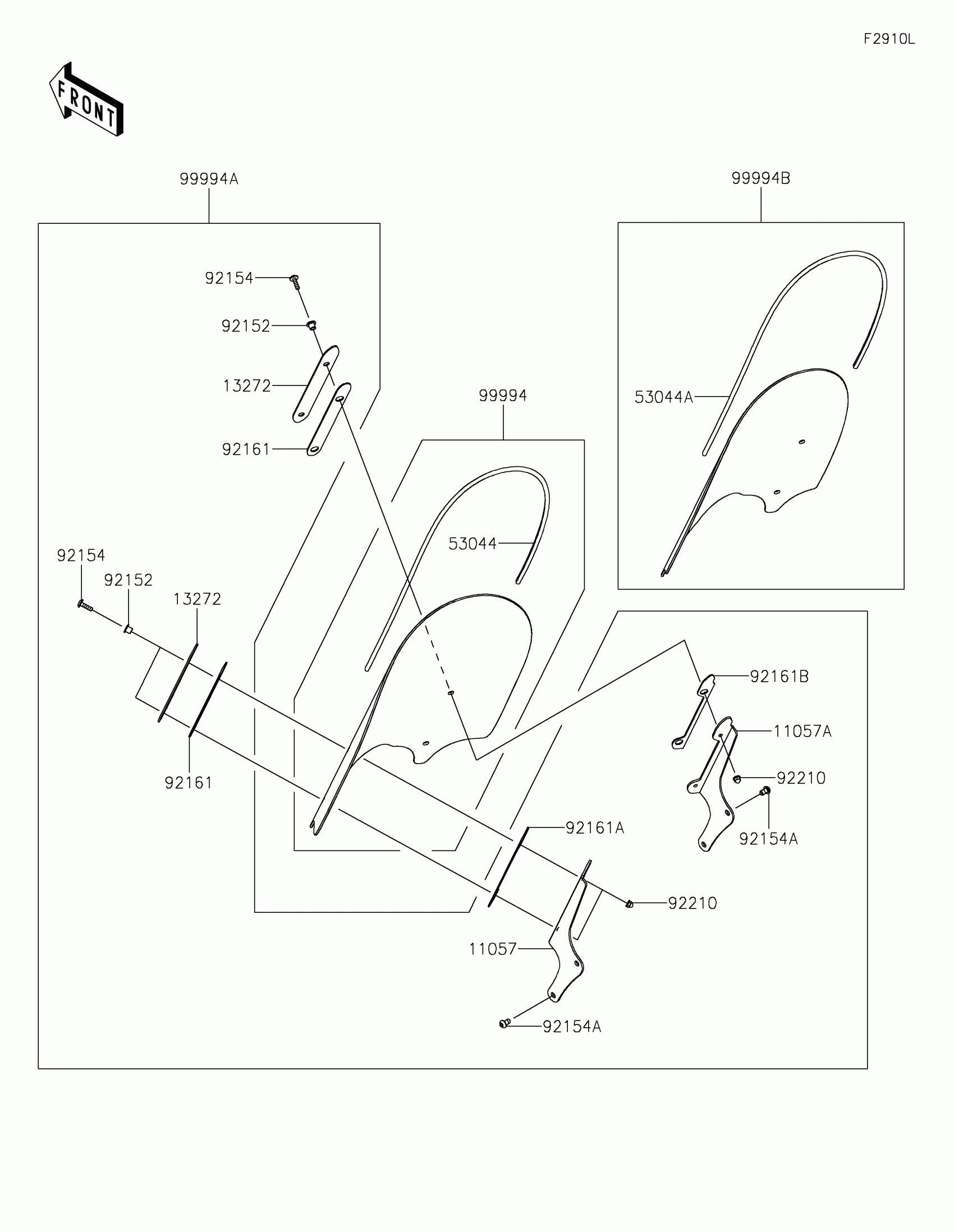

Kawasaki Vulcan® S ABS CAFE Accessory(Windshield) Diagram

Description

Price

11057

BRACKET,LH

11057-0212

$127.10

11057A

BRACKET,RH

11057-0213

$127.10

13272

PLATE

13272-2181

$53.55

53044

TRIM

53044-0606

$28.89

53044A

TRIM,WINDSHIELD,SHORT TYPE

53044-1272

$29.80

92152

COLLAR,6.8X10X10.9

92152-2261

$4.60

92154

BOLT,SOCKET,6X22

92154-0787

$2.67

92154A

BOLT,SOCKET,8X14

92154-1032

$3.72

92161

DAMPER

92161-1862

$12.58

92161A

DAMPER

92161-1863

$12.58

92161B

DAMPER

92161-1864

$12.58

92210

NUT,CAP,6MM

92210-0322

$1.34

99994

KIT,WINDSHIELD LARGE W/O KQR

99994-0823

$436.18

99994A

KIT-ACCESSORY,WSHLD-BKT

99994-0825

$218.72

99994B

KIT,WINDSHIELD MEDIUM W/O KQR

99994-0828

$238.55
