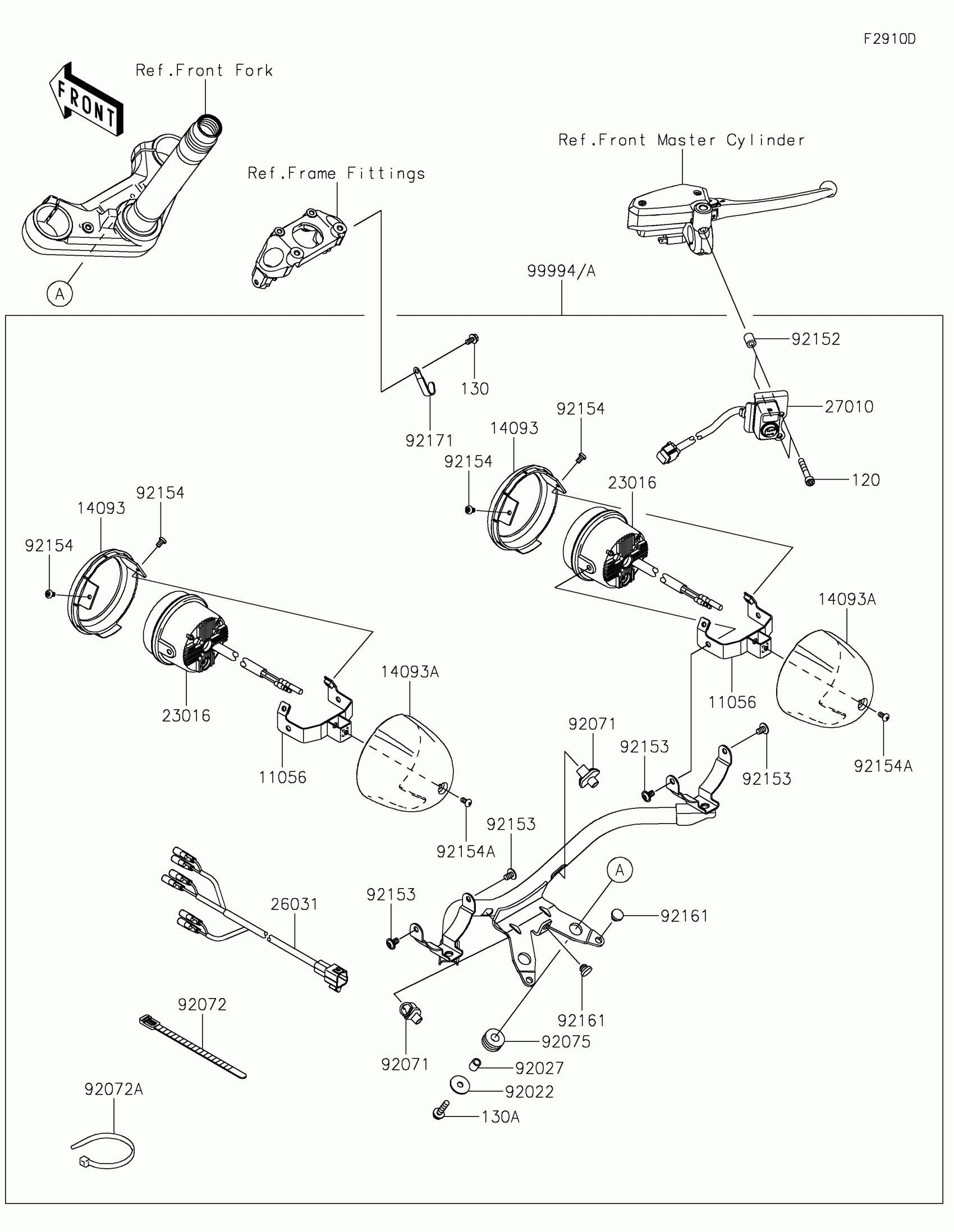

Kawasaki VULCAN® S ABS Accessory(Sub Lamp) Diagram

Description

Price

11056

BRACKET,LAMP COVER

11056-4446

$26.66

120

BOLT-SOCKET,6X40

120CB0640

$1.52

130

BOLT-FLANGED,5X10

130AA0510

$1.07

130A

BOLT-FLANGED,6X25

130BB0625

$2.80

14093

COVER,RIM

14093-0162

$32.05

14093A

COVER,BODY

14093-0163

$50.95

23016

LAMP-ASSY,PIAA,LP-530

23016-0576

$393.88

26031

HARNESS

26031-1823

$47.38

27010

SWITCH,SUB LAMP

27010-0761

$76.43

92022

WASHER,7X24X1.6

92022-1160

$3.92

92027

COLLAR,6.8X10X12

92027-162

$6.57

92071

GROMMET,SIGNAL LAMP

92071-0043

$5.48

92072

BAND,L=140

92072-1293

$7.11

92072A

BAND,L=152

92072-3874

$4.18

92075

DAMPER,10X24X12

92075-1690

$5.00

92152

COLLAR,6.3X11X14

92152-1965

$5.79

92153

BOLT,SOCKET,6X10

92153-1527

$1.78

92154

BOLT

92154-0314

$1.19

92154A

BOLT,SOCKET,5X10

92154-1292

$1.48

92161

DAMPER

92161-1084

$2.67

92171

CLAMP

92171-1539

$2.80

99994

KIT-ACCESSORY,SUB-LAMP,BLK

99994-0511

$480.56

99994A

KIT-ACCESSORY,SUB-LAMP,PLT

99994-0555

$905.90
