2007 Kawasaki Vulcan 900 Custom Fuel Tank Diagram

← All diagrams

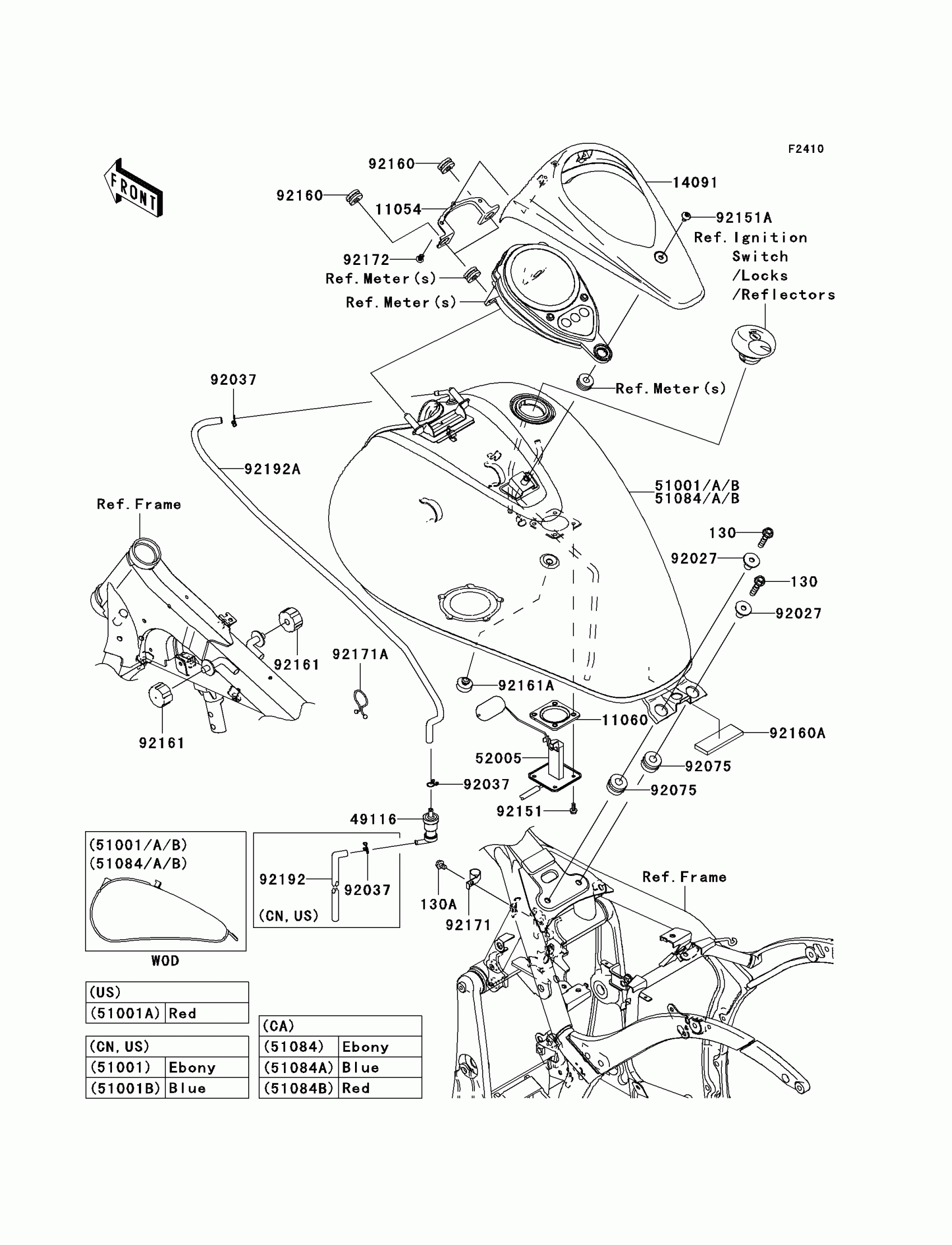

Find the part on the Fuel Tank diagram for your 2007 Kawasaki Vulcan 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Vulcan 900 Custom Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET,METER,FR

11054-0034

1
Out of stock

11060

GASKET,FUEL GAUGE

11060-1952

1
Out of stock

14091

COVER,METER

14091-0516

1
Out of stock

49116

VALVE-ASSY,CHECK

49116-0014

1
Out of stock

52005

GAUGE,FUEL

52005-0020

1
Out of stock

130

BOLT-FLANGED,8X30

130BA0830

1
Out of stock

130A

BOLT-FLANGED,6X10

130BB0610

1
Out of stock

92027

COLLAR,L=19.3

92027-1780

1
Out of stock

92075

DAMPER

92075-1736

1
Out of stock

92151

BOLT,5X12

92151-1599

1
Out of stock

92151A

BOLT,SOCKET,6X12

92151-1940

1
Out of stock

92160

DAMPER

92160-1162

1
Out of stock

92160A

DAMPER

92160-1323

1
Out of stock

92161

DAMPER,FUEL TANK

92161-0293

1
Out of stock

92161A

DAMPER

92161-1065

1
Out of stock

92171

CLAMP

92171-0595

1
Out of stock

92171A

CLAMP

92171-1185

1
Out of stock

92172

SCREW,TAPPING,5X14

92172-0006

1
Out of stock

92192A

TUBE,FUEL TANK-VALVE

92192-0303

1
Out of stock

51001

TANK-COMP-FUEL,EBONY

51001-0146-H8

1
Out of stock

51001A

TANK-COMP-FUEL,C.F.RED

51001-0146-816

1
Out of stock

51001B

TANK-COMP-FUEL,C.P.BLUE

51001-0179-723

1
Out of stock

51084

TANK-COMP-FUEL,EBONY

51084-5406-H8

1
Out of stock

51084A

TANK-COMP-FUEL,C.P.BLUE

51084-5406-723

1
Out of stock

51084B

TANK-COMP-FUEL,C.F.RED

51084-5406-816

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92192

TUBE,TANK-SEPARATOR,BLUE

92192-0215

1
Out of stock
