2009 Kawasaki Vulcan® 900 Custom Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2009 Kawasaki Vulcan® 900 Custom, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

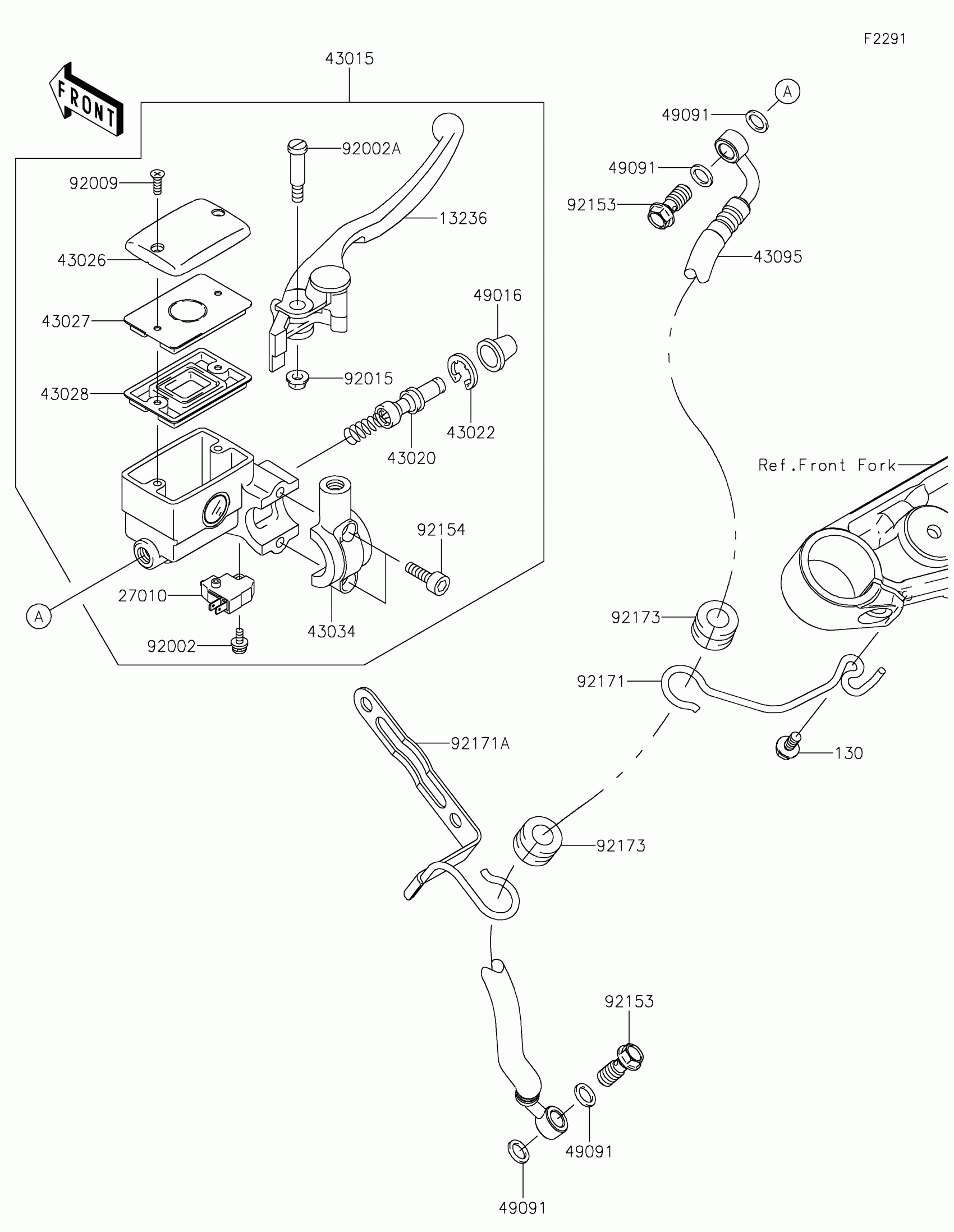

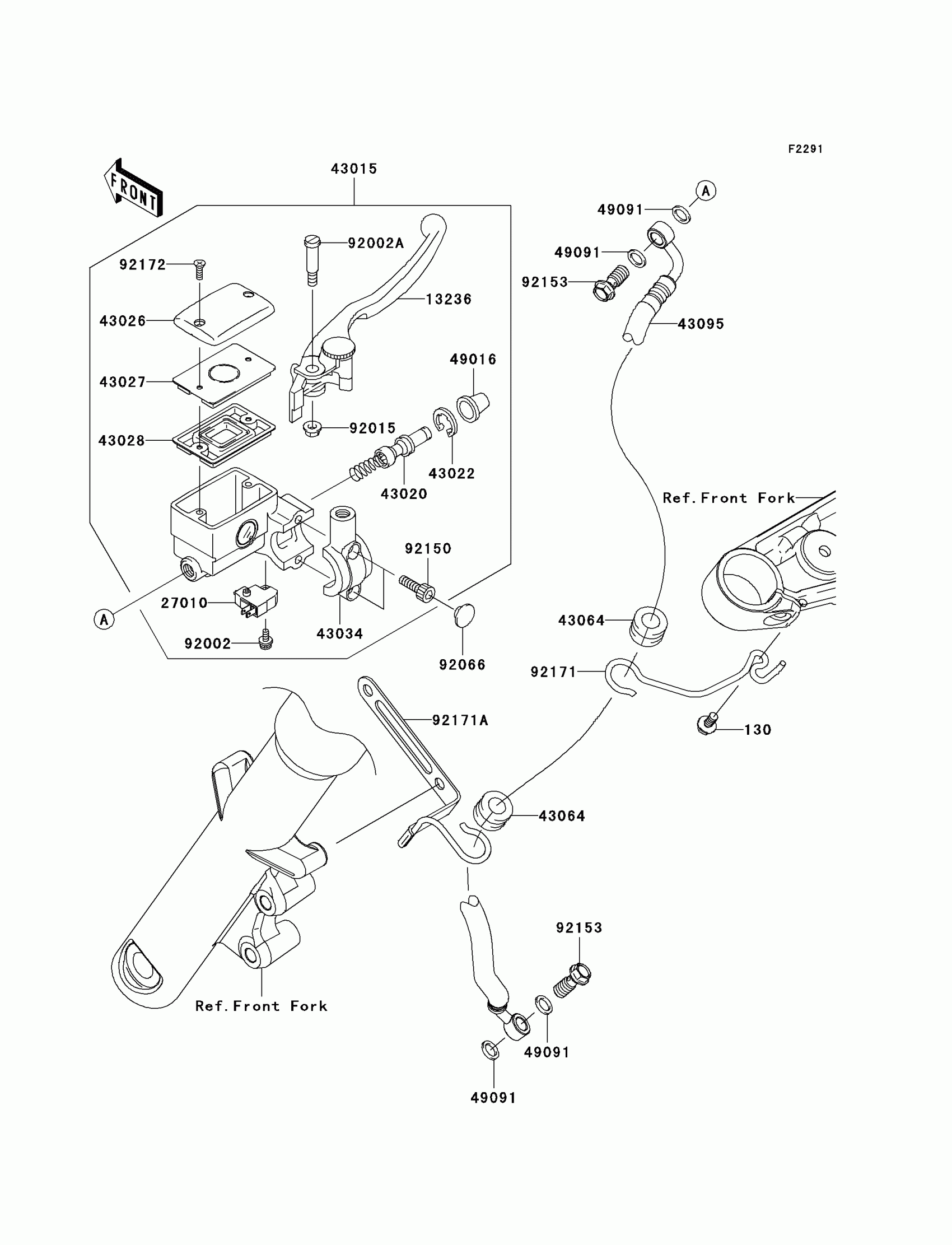

2009 Kawasaki Vulcan® 900 Custom Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130BB0612

1
Out of stock

13236

LEVER-COMP,FRONT BRAKE

13236-1315

1
Out of stock

27010

SWITCH,BRAKE

27010-0025

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0065

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1098

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-0003

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1059

1
Out of stock

43028

DIAPHRAGM,MASTER CYLINDER

43028-1058

1
Out of stock

43034

HOLDER-BRAKE

43034-1172

1
Out of stock

43064

GROMMET,HOSE CLAMP

43064-006

1
Out of stock

43095

HOSE-BRAKE,FR

43095-0250

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92002

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92002A

BOLT,LEVER SET

92002-1561

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1
Out of stock

92066

PLUG

92066-1301

1
Out of stock

92150

BOLT,SOCKET,6MM

92150-1025

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92171

CLAMP,BRAKE HOSE

92171-0629

1
Out of stock

92171A

CLAMP,BRAKE HOSE

92171-0770

1
Out of stock

92172

SCREW

92172-0083

1
Out of stock
