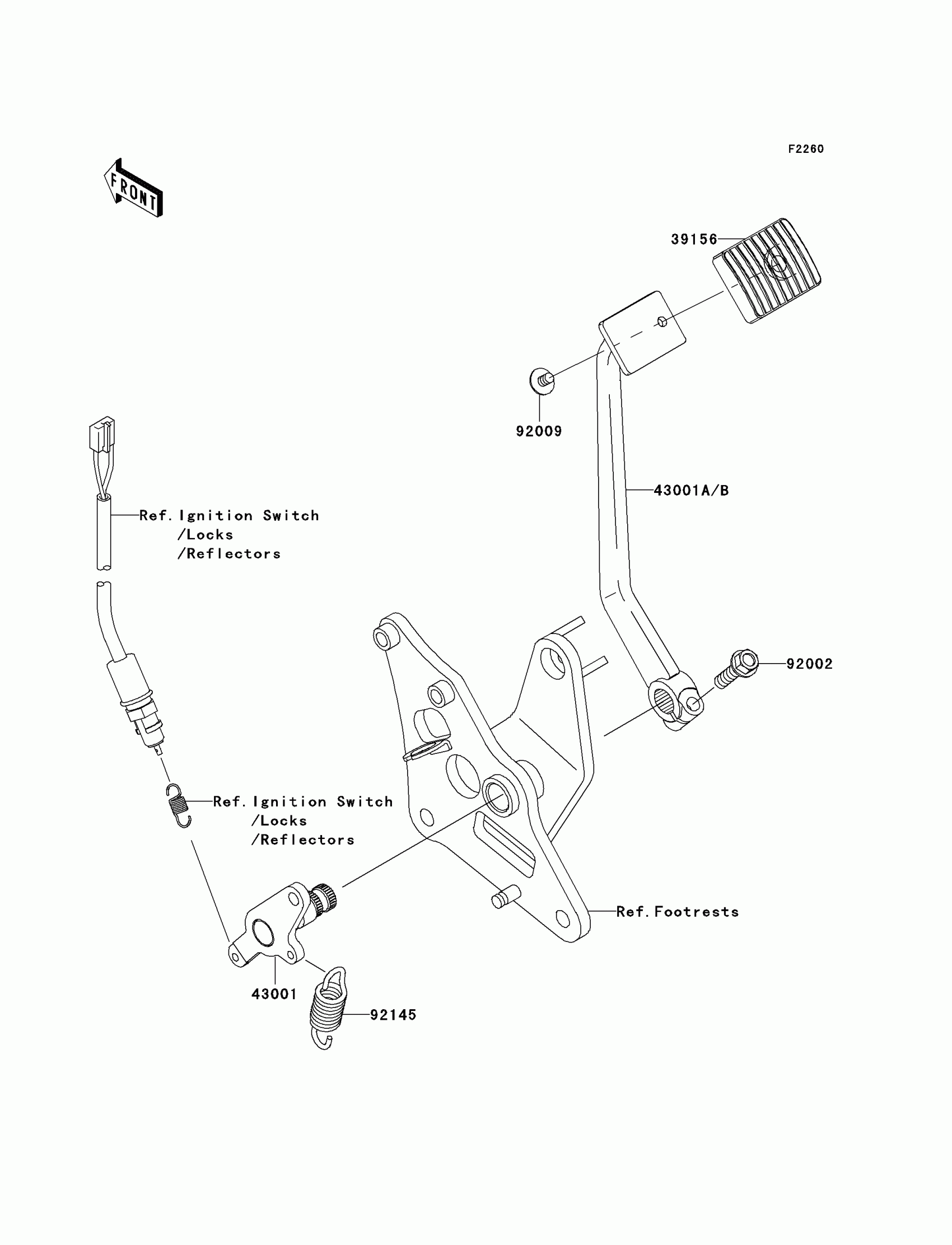

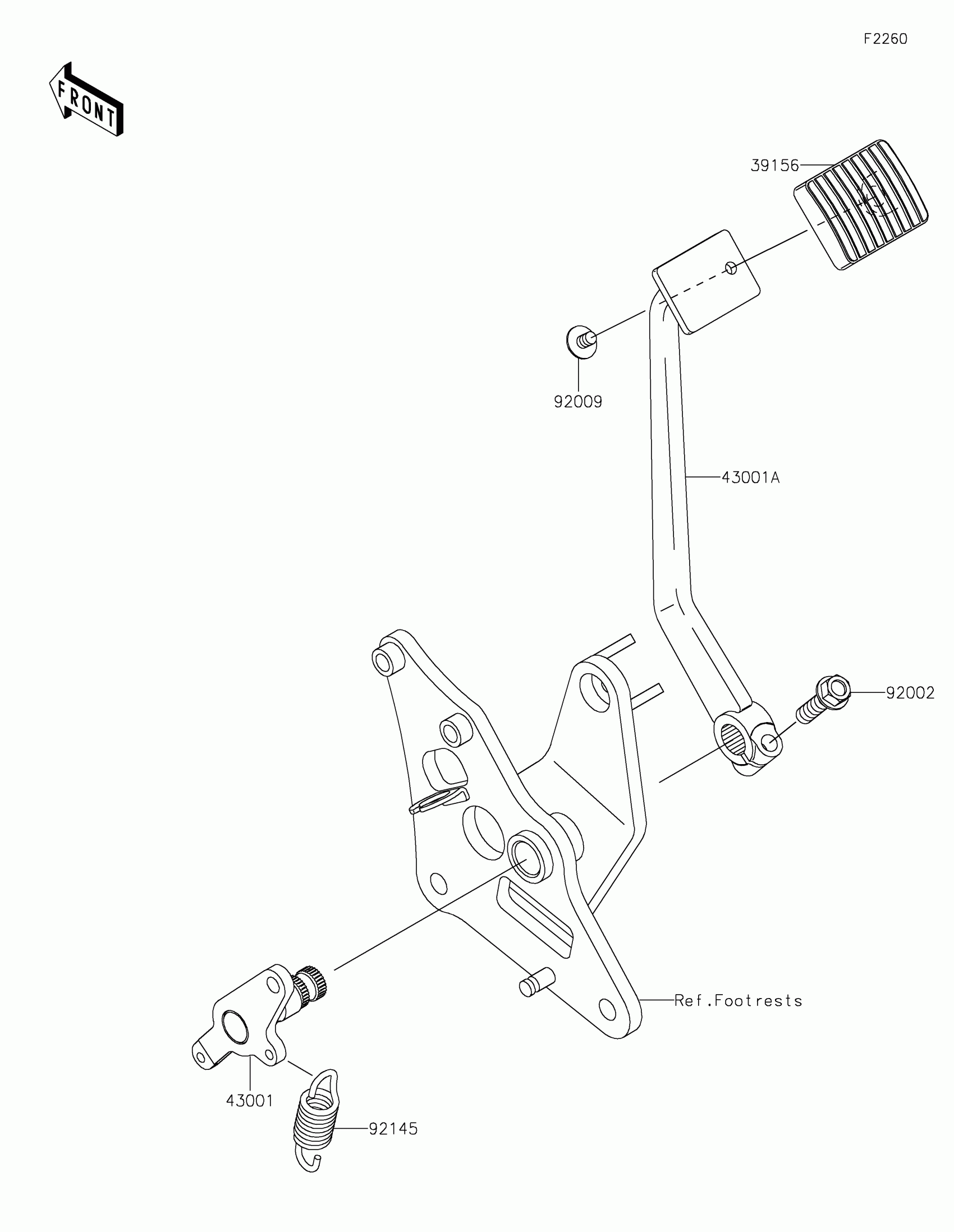

Kawasaki Vulcan® 900 Custom Brake Pedal/Torque Link Diagram

#

Description

Price

39156

PAD

39156-1641

$8.88

43001

LEVER-BRAKE

43001-0057

$40.29

43001A

LEVER-BRAKE,PEDAL

43001-0079

$113.06

92002

BOLT,FLANGED,8X25

92002-1201

$4.17

92009

SCREW,6X8

92009-1677

$3.29

92145

SPRING,BRAKE PEDAL RETURN

92145-0191

$9.69
