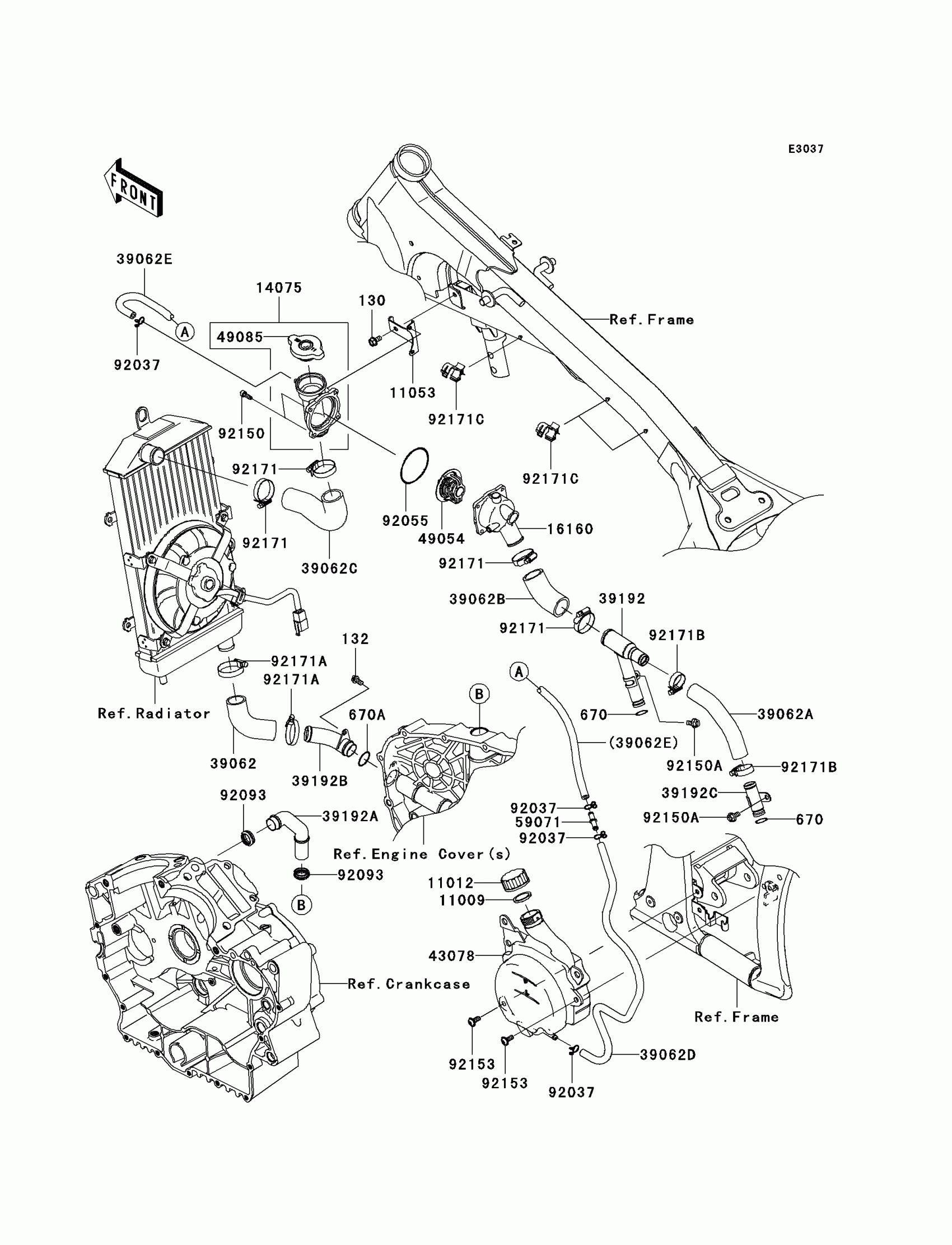

Kawasaki Vulcan 900 Custom (European) Water Pipe Diagram

#

Description
Price

130

BOLT-FLANGED,6X14

130BA0614

$1.20

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

670

O RING,14MM

670B2014

$1.19

670A

O RING,21MM

670B2021

$4.69

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

11053

BRACKET,THERMO CASE

11053-1989

$5.25

14075

CAP-ASSY

14075-0001

$142.53

16160

BODY,THERMOSTAT

16160-0095

$65.53

39062

HOSE-COOLING,PIPE-WATER PUMP

39062-0009

$10.97

39062A

HOSE-COOLING,RR HEAD-PIPE

39062-0118

$11.19

39062B

HOSE-COOLING,PIPE-THERMO

39062-0120

$8.92

39062C

HOSE-COOLING,THERMO-RAD

39062-0121

$18.77

39062D

HOSE-COOLING,RESERVOIR-JOINT

39062-0124

$11.19

39062E

HOSE-COOLING,JOINT-THERMO

39062-0132

$15.06

39192

PIPE-WATER,FR HEAD

39192-0042

$53.44

39192A

PIPE-WATER

39192-0043

$30.76

39192B

PIPE-WATER

39192-0044

$30.76

39192C

PIPE-WATER,RR HEAD

39192-0048

$17.48

43078

RESERVOIR

43078-0029

Unavailable

49054

THERMOSTAT

49054-1067

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1066

$37.42

59071

JOINT

59071-3717

$3.55

92037

CLAMP,TUBE

92037-147

$7.34

92055

RING-O,53.5X2.6

92055-112

$6.63

92093

SEAL

92093-1427

$4.65

92150

BOLT,SOCKET,5X14

92150-1180

$3.92

92150A

BOLT,FLANGED,6X12

92150-1826

$3.65

92153

BOLT,SOCKET,6X15

92153-1451

$1.78

92171

CLAMP

92171-0179

$8.20

92171A

CLAMP

92171-0261

$16.83

92171B

CLAMP

92171-0338

$8.36

92171C

CLAMP,DIA=15

92171-1424

$4.18
