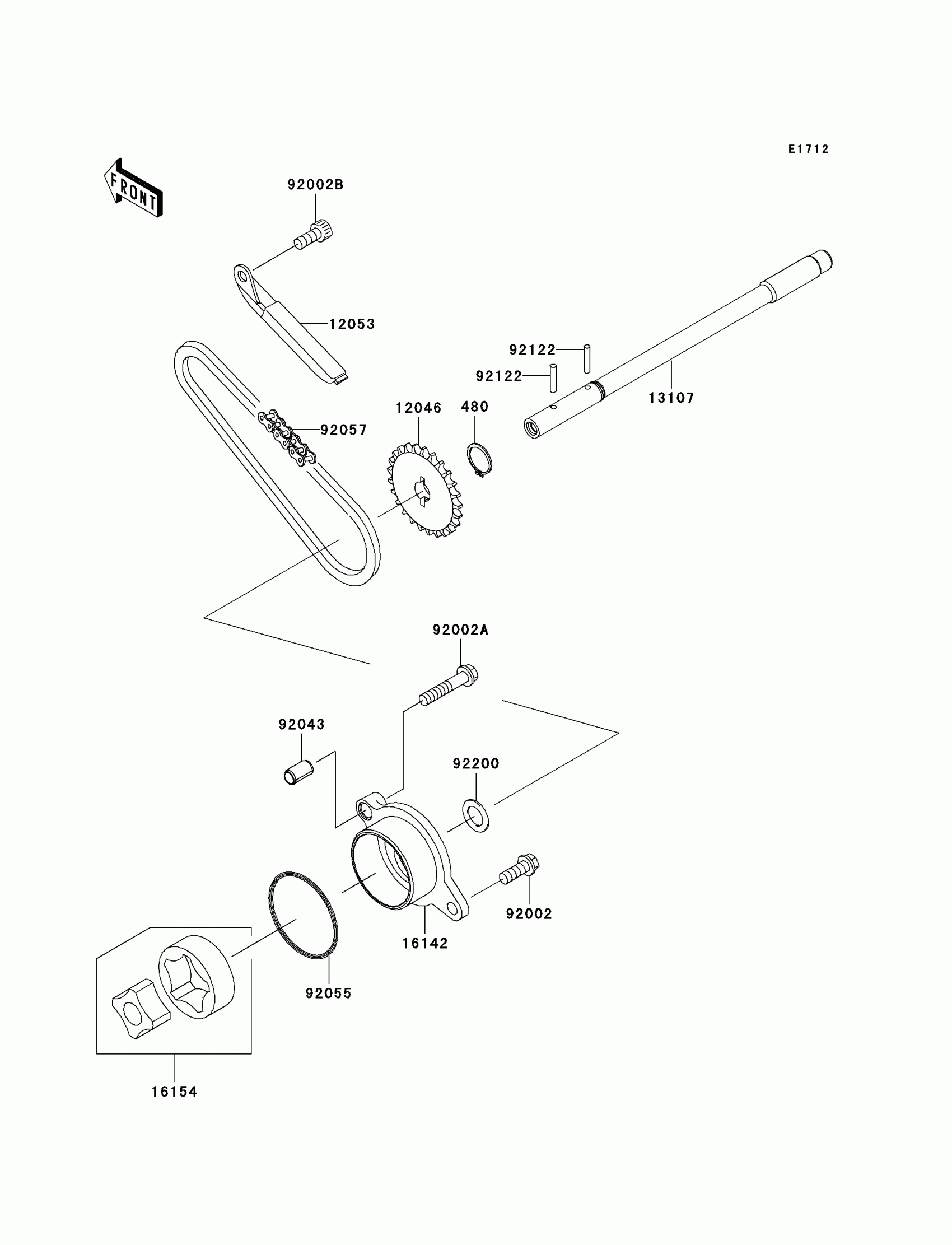

Kawasaki Vulcan 900 Custom (European) Oil Pump Diagram

Description

Price

480

CIRCLIP-TYPE-C,11MM

480J1100

$1.24

12046

SPROCKET,24T

12046-0045

$36.70

12053

GUIDE-CHAIN

12053-0070

$39.85

13107

SHAFT

13107-0116

$46.79

16142

COVER-PUMP,OIL

16142-0028

$48.58

16154

ROTOR-PUMP,40.56X18

16154-1056

$67.73

92002

BOLT,6X16

92002-1439

$4.69

92002A

BOLT,6X30

92002-1534

$6.22

92002B

BOLT,SOCKET,6X14

92002-1592

$4.31

92043

PIN,6.2X8X14

92043-1263

$0.43

92055

RING-O,44.7X2.4

92055-1279

$7.34

92057

CHAIN,DID 25H,54LE

92057-0113

$12.71

92122

ROLLER,3X15.8

92122-1126

$3.92

92200

WASHER

92200-1009

$5.07
