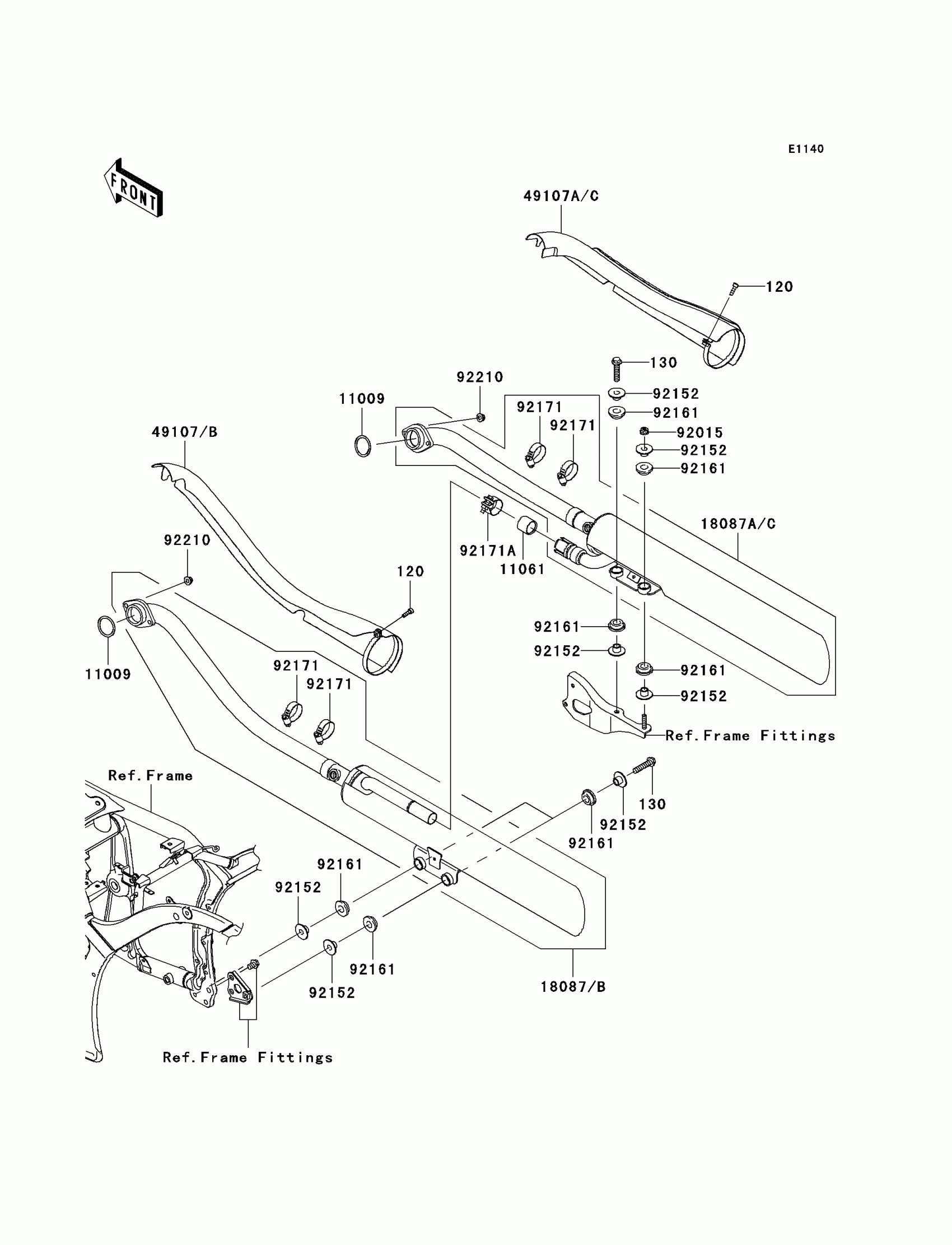

Kawasaki Vulcan 900 Custom (European) Muffler(s) Diagram

Description

Price

120

BOLT-SOCKET,6X20

120CC0620

$1.78

130

BOLT-FLANGED,8X35

130BB0835

$4.45

11009

GASKET,EXHAUST PIPE HOLDER

11009-1856

$5.66

11061

GASKET,MUFFLER JOINT

11061-0207

$27.58

18087B

MUFFLER,FR

18087-0194

Unavailable

18087C

MUFFLER,RR

18087-0195

Unavailable

49107B

COVER-EXHAUST PIPE

49107-0142

$307.95

49107C

COVER-EXHAUST PIPE

49107-0143

$307.95

92015

NUT,8MM

92015-1357

Unavailable

92152

COLLAR,8.8X12X10.6

92152-0082

$11.59

92161

DAMPER

92161-0135

$3.44

92171

CLAMP

92171-0059

$7.98

92171A

CLAMP

92171-0593

$16.97

92210

NUT,CAP,8MM

92210-1132

$4.18
