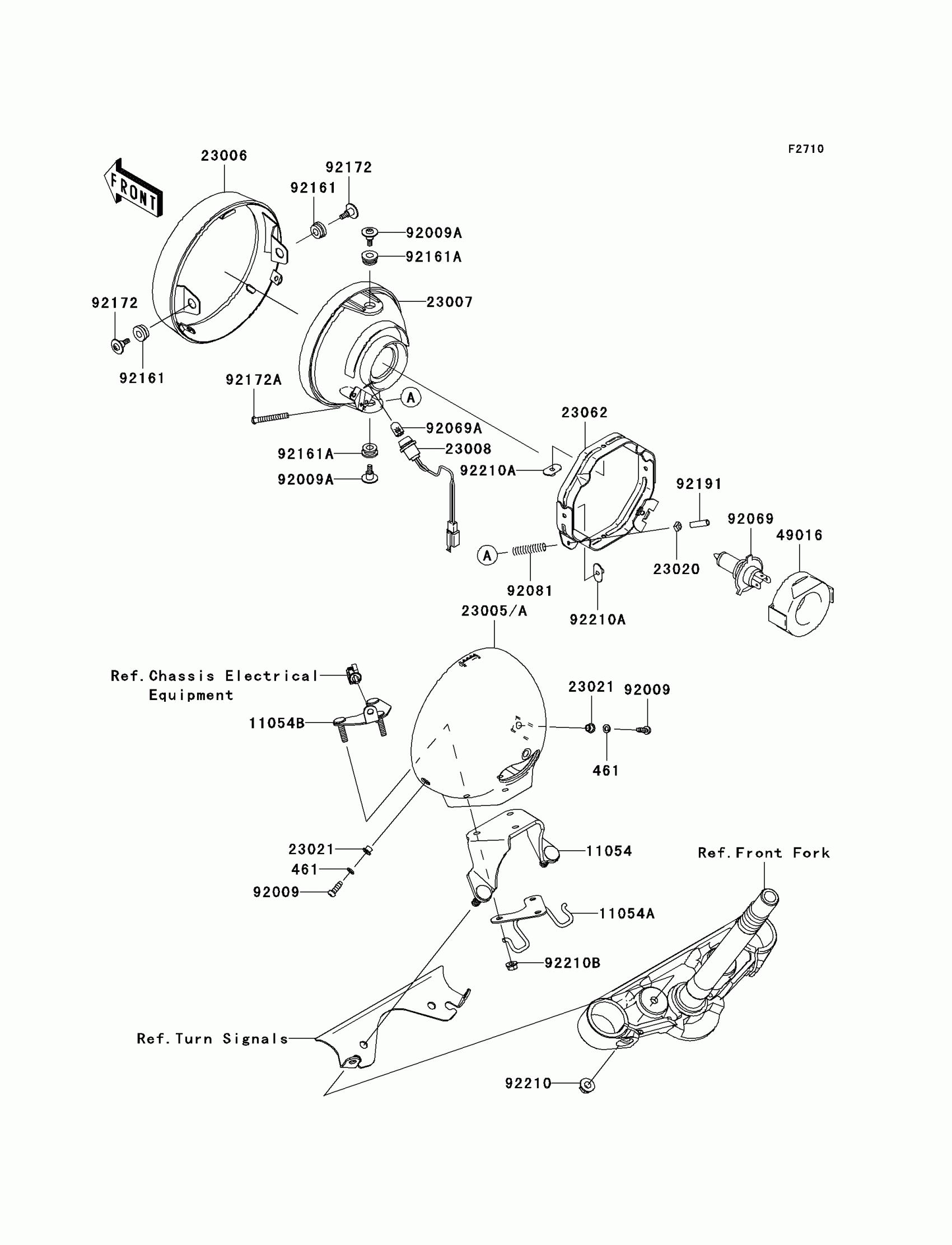

Kawasaki Vulcan 900 Custom (European) Headlight(s)(WV) Diagram

Description

Price

11054

BRACKET,HEAD LAMP

11054-0747

$72.45

11054A

BRACKET,SIGNAL LAMP HARNESS

11054-1173

$14.39

11054B

BRACKET,HEAD LAMP

11054-1391

$14.39

23005A

BODY-COMP-HEAD LAMP

23005-0036

$151.34

23006

RIM-LAMP

23006-0013

$88.95

23007

LENS-COMP,HEAD LAMP

23007-0082

$159.22

23008

SOCKET-ASSY,PARKING LAMP

23008-1609

$18.34

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

23021

WASHER

23021-010

$3.29

23062

BRACKET-COMP,HEAD LAMP

23062-0048

$53.81

49016

COVER-SEAL,HEAD LAMP SOCKET

49016-1210

$11.80

92009

SCREW,5MM

92009-1947

$1.82

92009A

SCREW,5MM

92009-1956

$2.25

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92069A

BULB,12V 5W

92069-1016

$4.88

92081

SPRING,FOCUS ADJUSTING

92081-1701

$4.10

92161

DAMPER

92161-1187

$1.95

92161A

DAMPER

92161-1188

$1.95

92172

SCREW

92172-0293

$2.15

92172A

SCREW,FOCUS ADJUST,4X55

92172-0294

$3.51

92191

TUBE,3.5X5.5X19

92191-1217

$2.02

461

WASHER-SPRING,5MM

461S0500

$0.54

92210

NUT,FLANGED,8MM

92210-0004

$4.07

92210A

NUT,5MM

92210-0364

$2.71

92210B

NUT,FLANGED,6MM

92210-0368

$1.04
