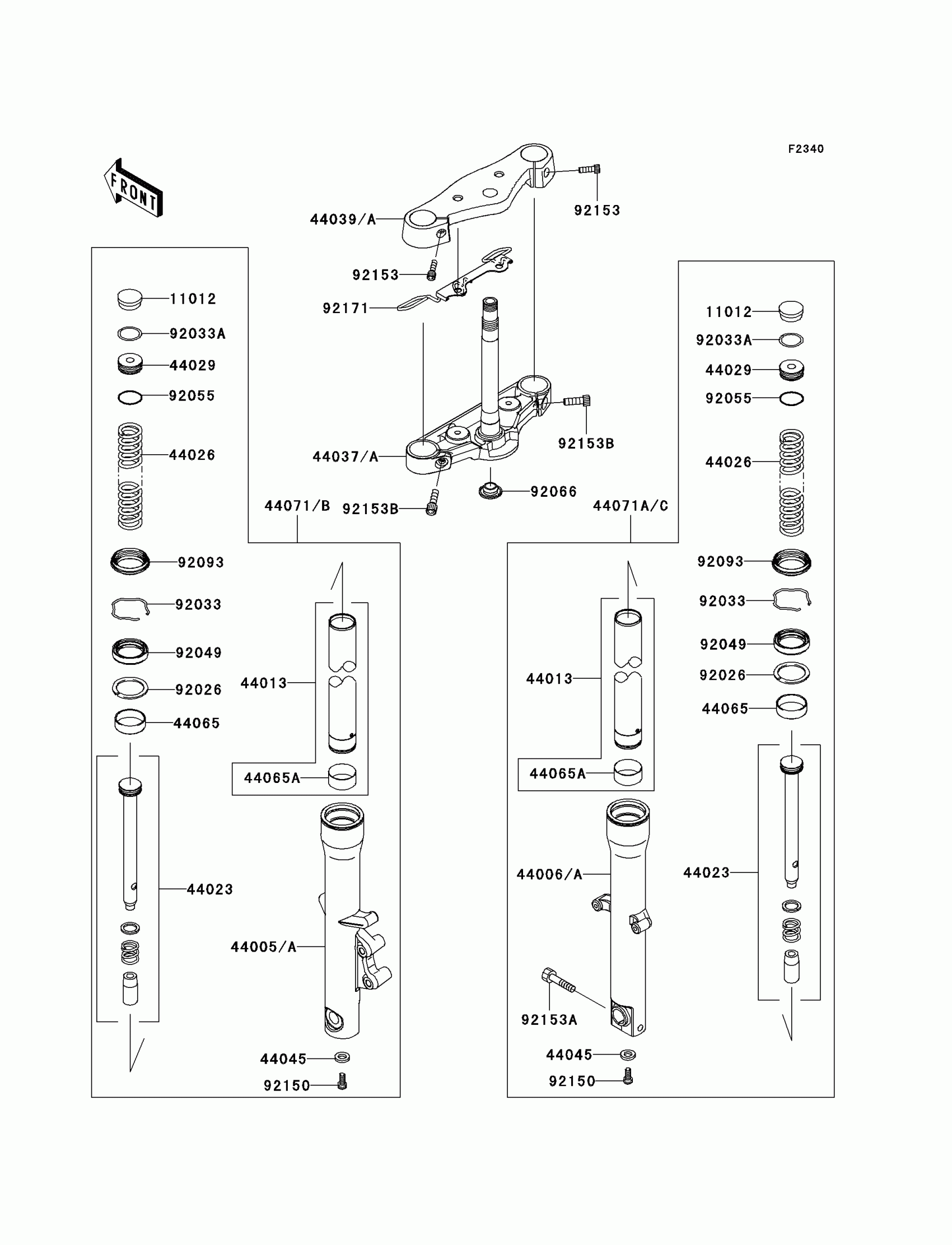

Kawasaki Vulcan 900 Custom (European) Front Fork Diagram

Description

Price

11012

CAP,FORK TOP

11012-1618

$20.38

44005A

PIPE-LEFT FORK OUTER

44005-0076

$400.93

44006A

PIPE-RIGHT FORK OUTER

44006-0070

$382.61

44013

PIPE-FORK INNER

44013-0049

Unavailable

44023

CYLINDER-SET-FORK

44023-0042

Unavailable

44026

SPRING-FRONT FORK

44026-0101

$75.26

44029

SEAT-FORK SPRING

44029-0008

$29.62

44037A

HOLDER-FORK UNDER

44037-0098

$344.73

44039A

HOLDER-FORK UPPER

44039-0087

$324.45

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44065

BUSHING-FRONT FORK

44065-0019

$20.45

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1087

$26.61

44071B

DAMPER-ASSY,FORK,LH

44071-0588

Unavailable

44071C

DAMPER-ASSY,FORK,RH

44071-0589

$668.65

92026

SPACER,FORK

92026-0090

$19.42

92033

RING-SNAP

92033-1222

$4.88

92033A

RING-SNAP,SPRING SEAT

92033-1223

$5.10

92049

SEAL-OIL

92049-0058

$20.44

92055

RING-O,SPRING SEAT

92055-1363

$5.61

92066

PLUG

92066-0078

$11.66

92093

SEAL,DUST

92093-0035

$20.73

92150

BOLT,SOCKET,8X18

92150-1432

$7.54

92153

BOLT,SOCKET,8X30

92153-0500

$10.44

92153A

BOLT

92153-0533

Unavailable

92153B

BOLT,SOCKET,10X25

92153-1376

$4.14

92171

CLAMP

92171-0580

$53.36
