Frame Fittings

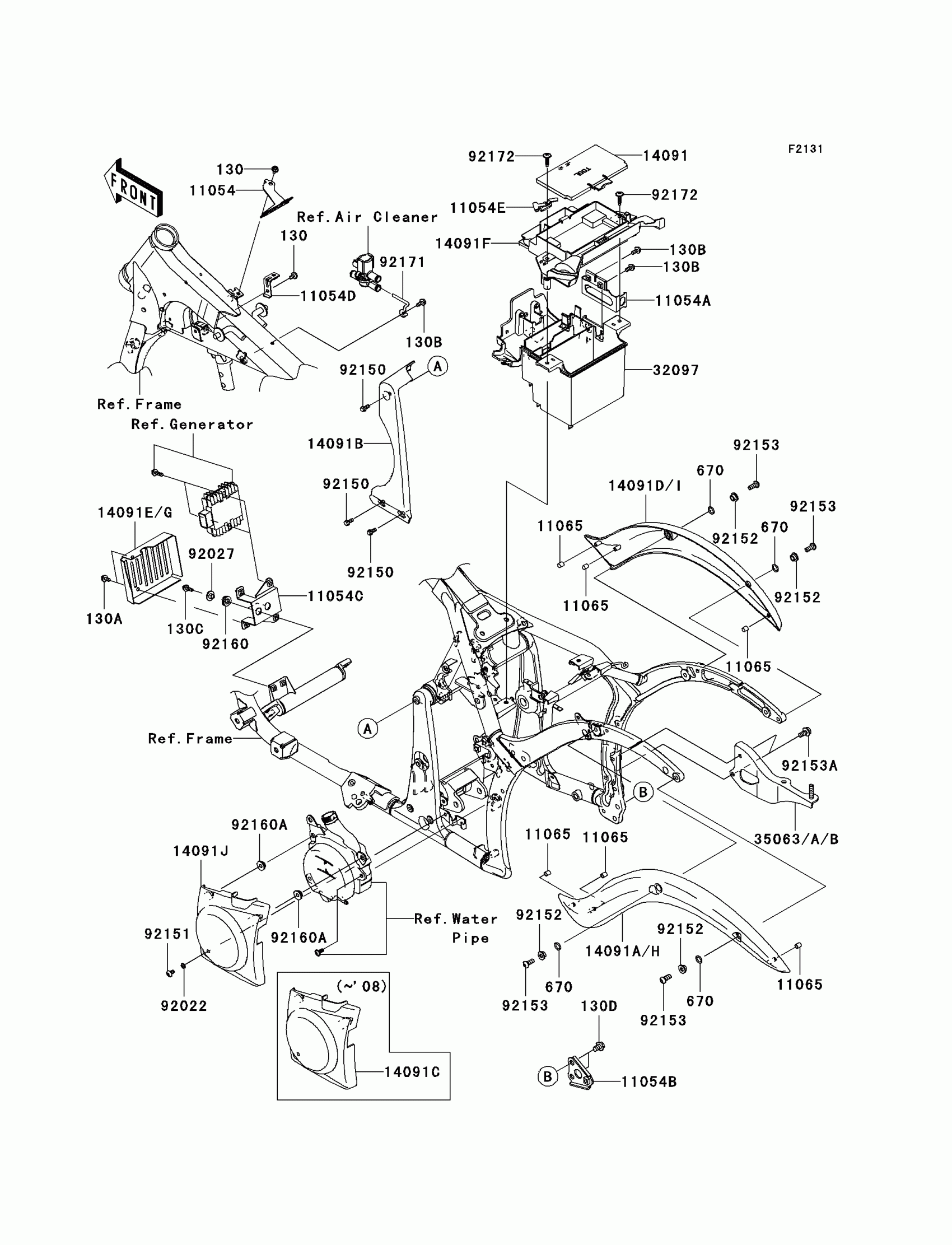

Kawasaki Vulcan 900 Custom (European) Frame Fittings Diagram
#
Description
Price
130
BOLT-FLANGED,6X10
130BB0610
$2.49
130A
BOLT-FLANGED,6X12
130BB0612
$2.34
130B
BOLT-FLANGED,6X14
130BB0614
$2.49
130C
BOLT-FLANGED,6X20
130BB0620
$0.46
130D
BOLT-FLANGED,10X14
130BB1014
$2.49
670
O RING,12MM
670B2012
$3.23
11054
BRACKET,FRONT COUPLER
11054-0119
$27.22
11054A
BRACKET,RELAY BOX
11054-0120
$18.57
11054B
BRACKET,MUFFLER
11054-0122
$10.30
11054C
BRACKET,REGULATOR
11054-0124
$22.01
11054D
BRACKET,BOOST SENSOR
11054-0736
$7.75
11054E
BRACKET,HELMET LOCK
11054-0738
$20.37
11065
CAP
11065-0156
$2.13
14091
COVER,TOOL CASE
14091-0520
$7.69
14091B
COVER,PIVOT
14091-0526
$11.82
14091F
COVER,BATTERY CASE&TOOL CASE
14091-0733
$26.91
14091G
COVER,REGULATOR
14091-0836
$20.83
14091H
COVER,FENDER,LH
14091-1728
$82.12
14091I
COVER,FENDER,RH
14091-1729
$82.12
14091J
COVER,RESERVOIR TANK
14091-1772
$64.82
32097
CASE-BATTERY
32097-0021
$53.44
35063B
STAY,MUFFLER,F.M.GRAY
35063-0342-26M
$102.11
92022
WASHER-PLAIN
92022-183
$3.92
92027
COLLAR,L=7.4
92027-1848
$4.69
92150
BOLT,FLANGED,6X14
92150-1689
$3.94
92151
BOLT,SOCKET,6X12
92151-1940
$3.74
92152
COLLAR
92152-0381
$5.65
92153
BOLT,SOCKET,8X20
92153-0912
$2.61
92153A
BOLT,FLANGED,8X20
92153-1704
$2.97
92160
DAMPER
92160-1278
$4.39
92160A
DAMPER
92160-1613
$3.74
92171
CLAMP
92171-0600
$7.75
92172
SCREW,6X26
92172-0137
$4.69
