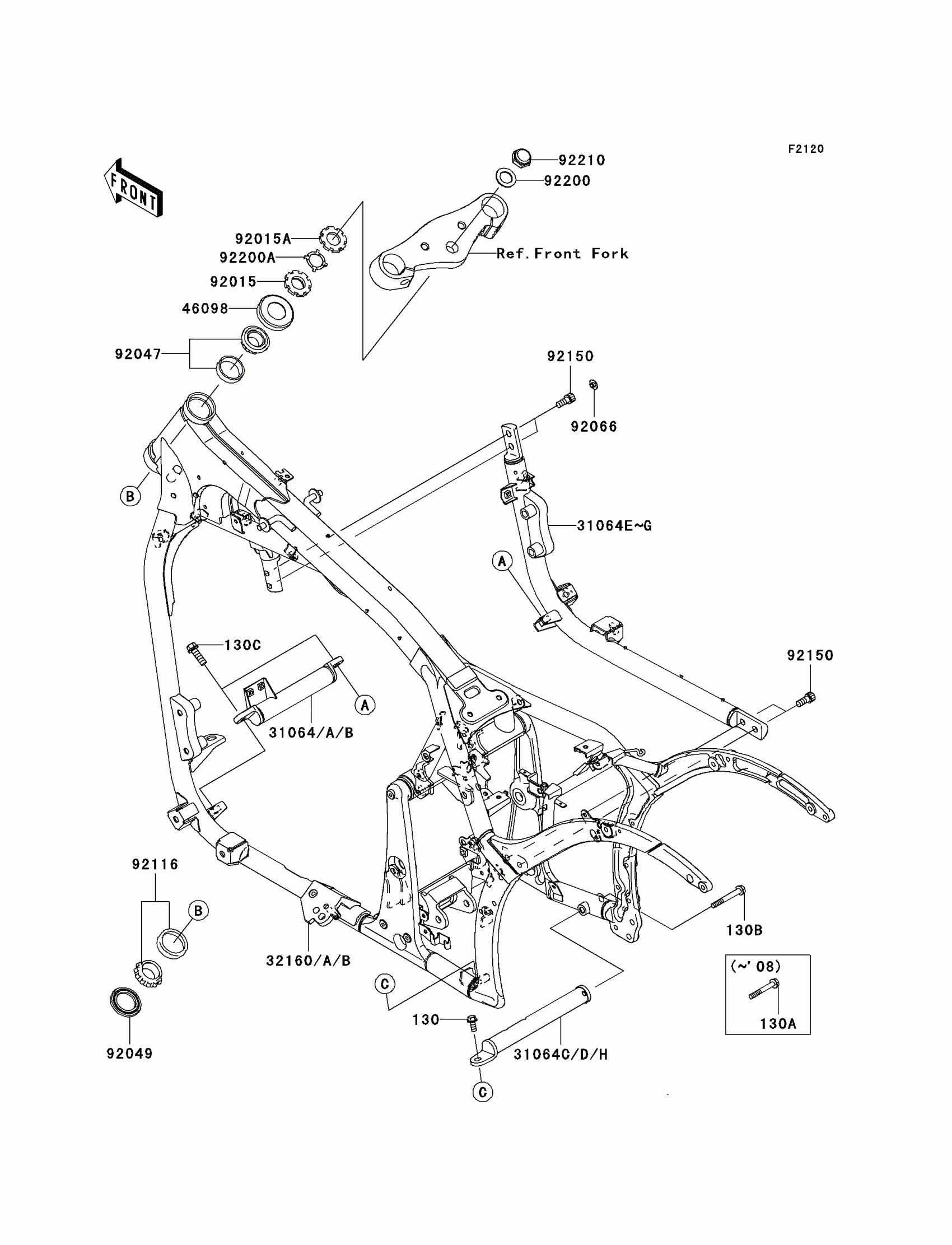

Kawasaki Vulcan 900 Custom (European) Frame Diagram

Description

Price

130

BOLT-FLANGED,8X18

130BB0818

$1.71

130B

BOLT-FLANGED,8X65

130BB0865

$5.14

130C

BOLT-FLANGED,10X25

130BB1025

$5.25

31064B

PIPE-COMP,FRONT CROSS,F.M.GRAY

31064-0047-26M

$118.47

31064G

PIPE-COMP,DOWNTUBE,RH,F.M.GRAY

31064-0097-26M

$354.94

31064H

PIPE-COMP,REAR CROSS,F.M.GRAY

31064-0183-26M

$81.82

32160B

FRAME-COMP,F.M.GRAY

32160-0395-26M

$2,915.35

46098

CAP,STEERING STEM

46098-017

$6.16

92015

NUT,25MM,T=10

92015-1377

$27.29

92015A

NUT,25MM,T=6

92015-1378

$20.96

92047

RACE,ROLLER,32005JR RS

92047-017

$43.75

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

$9.28

92066

PLUG

92066-1562

$9.24

92116

BEARING-ROLLER,HR320/28XJ

92116-1009

$36.32

92150

BOLT,SOCKET,10X23

92150-1942

$7.34

92200

WASHER,22.5X36X2.3

92200-0270

$3.90

92200A

WASHER,CLAW,25.5X34X0.6

92200-0353

$3.90

92210

NUT,CAP,22MM

92210-0263

$22.01
